E9000 Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	PDS
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

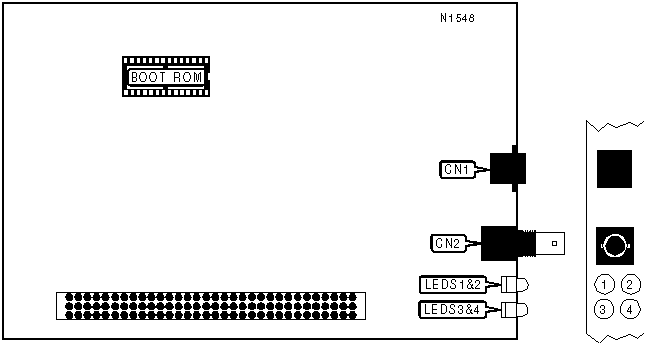

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	RG-58A/U 50ohm coaxial port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED2	Red	Blinking	Collision is detected on network
LED2	Red	Off	Collision is not detected on network
LED3	Yellow	Blinking	Data is being received
LED3	Yellow	Off	Data is not being received
LED4	Green	On	Network connection is good
LED4	Green	Off	Network connection is broken
