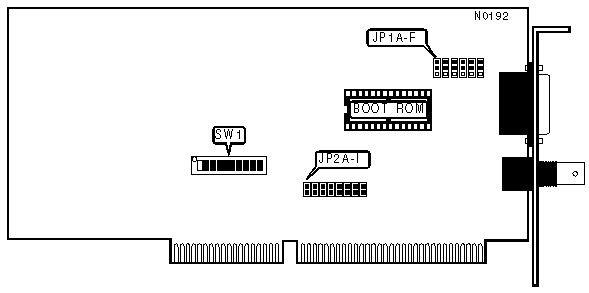

PCN-006 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG58A/U 50ohm coaxial DIX transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5
	200h	Off	On	On	On	On
	220h	Off	On	On	On	Off
	240h	Off	On	On	Off	On
	260h	Off	On	On	Off	Off
	280h	Off	On	Off	On	On
	2A0h	Off	On	Off	On	Off
	2C0h	Off	On	Off	Off	On
	2E0h	Off	On	Off	Off	Off
»	300h	Off	Off	On	On	On
	320h	Off	Off	On	On	Off
	340h	Off	Off	On	Off	On
	360h	Off	Off	On	Off	Off
	380h	Off	Off	Off	On	On
	3A0h	Off	Off	Off	On	Off
	3C0h	Off	Off	Off	Off	On
	3E0h	Off	Off	Off	Off	Off

BOOT ROM
Setting		SW1/6
»	Disabled	Off
	Enabled	On

BOOT ROM ADDRESS
Address		SW1/7	SW1/8	SW1/9	SW1/10
	C8000h	On	On	Off	On
	CC000h	On	On	Off	Off
	D0000h	On	Off	On	On
	D4000h	On	Off	On	Off
	D8000h	On	Off	Off	On
»	DC000h	On	Off	Off	Off
	E0000h	Off	On	On	On

CABLE TYPE
Type		JP1A - JP1F
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 Closed
	DIX transceiver via DB-15 port	Pins 2 & 3 Closed

INTERRUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D
	2	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

DMA CHANNEL
Channel		JP1F	JP1F	JP1H	JP1I
»	DMA5	Closed	Open	Closed	Open
	DMA6	Open	Closed	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP2E	Open
