AT-MX10, AT-MX10S Network Card Settings and Configuration
ALLIED TELESYN, INC.
AT-MX10, AT-MX10S
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | RG-58A/U connector |
Data Bus | External |

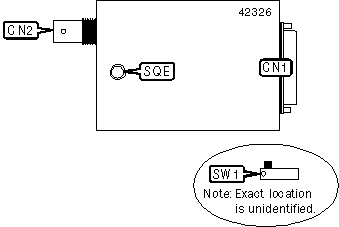

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | RG-58A/U connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | SQE test function disabled | SW1 | Off |
SQE test function enabled | SW1 | On | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
SQE | Amber | On | Signal Quality Error test function is enabled |
SQE | Green | On | Signal Quality Error test function is disabled |
MISCELLANEOUS TECHNICAL NOTES |
AT-MX10S is the slim-line version and contains a connector extension for tight installation |
