AT-MC12T Network Card Settings and Configuration
ALLIED TELESYN, INC.
AT-MC12T
Device Type | Universal Converter |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | External |

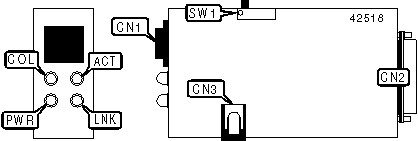

CONNECTIONS | |||
Function | Label | Function | Label |
UTP connector (RJ-45) | CN1 | DC power | CN3 |
AUI transceiver via DB-15 (female) | CN2 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | MDI-X pinout configuration | SW1 | On |
MDI pinout configuration | SW1 | Off | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
ACT | Green | On | Data is being transmitted/received |
ACT | Green | Off | Data is not being transmitted/received |
COL | Yellow | On | Collision detected on network |
COL | Yellow | Off | No collision detected on network |
LNK | Green | On | Network connection is good |
LNK | Green | Off | Network connection is broken |
PWR | Green | On | Power is on |
PWR | Green | Off | Power is off |
