ARC 100ST Network Card Settings and Configuration
ADDTRON TECHNOLOGY COMPANY LTD.

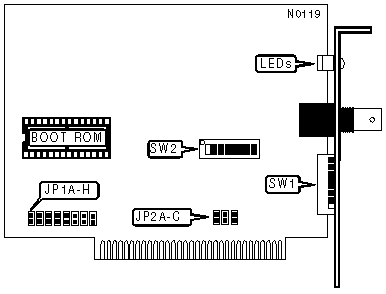

ARC 100ST
NIC Type | ARCnet |
Transfer Rate | 2.5Mbps |
Data Bus | 8-bit ISA |
Topology | Star |
Wiring Type | RG-62A/U 93ohm coaxial |
Boot ROM | Available |
NODE ADDRESS | ||||||||
Node | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
0 | - | - | - | - | - | - | - | - |
1 | Off | On | On | On | On | On | On | On |
2 | On | Off | On | On | On | On | On | On |
3 | Off | Off | On | On | On | On | On | On |
4 | On | On | Off | On | On | On | On | On |
251 | Off | Off | On | Off | Off | Off | Off | Off |
252 | On | On | Off | Off | Off | Off | Off | Off |
253 | Off | On | Off | Off | Off | Off | Off | Off |
254 | On | Off | Off | Off | Off | Off | Off | Off |
255 | Off | Off | Off | Off | Off | Off | Off | Off |
Note:Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1) | ||||||||
BOOT ROM | ||
Mode | JP1A | |
» | Disable | Open |
| Enable | Closed |
CABLE LENGTH AND RESPONSE/RECONFIGURATION TIMEOUTS | |||||
Cable Length | Response Time | Reconfiguration | JP1B | JP1C | |
» | < 20,000 feet | 74.7µs | 840ms | Open | Open |
| > 20,000 feet | 283.4µs | 1680ms | Open | Closed |
| > 20,000 feet | 561.8µs | 1680ms | Closed | Open |
| > 20,000 feet | 1118.6µs | 1680ms | Closed | Closed |
Note: All NICs on the network must have this option set the same. | |||||
INTERRUPT REQUEST | ||||||
IRQ | JP1D | JP1E | JP1F | JP1G | JP1H | |
» | 2/9 | Closed | Open | Open | Open | Open |
| 3 | Open | Closed | Open | Open | Open |
| 4 | Open | Open | Closed | Open | Open |
| 5 | Open | Open | Open | Closed | Open |
| 7 | Open | Open | Open | Open | Closed |
FACTORY CONFIGURED SETTINGS - DO NOT ALTER | |
Jumper | Setting |
JP2A | Open |
JP2B | Closed |
JP2C | Open |
I/O BASE ADDRESS | ||||
Address | SW2/6 | SW2/7 | SW2/8 | |
» | 2E0-2EFh | On | Off | On |
| 260-26Fh | On | On | On |
| 290-29Fh | Off | On | On |
| 2F0-2FFh | Off | Off | On |
| 300-30Fh | On | On | Off |
| 350-35Fh | Off | On | Off |
| 380-38Fh | On | Off | Off |
| 3E0-3EFh | Off | Off | Off |
DIAGNOSTIC LED(S) | ||
Color | Status | Condition |
Green | On | Network connection is good |
Green | Off | Network connection is broken |
Red | On | Data is being transmitted/received. |
Red | Off | Data is not being transmitted/received. |
BASE MEMORY ADDRESS & BOOT ROM ADDRESS | |||||||
Base Address | Boot ROM Address | SW2/1 | SW2/2 | SW2/3 | SW2/4 | SW2/5 | |
» | D0000-D07FFh | D2000-D3FFFh | Closed | Closed | Open | Open | Closed |
| C0000-C07FFh | C2000-C3FFFh | Closed | Closed | Closed | Closed | Closed |
| C0800-C0FFFh | C2000-C3FFFh | Open | Closed | Closed | Closed | Closed |
| C1000-C17FFh | C2000-C3FFFh | Closed | Open | Closed | Closed | Closed |
| C1800-C1FFFh | C2000-C3FFFh | Open | Open | Closed | Closed | Closed |
| C4000-C47FFh | C6000-C7FFFh | Closed | Closed | Open | Closed | Closed |
| C4800-C4FFFh | C6000-C7FFFh | Open | Closed | Open | Closed | Closed |
| C5000-C57FFh | C6000-C7FFFh | Closed | Open | Open | Closed | Closed |
| C5800-C5FFFh | C6000-C7FFFh | Open | Open | Open | Closed | Closed |
| CC000-CC7FFh | CE000-CFFFFh | Closed | Closed | Closed | Open | Closed |
| CC800-CCFFFh | CE000-CFFFFh | Open | Closed | Closed | Open | Closed |
| CD000-CD7FFh | CE000-CFFFFh | Closed | Open | Closed | Open | Closed |
| CD800-CDFFFh | CE000-CFFFFh | Open | Open | Closed | Open | Closed |
| D0800-D0FFFh | D2000-D3FFFh | Open | Closed | Open | Open | Closed |
| D1000-D17FFh | D2000-D3FFFh | Closed | Open | Open | Open | Closed |
| D1800-D1FFFh | D2000-D3FFFh | Open | Open | Open | Open | Closed |
| D4000-D47FFh | D6000-D7FFFh | Closed | Closed | Closed | Closed | Open |
| D4800-D4FFFh | D6000-D7FFFh | Open | Closed | Closed | Closed | Open |
| D5000-D57FFh | D6000-D7FFFh | Closed | Open | Closed | Closed | Open |
| D5800 D5FFFh | D6000-D7FFFh | Open | Open | Closed | Closed | Open |
| D8000-D87FFh | DA000-DBFFFh | Closed | Closed | Open | Closed | Open |
| D8800-D8FFFh | DA000-DBFFFh | Open | Closed | Open | Closed | Open |
| D9000-D97FFh | DA000-DBFFFh | Closed | Open | Open | Closed | Open |
| D9800-D9FFFh | DA000-DBFFFh | Open | Open | Open | Closed | Open |
| DC000-DC7FFh | DE000-DFFFFh | Closed | Closed | Closed | Open | Open |
| DC800-DCFFFh | DE000-DFFFFh | Open | Closed | Closed | Open | Open |
| DD000-DD7FFh | DE000-DFFFFh | Closed | Open | Closed | Open | Open |
| DD800-DDFFFh | DE000-DFFFFh | Open | Open | Closed | Open | Open |
| E0000-E07FFh | E2000-E3FFFh | Closed | Closed | Open | Open | Open |
| E0800-E0FFFh | E2000-E3FFFh | Open | Closed | Open | Open | Open |
| E1000-E17FFh | E2000-E3FFFh | Closed | Open | Open | Open | Open |
| E1800-E1FFFh | E2000-E3FFFh | Open | Open | Open | Open | Open |
