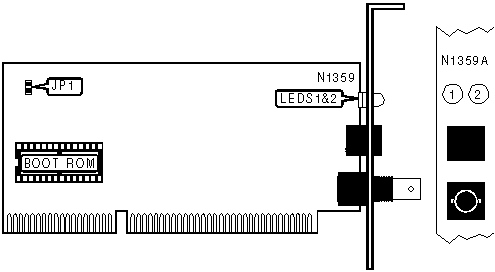

AE-200PNP Network Card Settings and Configuration

ADDTRON TECHNOLOGY CO., LTD.

AE-200PNP

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
8/16-bit ISA
Topology
Linear Bus/Star
Wiring Type
Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM
Available

PLUG AND PLAY MODE CONFIGURATION
Mode
JP1
Disabled
Open
Enabled
Closed

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Yellow
On
10Base-T network connection is good
LED1
Yellow
Off
10Base-T network connection is broken
LED2
Green
Blinking
Data is being transmitted/received
LED2
Green
Off
Data is not being transmitted/received
