S1590 Motherboard Settings and Configuration

TYAN COMPUTER CORPORATION

S1590

Device Type
Mainboard
Processor
CX 6X86/IBM 6X86/CX 686MX/IBM 6X86MX/CX MII/IDT C6/
AM K5/ AM K6/Pentium/Pentium MMX
Processor Speed
75/90/100/120/133/150/166/180/200/225/233/266/300MHz
Chip Set
VIA MVP3
Maximum Onboard Memory
768MB (EDO & SDRAM supported)
Cache
1024KB
BIOS
Award
Dimensions
254mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, AGP slot, wake on LAN connector

CONNECTIONS
Purpose
Location
Purpose
Location
AGP slot
AGP
Soft off power supply
J5/pins 1 & 2
ATX power connector
ATX
Green PC connector
J5/pins 3 & 4
IDE interface 1
CN1
IR connector
J5/pins 6 – 11
IDE interface 2
CN2
IDE interface LED
J5/pins 13 & 14
Parallel port
CN3
Power LED
J5/pins 18 & 20
Serial port 2
CN4
Reset switch
J5/pins 22 & 23
Serial port 1
CN5
Speaker
J5/pins 24 - 27
Floppy drive interface
CN6
Power LED & keylock
J8
PS/2 mouse interface
CN7
Chassis fan power
J10
Chassis fan power
J1
32-bit PCI slots
PC1 – PC4
Wake on LAN connector
J3
USB connector
USB
Chassis fan power
J4

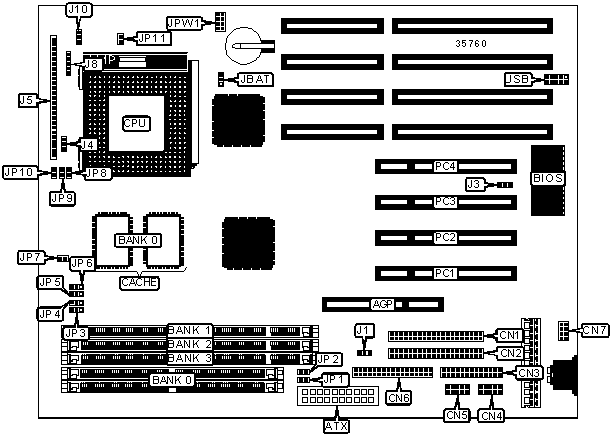

USER CONFIGURABLE SETTINGS
Function
Label
Position

Clock speed select CPU clock
JP6
Pins 1 & 2 closed

Clock speed select AGP clock
JP6
Pins 2 & 3 closed

Power supply type select AT
JP7
Closed

Power supply type select ATX
JP7
Open
»
CMOS memory normal operation
JBAT
Pins 1 & 2 closed

CMOS memory clear
JBAT
Pins 2 & 3 closed

SIMM CONFIGURATION
Size
Bank 0
8MB
(2) 1M x 36
16MB
(2) 2M x 36
32MB
(2) 4M x 36
64MB
(2) 8M x 36
128MB
(2) 16M x 36
256MB
(2) 32M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(1) 1M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
16MB
(1) 2M x 64
None
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 2M x 64
(1) 2M x 64
None
32MB
(1) 4M x 64
None
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64
None
64MB
(1) 8M x 64
None
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64
None
128MB
(1) 16M x 64
None
None
164MB
(1) 16M x 64
(1) 1M x 64
None
144MB
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
None
160MB
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
None
192MB
(1) 16M x 64
(1) 4M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 8M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 16M x 64
None
256MB
(1) 32M x 64
None
None
264MB
(1) 32M x 64
(1) 1M x 64
None
272MB
(1) 32M x 64
(1) 1M x 64
(1) 1M x 64
272MB
(1) 32M x 64
(1) 2M x 64
None
288MB
(1) 32M x 64
(1) 4M x 64
None
320MB
(1) 32M x 64
(1) 4M x 64
(1) 4M x 64
320MB
(1) 32M x 64
(1) 8M x 64
None
384MB
(1) 32M x 64
(1) 8M x 64
(1) 8M x 64
384MB
(1) 32M x 64
(1) 16M x 64
None
384MB
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 32M x 64
None
768MB
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
Note: Board accepts SDRAM memory.

DIMM VOLTAGE CONFIGURATION
Voltage
JP1
JP2
3v
Open
Closed
5v
Closed
Open

CACHE CONFIGURATION
Size
Bank 0
1MB
(2) 128 x 32

CPU SPEED SELECTION (CX 6X86)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2x
1 & 2
2 & 3
2 & 3
N/A
N/A
N/A
200MHz
75MHz
2x
1 & 2
1 & 2
2 & 3
N/A
N/A
N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2x
1 & 2
2 & 3
2 & 3
N/A
N/A
N/A
200MHz
75MHz
2x
1 & 2
1 & 2
2 & 3
N/A
N/A
N/A

CPU SPEED SELECTION (CX 6X86MX)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2x
1 & 2
2 & 3
2 & 3
N/A
N/A
N/A
200MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
200MHz
75MHz
2x
1 & 2
1 & 2
2 & 3
N/A
N/A
N/A
233MHz
75MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
233MHz
83MHz
2x
1 & 2
2 & 3
1 & 2
N/A
N/A
N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2x
1 & 2
2 & 3
2 & 3
N/A
N/A
N/A
200MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
200MHz
75MHz
2x
1 & 2
1 & 2
2 & 3
N/A
N/A
N/A
233MHz
75MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
233MHz
83MHz
2x
1 & 2
2 & 3
1 & 2
N/A
N/A
N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX MII)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
300MHz
66MHz
3.5x
1 & 2
2 & 3
2 & 3
Open
Open
Open
300MHz
75MHz
3x
1 & 2
1 & 2
2 & 3
Closed
Open
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM MII)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
300MHz
66MHz
3.5x
1 & 2
2 & 3
2 & 3
Open
Open
Open
300MHz
75MHz
3x
1 & 2
1 & 2
2 & 3
Closed
Open
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IDT C6)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
200MHz
66MHz
3x
1 & 2
2 & 3
2 & 3
Closed
Open
Open
225MHz
75MHz
3x
1 & 2
1 & 2
2 & 3
Closed
Open
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
150MHz
60MHz
2.5x
2 & 3
2 & 3
2 & 3
Closed
Closed
Open
166MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
200MHz
66MHz
3x
1 & 2
2 & 3
2 & 3
Closed
Open
Open
233MHz
66MHz
3.5x
1 & 2
2 & 3
2 & 3
Open
Open
Open
266MHz
66MHz
4x
1 & 2
2 & 3
2 & 3
Open
Closed
Closed
300MHz
66MHz
4.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Closed
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6-2)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
266MHz
66MHz
4x
1 & 2
2 & 3
2 & 3
Open
Closed
Closed
300MHz
100MHz
3x
1 & 2
1 & 2
1 & 2
Closed
Open
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
150MHz
60MHz
2.5x
2 & 3
2 & 3
2 & 3
Closed
Closed
Open
166MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
200MHz
66MHz
3x
1 & 2
2 & 3
2 & 3
Closed
Open
Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed
Clock speed
Multiplier
JP3
JP4
JP5
JP8
JP9
JP10
166MHz
66MHz
2.5x
1 & 2
2 & 3
2 & 3
Closed
Closed
Open
200MHz
66MHz
3x
1 & 2
2 & 3
2 & 3
Closed
Open
Open
233MHz
66MHz
3.5x
1 & 2
2 & 3
2 & 3
Open
Open
Open
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type
JP11
Single voltage CPUs
Closed
Dual voltage CPUs
Open

CPU VOLTAGE SELECTION
Voltage
JPW1/pins 1 & 2
JPW1/pins 3 & 4
JPW1/pins 5 & 6
JPW1/pins 7 & 8
2.0v
Open
Open
Open
Open
2.1v
Closed
Open
Open
Open
2.2v
Open
Closed
Open
Open
2.7v
Closed
Closed
Closed
Open
2.8v
Open
Open
Open
Closed
2.9v
Closed
Open
Open
Closed
3.2v
Open
Open
Closed
Closed
3.3v
Closed
Open
Closed
Closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

S1590 Motherboard Settings and Configuration

Search

My Books

Discover

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 686MX/IBM 6X86MX/CX MII/IDT C6/ AM K5/ AM K6/Pentium/Pentium MMX
Processor Speed	75/90/100/120/133/150/166/180/200/225/233/266/300MHz
Chip Set	VIA MVP3
Maximum Onboard Memory	768MB (EDO & SDRAM supported)
Cache	1024KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, AGP slot, wake on LAN connector

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Soft off power supply	J5/pins 1 & 2
ATX power connector	ATX	Green PC connector	J5/pins 3 & 4
IDE interface 1	CN1	IR connector	J5/pins 6 – 11
IDE interface 2	CN2	IDE interface LED	J5/pins 13 & 14
Parallel port	CN3	Power LED	J5/pins 18 & 20
Serial port 2	CN4	Reset switch	J5/pins 22 & 23
Serial port 1	CN5	Speaker	J5/pins 24 - 27
Floppy drive interface	CN6	Power LED & keylock	J8
PS/2 mouse interface	CN7	Chassis fan power	J10
Chassis fan power	J1	32-bit PCI slots	PC1 – PC4
Wake on LAN connector	J3	USB connector	USB
Chassis fan power	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Clock speed select CPU clock	JP6	Pins 1 & 2 closed
	Clock speed select AGP clock	JP6	Pins 2 & 3 closed
	Power supply type select AT	JP7	Closed
	Power supply type select ATX	JP7	Open
»	CMOS memory normal operation	JBAT	Pins 1 & 2 closed
	CMOS memory clear	JBAT	Pins 2 & 3 closed

SIMM CONFIGURATION
Size	Bank 0
8MB	(2) 1M x 36
16MB	(2) 2M x 36
32MB	(2) 4M x 36
64MB	(2) 8M x 36
128MB	(2) 16M x 36
256MB	(2) 32M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(1) 1M x 64	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None
16MB	(1) 2M x 64	None	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
32MB	(1) 2M x 64	(1) 2M x 64	None
32MB	(1) 4M x 64	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None
64MB	(1) 8M x 64	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None
128MB	(1) 16M x 64	None	None
164MB	(1) 16M x 64	(1) 1M x 64	None
144MB	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64	None
160MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None
192MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None
256MB	(1) 32M x 64	None	None
264MB	(1) 32M x 64	(1) 1M x 64	None
272MB	(1) 32M x 64	(1) 1M x 64	(1) 1M x 64
272MB	(1) 32M x 64	(1) 2M x 64	None
288MB	(1) 32M x 64	(1) 4M x 64	None
320MB	(1) 32M x 64	(1) 4M x 64	(1) 4M x 64
320MB	(1) 32M x 64	(1) 8M x 64	None
384MB	(1) 32M x 64	(1) 8M x 64	(1) 8M x 64
384MB	(1) 32M x 64	(1) 16M x 64	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
512MB	(1) 32M x 64	(1) 16M x 64	(1) 16M x 64
512MB	(1) 32M x 64	(1) 32M x 64	None
768MB	(1) 32M x 64	(1) 32M x 64	(1) 32M x 64
Note: Board accepts SDRAM memory.

DIMM VOLTAGE CONFIGURATION
Voltage	JP1	JP2
3v	Open	Closed
5v	Closed	Open

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2x	1 & 2	2 & 3	2 & 3	N/A	N/A	N/A
200MHz	75MHz	2x	1 & 2	1 & 2	2 & 3	N/A	N/A	N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2x	1 & 2	2 & 3	2 & 3	N/A	N/A	N/A
200MHz	75MHz	2x	1 & 2	1 & 2	2 & 3	N/A	N/A	N/A

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2x	1 & 2	2 & 3	2 & 3	N/A	N/A	N/A
200MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
200MHz	75MHz	2x	1 & 2	1 & 2	2 & 3	N/A	N/A	N/A
233MHz	75MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
233MHz	83MHz	2x	1 & 2	2 & 3	1 & 2	N/A	N/A	N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2x	1 & 2	2 & 3	2 & 3	N/A	N/A	N/A
200MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
200MHz	75MHz	2x	1 & 2	1 & 2	2 & 3	N/A	N/A	N/A
233MHz	75MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
233MHz	83MHz	2x	1 & 2	2 & 3	1 & 2	N/A	N/A	N/A
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX MII)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
300MHz	66MHz	3.5x	1 & 2	2 & 3	2 & 3	Open	Open	Open
300MHz	75MHz	3x	1 & 2	1 & 2	2 & 3	Closed	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM MII)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
300MHz	66MHz	3.5x	1 & 2	2 & 3	2 & 3	Open	Open	Open
300MHz	75MHz	3x	1 & 2	1 & 2	2 & 3	Closed	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IDT C6)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
200MHz	66MHz	3x	1 & 2	2 & 3	2 & 3	Closed	Open	Open
225MHz	75MHz	3x	1 & 2	1 & 2	2 & 3	Closed	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
150MHz	60MHz	2.5x	2 & 3	2 & 3	2 & 3	Closed	Closed	Open
166MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
200MHz	66MHz	3x	1 & 2	2 & 3	2 & 3	Closed	Open	Open
233MHz	66MHz	3.5x	1 & 2	2 & 3	2 & 3	Open	Open	Open
266MHz	66MHz	4x	1 & 2	2 & 3	2 & 3	Open	Closed	Closed
300MHz	66MHz	4.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Closed
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6-2)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
266MHz	66MHz	4x	1 & 2	2 & 3	2 & 3	Open	Closed	Closed
300MHz	100MHz	3x	1 & 2	1 & 2	1 & 2	Closed	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
150MHz	60MHz	2.5x	2 & 3	2 & 3	2 & 3	Closed	Closed	Open
166MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
200MHz	66MHz	3x	1 & 2	2 & 3	2 & 3	Closed	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP3	JP4	JP5	JP8	JP9	JP10
166MHz	66MHz	2.5x	1 & 2	2 & 3	2 & 3	Closed	Closed	Open
200MHz	66MHz	3x	1 & 2	2 & 3	2 & 3	Closed	Open	Open
233MHz	66MHz	3.5x	1 & 2	2 & 3	2 & 3	Open	Open	Open
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP11
Single voltage CPUs	Closed
Dual voltage CPUs	Open

CPU VOLTAGE SELECTION
Voltage	JPW1/pins 1 & 2	JPW1/pins 3 & 4	JPW1/pins 5 & 6	JPW1/pins 7 & 8
2.0v	Open	Open	Open	Open
2.1v	Closed	Open	Open	Open
2.2v	Open	Closed	Open	Open
2.7v	Closed	Closed	Closed	Open
2.8v	Open	Open	Open	Closed
2.9v	Closed	Open	Open	Closed
3.2v	Open	Open	Closed	Closed
3.3v	Closed	Open	Closed	Closed
