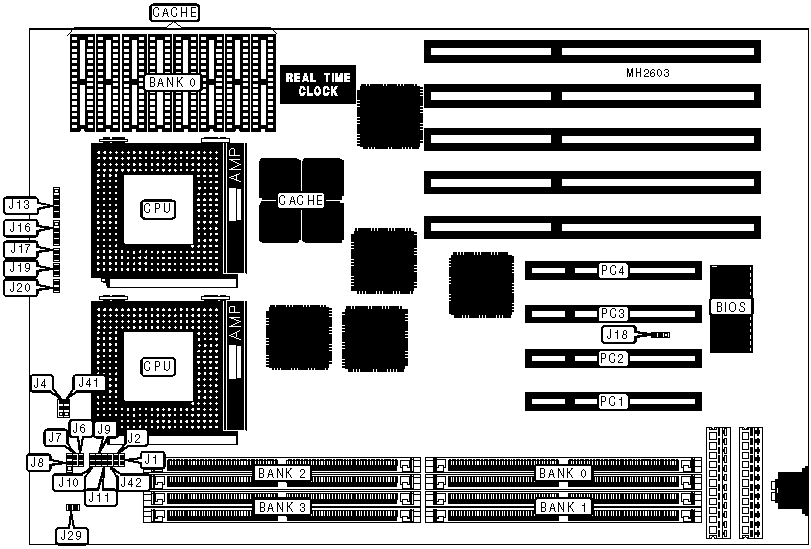

S1462 Motherboard Settings and Configuration

TYAN COMPUTER CORPORATION

S1462

Processor
Pentium
Processor Speed
75/90/100MHz
Chip Set
Unidentified
Max. Onboard DRAM
512MB
Cache
256/512KB
BIOS
AMI/Award
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Power LED & keylock
J13
Speaker
J19
Turbo switch
J16
Reset switch
J20
Turbo LED
J17
32-bit PCI slots
PC1 - PC4

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Factory configured - do not alter
J1
N/A
»
Factory configured - do not alter
J2
N/A
»
Factory configured - do not alter
J4
N/A
»
BIOS type select EPROM
J18
pins 2 & 3 closed

BIOS type select flash
J18
pins 1 & 2 closed

Power connector voltage select 5v
J29
Closed

Power connector voltage select 3.3v
J29
Open
»
Single CPU installed
J41
pins 1 & 2 closed

Dual CPU installed
J41
pins 2 & 3 closed
»
Factory configured - do not alter
J42
N/A

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
2MB
(2) 256K x 36
NONE
NONE
NONE
4MB
(2) 256K x 36
(2) 256K x 36
NONE
NONE
4MB
(2) 512K x 36
NONE
NONE
NONE
6MB
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
NONE
6MB
(2) 512K x 36
(2) 256K x 36
NONE
NONE
8MB
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
8MB
(2) 512K x 36
(2) 256K x 36
(2) 256K x 36
NONE
8MB
(2) 1M x 36
NONE
NONE
NONE
10MB
(2) 256K x 36
(2) 512K x 36
(2) 512K x 36
NONE
10MB
(2) 512K x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
10MB
(2) 1M x 36
(2) 256K x 36
NONE
NONE
12MB
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
NONE
12MB
(2) 1M x 36
(2) 256K x 36
(2) 256K x 36
NONE
14MB
(2) 256K x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
14MB
(2) 1M x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
16MB
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
16MB
(2) 1M x 36
(2) 512K x 36
(2) 512K x 36
NONE
16MB
(2) 2M x 36
NONE
NONE
NONE
18MB
(2) 256K x 36
(2) 1M x 36
(2) 1M x 36
NONE
18MB
(2) 2M x 36
(2) 256K x 36
NONE
NONE
20MB
(2) 512K x 36
(2) 1M x 36
(2) 1M x 36
NONE
20MB
(2) 1M x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
20MB
(2) 2M x 36
(2) 256K x 36
(2) 256K x 36
NONE
22MB
(2) 2M x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
NONE
24MB
(2) 2M x 36
(2) 512K x 36
(2) 512K x 36
NONE
26MB
(2) 256K x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
28MB
(2) 512K x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
28MB
(2) 2M x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
32MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 2M x 36
(2) 1M x 36
(2) 1M x 36
NONE

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
32MB
(2) 4M x 36
NONE
NONE
NONE
34MB
(2) 256K x 36
(2) 2M x 36
(2) 2M x 36
NONE
34MB
(2) 4M x 36
(2) 256K x 36
NONE
NONE
36MB
(2) 512K x 36
(2) 2M x 36
(2) 2M x 36
NONE
36MB
(2) 4M x 36
(2) 256K x 36
(2) 256K x 36
NONE
38MB
(2) 4M x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
40MB
(2) 1M x 36
(2) 2M x 36
(2) 2M x 36
NONE
40MB
(2) 2M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
40MB
(2) 4M x 36
(2) 512K x 36
(2) 512K x 36
NONE
44MB
(2) 4M x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
NONE
48MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
NONE
50MB
(2) 256K x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
52MB
(2) 512K x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
56MB
(2) 1M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
56MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
64MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 4M x 36
(2) 2M x 36
(2) 2M x 36
NONE
64MB
(2) 8M x 36
NONE
NONE
NONE
66MB
(2) 256K x 36
(2) 4M x 36
(2) 4M x 36
NONE
66MB
(2) 8M x 36
(2) 256K x 36
NONE
NONE
68MB
(2) 512K x 36
(2) 4M x 36
(2) 4M x 36
NONE
68MB
(2) 8M x 36
(2) 256K x 36
(2) 256K x 36
NONE
70MB
(2) 8M x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
72MB
(2) 1M x 36
(2) 4M x 36
(2) 4M x 36
NONE
72MB
(2) 8M x 36
(2) 512K x 36
(2) 512K x 36
NONE
76MB
(2) 8M x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
80MB
(2) 2M x 36
(2) 4M x 36
(2) 4M x 36
NONE
80MB
(2) 4M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
80MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
NONE
88MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
NONE
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36
NONE
98MB
(2) 256K x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
100MB
(2) 512K x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
104MB
(2) 1M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
112MB
(2) 2M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
112MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
128MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
NONE
128MB
(2) 16M x 36
NONE
NONE
NONE
130MB
(2) 256K x 36
(2) 8M x 36
(2) 8M x 36
NONE
130MB
(2) 16M x 36
(2) 256K x 36
NONE
NONE
132MB
(2) 512K x 36
(2) 8M x 36
(2) 8M x 36
NONE

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
132MB
(2) 16M x 36
(2) 256K x 36
(2) 256K x 36
NONE
134MB
(2) 16M x 36
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
136MB
(2) 1M x 36
(2) 8M x 36
(2) 8M x 36
NONE
136MB
(2) 16M x 36
(2) 512K x 36
(2) 512K x 36
NONE
140MB
(2) 16M x 36
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
144MB
(2) 2M x 36
(2) 8M x 36
(2) 8M x 36
NONE
144MB
(2) 16M x 36
(2) 1M x 36
(2) 1M x 36
NONE
152MB
(2) 16M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
160MB
(2) 4M x 36
(2) 8M x 36
(2) 8M x 36
NONE
160MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
160MB
(2) 16M x 36
(2) 2M x 36
(2) 2M x 36
NONE
176MB
(2) 16M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
NONE
192MB
(2) 16M x 36
(2) 4M x 36
(2) 4M x 36
NONE
194MB
(2) 256K x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
196MB
(2) 512K x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
200MB
(2) 1M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
208MB
(2) 2M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
224MB
(2) 4M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
224MB
(2) 16M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
256MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 8M x 36
(2) 8M x 36
NONE
258MB
(2) 256K x 36
(2) 16M x 36
(2) 16M x 36
NONE
260MB
(2) 512K x 36
(2) 16M x 36
(2) 16M x 36
NONE
264MB
(2) 1M x 36
(2) 16M x 36
(2) 16M x 36
NONE
272MB
(2) 2M x 36
(2) 16M x 36
(2) 16M x 36
NONE
288MB
(2) 4M x 36
(2) 16M x 36
(2) 16M x 36
NONE
320MB
(2) 8M x 36
(2) 16M x 36
(2) 16M x 36
NONE
320MB
(2) 16M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
384MB
(2) 256K x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
NONE
388MB
(2) 512K x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
392MB
(2) 1M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
400MB
(2) 2M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
416MB
(2) 4M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
448MB
(2) 8M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
512MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36

CACHE CONFIGURATION
Size
Bank 0
256KB
(8) 32K x 8
512KB
(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size
J6
J7
J8
256KB
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed
512KB
pins 1 & 2 closed
pins 1 & 2 closed
pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed
J9
J10
J11
75MHz
Closed
Closed
Open
90MHz
Closed
Open
Open
100MHz
Open
Open
Open

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

S1462 Motherboard Settings and Configuration

Search

My Books

Discover

Processor	Pentium
Processor Speed	75/90/100MHz
Chip Set	Unidentified
Max. Onboard DRAM	512MB
Cache	256/512KB
BIOS	AMI/Award
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J13	Speaker	J19
Turbo switch	J16	Reset switch	J20
Turbo LED	J17	32-bit PCI slots	PC1 - PC4

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	J1	N/A
»	Factory configured - do not alter	J2	N/A
»	Factory configured - do not alter	J4	N/A
»	BIOS type select EPROM	J18	pins 2 & 3 closed
	BIOS type select flash	J18	pins 1 & 2 closed
	Power connector voltage select 5v	J29	Closed
	Power connector voltage select 3.3v	J29	Open
»	Single CPU installed	J41	pins 1 & 2 closed
	Dual CPU installed	J41	pins 2 & 3 closed
»	Factory configured - do not alter	J42	N/A

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(2) 256K x 36	NONE	NONE	NONE
4MB	(2) 256K x 36	(2) 256K x 36	NONE	NONE
4MB	(2) 512K x 36	NONE	NONE	NONE
6MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	NONE
6MB	(2) 512K x 36	(2) 256K x 36	NONE	NONE
8MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
8MB	(2) 512K x 36	(2) 256K x 36	(2) 256K x 36	NONE
8MB	(2) 1M x 36	NONE	NONE	NONE
10MB	(2) 256K x 36	(2) 512K x 36	(2) 512K x 36	NONE
10MB	(2) 512K x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
10MB	(2) 1M x 36	(2) 256K x 36	NONE	NONE
12MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36	NONE
12MB	(2) 1M x 36	(2) 256K x 36	(2) 256K x 36	NONE
14MB	(2) 256K x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
14MB	(2) 1M x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
16MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
16MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36	NONE
16MB	(2) 2M x 36	NONE	NONE	NONE
18MB	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36	NONE
18MB	(2) 2M x 36	(2) 256K x 36	NONE	NONE
20MB	(2) 512K x 36	(2) 1M x 36	(2) 1M x 36	NONE
20MB	(2) 1M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
20MB	(2) 2M x 36	(2) 256K x 36	(2) 256K x 36	NONE
22MB	(2) 2M x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	NONE
24MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36	NONE
26MB	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
28MB	(2) 512K x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
28MB	(2) 2M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	NONE

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
32MB	(2) 4M x 36	NONE	NONE	NONE
34MB	(2) 256K x 36	(2) 2M x 36	(2) 2M x 36	NONE
34MB	(2) 4M x 36	(2) 256K x 36	NONE	NONE
36MB	(2) 512K x 36	(2) 2M x 36	(2) 2M x 36	NONE
36MB	(2) 4M x 36	(2) 256K x 36	(2) 256K x 36	NONE
38MB	(2) 4M x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
40MB	(2) 1M x 36	(2) 2M x 36	(2) 2M x 36	NONE
40MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
40MB	(2) 4M x 36	(2) 512K x 36	(2) 512K x 36	NONE
44MB	(2) 4M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	NONE
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	NONE
50MB	(2) 256K x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
52MB	(2) 512K x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
56MB	(2) 1M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
56MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
64MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	NONE
64MB	(2) 8M x 36	NONE	NONE	NONE
66MB	(2) 256K x 36	(2) 4M x 36	(2) 4M x 36	NONE
66MB	(2) 8M x 36	(2) 256K x 36	NONE	NONE
68MB	(2) 512K x 36	(2) 4M x 36	(2) 4M x 36	NONE
68MB	(2) 8M x 36	(2) 256K x 36	(2) 256K x 36	NONE
70MB	(2) 8M x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
72MB	(2) 1M x 36	(2) 4M x 36	(2) 4M x 36	NONE
72MB	(2) 8M x 36	(2) 512K x 36	(2) 512K x 36	NONE
76MB	(2) 8M x 36	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
80MB	(2) 2M x 36	(2) 4M x 36	(2) 4M x 36	NONE
80MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
80MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	NONE
88MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	NONE
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	NONE
98MB	(2) 256K x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
100MB	(2) 512K x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
104MB	(2) 1M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
112MB	(2) 2M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
112MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
128MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36	NONE
128MB	(2) 16M x 36	NONE	NONE	NONE
130MB	(2) 256K x 36	(2) 8M x 36	(2) 8M x 36	NONE
130MB	(2) 16M x 36	(2) 256K x 36	NONE	NONE
132MB	(2) 512K x 36	(2) 8M x 36	(2) 8M x 36	NONE

CACHE CONFIGURATION
Size	Bank 0
256KB	(8) 32K x 8
512KB	(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size	J6	J7	J8
256KB	pins 1 & 2 closed	pins 2 & 3 closed	pins 2 & 3 closed
512KB	pins 1 & 2 closed	pins 1 & 2 closed	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed	J9	J10	J11
75MHz	Closed	Closed	Open
90MHz	Closed	Open	Open
100MHz	Open	Open	Open
