S1452 REV. 1.0 Motherboard Settings and Configuration

TYAN COMPUTER CORPORATION

S1452 REV. 1.0

Processor
Pentium
Processor Speed
90/100MHz
Chip Set
Intel
Max. Onboard DRAM
192MB
Cache
256/512KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit PCI bus slots (4), 32-bit VESA local bus slots (2)
NPU Options
None

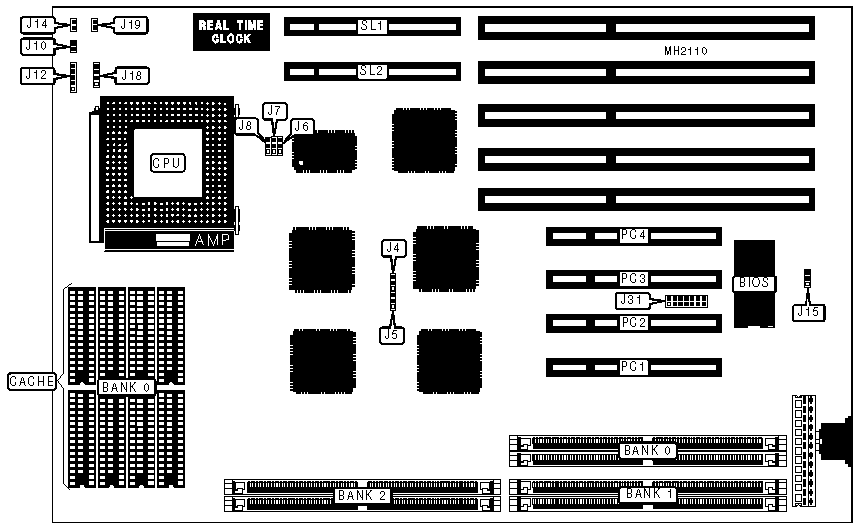

CONNECTIONS
Purpose
Location
Purpose
Location
Turbo LED
J10
Reset switch
J19
Power LED & keylock
J12
IRQ legacy connector
J31
Turbo switch
J14
32-bit PCI bus slots
PC1 - PC4
Speaker
J18
32-bit VESA Local bus slots
SL1 & SL2

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Flash BIOS voltage select 5 volt
J15
pins 2 & 3 closed

Flash BIOS voltage select 12 volt
J15
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
2MB
(2) 256K x 36
NONE
NONE
4MB
(2) 256K x 36
(2) 256K x 36
NONE
4MB
(2) 512K x 36
NONE
NONE
6MB
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
6MB
(2) 512K x 36
(2) 256K x 36
NONE
6MB
(2) 256K x 36
(2) 512K x 36
NONE
8MB
(2) 512K x 36
(2) 256K x 36
(2) 256K x 36
8MB
(2) 512K x 36
(2) 512K x 36
NONE
8MB
(2) 1M x 36
NONE
NONE
10MB
(2) 1M x 36
(2) 256K x 36
NONE
10MB
(2) 256K x 36
(2) 512K x 36
(2) 512K x 36
10MB
(2) 256K x 36
(2) 1M x 36
NONE
12MB
(2) 1M x 36
(2) 256K x 36
(2) 256K x 36
12MB
(2) 1M x 36
(2) 512K x 36
NONE
12MB
(2) 512K x 36
(2) 512K x 36
(2) 512K x 36
12MB
(2) 512K x 36
(2) 1M x 36
NONE
16MB
(2) 1M x 36
(2) 512K x 36
(2) 512K x 36
16MB
(2) 1M x 36
(2) 1M x 36
NONE
16MB
(2) 2M x 36
NONE
NONE
18MB
(2) 256K x 36
(2) 1M x 36
(2) 1M x 36
18MB
(2) 2M x 36
(2) 256K x 36
NONE
18MB
(2) 256K x 36
(2) 2M x 36
NONE
20MB
(2) 512K x 36
(2) 1M x 36
(2) 1M x 36
20MB
(2) 512K x 36
(2) 2M x 36
NONE
20MB
(2) 2M x 36
(2) 256K x 36
(2) 256K x 36
20MB
(2) 2M x 36
(2) 512K x 36
NONE
24MB
(2) 2M x 36
(2) 512K x 36
(2) 512K x 36
24MB
(2) 2M x 36
(2) 1M x 36
NONE
24MB
(2) 1M x 36
(2) 2M x 36
NONE
32MB
(2) 2M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 2M x 36
(2) 2M x 36
NONE
32MB
(2) 4M x 36
NONE
NONE
34MB
(2) 4M x 36
(2) 256K x 36
NONE
34MB
(2) 256K x 36
(2) 2M x 36
(2) 2M x 36
34MB
(2) 256K x 36
(2) 4M x 36
NONE
36MB
(2) 4M x 36
(2) 256K x 36
(2) 256K x 36
36MB
(2) 4M x 36
(2) 512K x 36
NONE
36MB
(2) 512K x 36
(2) 2M x 36
(2) 2M x 36
36MB
(2) 512K x 36
(2) 4M x 36
NONE

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
40MB
(2) 4M x 36
(2) 512K x 36
(2) 512K x 36
40MB
(2) 4M x 36
(2) 1M x 36
NONE
40MB
(2) 1M x 36
(2) 2M x 36
(2) 2M x 36
40MB
(2) 1M x 36
(2) 4M x 36
NONE
48MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
NONE
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
48MB
(2) 2M x 36
(2) 4M x 36
NONE
64MB
(2) 4M x 36
(2) 2M x 36
(2) 2M x 36
64MB
(2) 4M x 36
(2) 4M x 36
NONE
64MB
(2) 8M x 36
NONE
NONE
66MB
(2) 8M x 36
(2) 256K x 36
NONE
66MB
(2) 256K x 36
(2) 4M x 36
(2) 4M x 36
66MB
(2) 256K x 36
(2) 8M x 36
NONE
68MB
(2) 512K x 36
(2) 4M x 36
(2) 4M x 36
68MB
(2) 512K x 36
(2) 8M x 36
NONE
68MB
(2) 8M x 36
(2) 256K x 36
(2) 256K x 36
68MB
(2) 8M x 36
(2) 512K x 36
NONE
72MB
(2) 8M x 36
(2) 512K x 36
(2) 512K x 36
72MB
(2) 8M x 36
(2) 1M x 36
NONE
72MB
(2) 1M x 36
(2) 4M x 36
(2) 4M x 36
72MB
(2) 1M x 36
(2) 8M x 36
NONE
80MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
NONE
80MB
(2) 2M x 36
(2) 4M x 36
(2) 4M x 36
80MB
(2) 2M x 36
(2) 8M x 36
NONE
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
96MB
(2) 4M x 36
(2) 8M x 36
NONE
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
NONE
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
NONE
130MB
(2) 256K x 36
(2) 8M x 36
(2) 8M x 36
132MB
(2) 512K x 36
(2) 8M x 36
(2) 8M x 36
136MB
(2) 1M x 36
(2) 8M x 36
(2) 8M x 36
144MB
(2) 2M x 36
(2) 8M x 36
(2) 8M x 36
160MB
(2) 4M x 36
(2) 8M x 36
(2) 8M x 36
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36

CACHE CONFIGURATION
Size
Bank 0
256KB
(8) 32K x 8
512KB
(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size
J4
J5
256KB
pins 1 & 2 closed
pins 1 & 2 closed
512KB
pins 2 & 3 closed
pins 1 & 2 closed

CPU SPEED CONFIGURATION
Speed
J6
J7
J8
90MHz
Open
pins 1 & 2 closed
Open
100MHz
pins 1 & 2 closed
pins 1 & 2 closed
Open

IRQ LEGACY CONNECTOR CONFIGURATION
Description
J31
No connection
pin 1
No connection
pin 2
Interrupt 5
pin 3
Interrupt 14
pin 4
Interrupt 15
pin 5
Interrupt 6
pin 6
Interrupt 7
pin 7
No connection
pin 8
Interrupt 9
pin 9
Interrupt 10
pin 10
Interrupt 11
pin 11
Interrupt 12
pin 12
Interrupt 3
pin 13
Interrupt 4
pin 14
