S1856S-V Motherboard Settings and Configuration

TYAN COMPUTER CORPORATION

S1856S-V

Device Type
Mainboard
Processor
Celeron
Processor Speed
233/266/300/333/350/366/400/433/450/466/500/550/600MHz
Chip Set
VIA Apollo
Maximum Onboard Memory
768MB (EDO supported)
Cache
0/128KB (located on the CPU)
BIOS
Award
Dimensions
305mm x 244mm
I/O Options
32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot

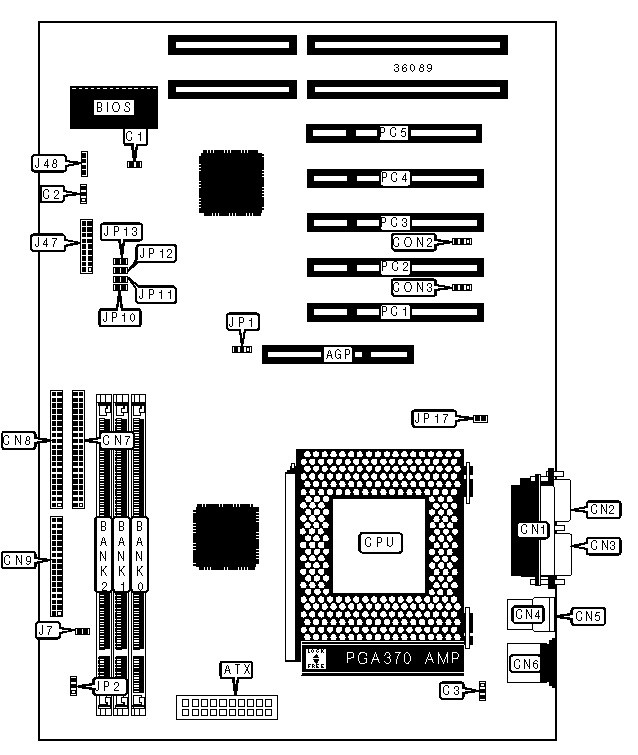

CONNECTIONS
Purpose
Location
Purpose
Location
AGP slot
AGP
PS/2 mouse port
CN6
ATX power connector
ATX
IDE interface 2
CN7
Green PC connector
C1
IDE interface 1
CN8
Chassis fan power
C2
Floppy drive interface
CN9
Chassis fan power
C3
Wake on modem connector
CON2
Serial port 2
CN1
Wake on LAN connector
CON3
Serial port 1
CN2
Chassis intrusion connector
J7
Parallel port
CN3
Front panel connector
J47
USB connector 1
CN4
Speaker
J48
USB connector 2
CN5
32-bit PCI slots
PC1 - PC5

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP2
Pins 1 & 2 closed

CMOS memory clear
JP2
Pins 2 & 3 closed
»
Factory configured - do not alter
JP17
Unidentified

DIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(1) 1M x 64
None
None
16MB
(1) 2M x 64
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
24MB
(1) 2M x 64
(1) 1M x 64
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
None
32MB
(1) 2M x 64
(1) 1M x 64
(1) 1M x 64
32MB
(1) 2M x 64
(1) 2M x 64
None
40MB
(1) 4M x 64
(1) 1M x 64
None
40MB
(1) 2M x 64
(1) 2M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 1M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
56MB
(1) 4M x 64
(1) 2M x 64
(1) 1M x 64
64MB
(1) 8M x 64
None
None
64MB
(1) 4M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64
None
72MB
(1) 8M x 64
(1) 1M x 64
None
72MB
(1) 4M x 64
(1) 4M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 1M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
None
80MB
(1) 4M x 64
(1) 4M x 64
(1) 2M x 64
88MB
(1) 8M x 64
(1) 2M x 64
(1) 1M x 64

DIMM CONFIGURATION (CON'T)
Size
Bank 0
Bank 1
Bank 2
96MB
(1) 8M x 64
(1) 2M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
104MB
(1) 8M x 64
(1) 4M x 64
(1) 1M x 64
112MB
(1) 8M x 64
(1) 4M x 64
(1) 2M x 64
128MB
(1) 16M x 64
None
None
128MB
(1) 8M x 64
(1) 4M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64
None
136MB
(1) 16M x 64
(1) 1M x 64
None
136MB
(1) 8M x 64
(1) 8M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
None
144MB
(1) 8M x 64
(1) 8M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
None
192MB
(1) 16M x 64
(1) 8M x 64
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
200MB
(1) 16M x 64
(1) 8M x 64
(1) 1M x 64
208MB
(1) 16M x 64
(1) 8M x 64
(1) 2M x 64
224MB
(1) 16M x 64
(1) 8M x 64
(1) 4M x 64
256MB
(1) 32M x 64
None
None
256MB
(1) 16M x 64
(1) 8M x 64
(1) 8M x 64
264MB
(1) 32M x 64
(1) 1M x 64
None
272MB
(1) 32M x 64
(1) 1M x 64
(1) 1M x 64
272MB
(1) 32M x 64
(1) 2M x 64
None
288MB
(1) 32M x 64
(1) 2M x 64
(1) 2M x 64
288MB
(1) 32M x 64
(1) 4M x 64
None
320MB
(1) 32M x 64
(1) 4M x 64
(1) 4M x 64
320MB
(1) 32M x 64
(1) 8M x 64
None
384MB
(1) 32M x 64
(1) 8M x 64
(1) 8M x 64
384MB
(1) 32M x 64
(1) 16M x 64
None
384MB
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 16M x 64
(1) 16M x 64
512MB
(1) 32M x 64
(1) 32M x 64
None
768MB
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Note: 128KB cache is located on the Celeron 300A & 333 CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JP10
JP11
JP12
JP13
300MHz
66MHz
4.5x
Open
Closed
Open
Closed
333MHz
66MHz
5x
Open
Open
Closed
Closed
350MHz
100MHz
3.5x
Closed
Open
Open
Closed
366MHz
66MHz
5.5x
Open
Open
Open
Closed
400MHz
100MHz
4x
Open
Closed
Closed
Closed
400MHz
66MHz
6x
Open
Closed
Closed
Open
433MHz
66MHz
6.5x
Closed
Closed
Open
Open
450MHz
100MHz
4.5x
Open
Closed
Open
Closed
466MHz
66MHz
7x
Closed
Open
Closed
Open
500MHz
100MHz
5x
Open
Open
Closed
Closed
550MHz
100MHz
5.5x
Open
Open
Open
Closed
600MHz
100MHz
6x
Closed
Closed
Closed
Open

BUS SPEED SELECTION
Speed
JP1
Auto detect
Pins 1 & 2 closed
66MHz
Pins 2 & 3 closed
100MHz
Open
