VISION 1 Motherboard Settings and Configuration
TULIP COMPUTERS
VISION 1
Processor | 80386SX |
Processor Speed | 20MHZ |
Chip Set | Texas Instruments |
Max. Onboard DRAM | 20MB |
Cache | None |
BIOS | Phoenix |
Dimensions | 330mm x 218mm |
I/O Options | Floppy drive interface, IDE interface, parallel port,serial ports(2), VGA port |
NPU Options | 80387SX |

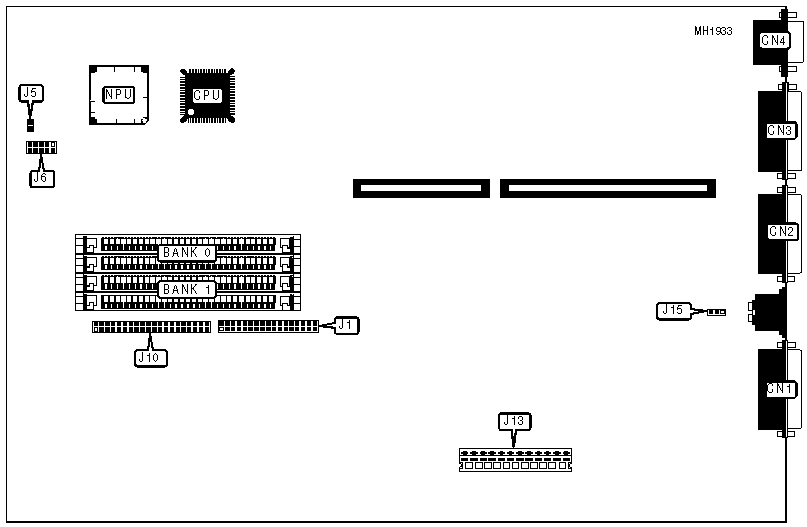

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
VGA port | CN1 | Floppy drive interface | J1 |
Parallel port | CN2 | LED, Speaker, Batteries | J6 |
Serial port 1 | CN3 | IDE interface | J10 |
Serial port 2 | CN4 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | Battery - Rechargeable | J5 | Pins 1 & 2 open |
Battery - Non-rechargeable | J5 | Pins 1 & 2 closed | |
» | Parallel port (unidirectional) | J15 | Pins 1& 2 closed |
Parallel port (bidirectional) | J15 | Pins 2 & 3 closed | |
DRAM CONFIGURATION | |||
Expansion from: | Expansion to | Bank 0 | Bank 1 |
4MB | 6MB | (2) 1MB x 9 | None |
4MB | 12MB | (2) 4MB x 9 | None |
6MB | 8MB | None | (2) 1MB x 9 |
12MB | 20MB | None | (2) 4MB x 9 |
Note: 4MB is internal memory and is not configurable. | |||
