TR-DP6 Motherboard Settings and Configuration

TRENTON TECHNOLOGY, INC.

TR-DP6

Processor
Pentium Pro
Processor Speed
180/200MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium Pro CPU)
BIOS
AMI
Dimensions
Unidentified
I/O Options
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VRM connectors (2), USB connectors (2)
NPU Options
None

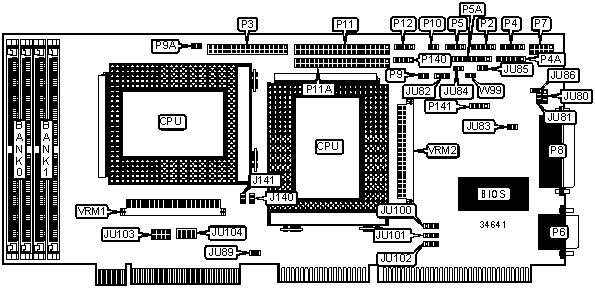

CONNECTIONS
Purpose
Location
Purpose
Location
Power LED & keylock
P2
CPU fan power
P9A
Floppy drive interface
P3
Reset switch
P10
Auxiliary keyboard connector
P4
IDE interface 1
P11
PS/2 mouse interface
P4A
IDE interface 2
P11A
Speaker
P5
IDE interface LED
P12
Combo I/O connector
P5A
USB connector 1
P140
Serial port 1
P6
USB connector 2
P141
Serial port 2
P7
VRM connector
VRM1
Parallel port
P8
VRM connector
VRM2
CPU fan power
P9

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Monitor type select color
JU80
Pins 1 & 2 closed

Monitor type select monochrome
JU80
Pins 2 & 3 closed
»
Password normal operation
JU81
Open

Password clear
JU81
Closed
»
Watchdog timer disabled
JU82
Pins 1 & 2 closed

Watchdog timer enabled
JU82
Pins 2 & 3 closed
»
CMOS memory normal operation
JU83
Open

CMOS memory clear
JU83
Closed
»
Speaker data signal to pin 8 on P5A enabled
JU84
Closed

Speaker data signal to pin 8 on P5A disabled
JU84
Open
»
Reset data signal to pin 1 on P5A enabled
JU85
Closed

Reset data signal to pin 1 on P5A disabled
JU85
Open
»
PS/2 mouse IRQ12 enabled
JU86
Closed

PS/2 mouse IRQ12 disabled
JU86
Open
»
3.3v monitor disabled
JU89
Open

3.3v monitor enabled
JU89
Closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
J140
J141
W99
180MHz
60MHz
3x
Closed
Open
Closed
200MHz
66MHz
3x
Open
Closed
Closed

DMA CHANNEL SELECTION
Channel
JU103
JU104
3
Pins 7 & 8 closed
Pins 7 & 8 closed
5
Pins 5 & 6 closed
Pins 5 & 6 closed
6
Pins 3 & 4 closed
Pins 3 & 4 closed
7
Pins 1 & 2 closed
Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECTION
IRQ
JU100
»
IRQ4
Pins 2 & 3 closed

IRQ3
Pins 1 & 2 closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ
JU101
»
IRQ3
Pins 1 & 2 closed

IRQ4
Pins 2 & 3 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ
JU102
»
IRQ7
Pins 1 & 2 closed

IRQ5
Pins 2 & 3 closed
