TI5TV (A) (VER. 3.0B) Motherboard Settings and Configuration

TMC RESEARCH CORPORATION

TI5TV (A) (VER. 3.0B)

Processor
CX 6X86/AM K5/AM K6/Pentium
Processor Speed
75/90/100/120/133/150/166/200
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB
BIOS
AMI
Dimensions
305mm x 244mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, audio in CD–ROM, audio I/O connector
NPU Options
None

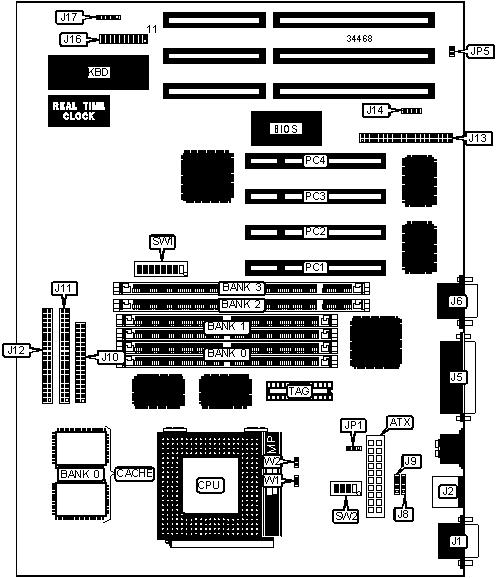

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
Audio in CD - ROM
J14
Serial port 1
J1
Speaker
J16/pins 1 - 4
PS/2 mouse port
J2
Green PC connector
J16/pins 6 & 16
Parallel port
J5
Turbo LED
J16/pins 8 & 18
Serial port 2
J6
Reset switch
J16/pins 9 & 19
USB connector
J8
IDE interface LED
J16/pins 10 & 20
USB connector
J9
Power LED & keylock
J16/pins 11 - 15
Floppy drive interface
J10
IR connector
J17
IDE interface 2
J11
Chassis fan power
JP1
IDE interface 1
J12
32-bit PCI slots
PC1 – PC4
Audio I/O connector
J13

USER CONFIGURABLE SETTINGS
Function
Label
Position

On board audio enabled
JP5
Closed

On board audio disabled
JP5
Open
»
CMOS memory normal operation
SW1/7
Off

CMOS memory clear
SW1/7
On
»
Factory configured - do not alter
SW1/8
Unidentified

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 32
None
16MB
(2) 2M x 32
None
16MB
(2) 1M x 32
(2) 1M x 32
24MB
(2) 2M x 32
(2) 1M x 32
32MB
(2) 4M x 32
None
32MB
(2) 2M x 32
(2) 2M x 32
40MB
(2) 4M x 32
(2) 1M x 32
48MB
(2) 4M x 32
(2) 2M x 32
64MB
(2) 8M x 32
None
64MB
(2) 4M x 32
(2) 4M x 32
72MB
(2) 8M x 32
(2) 1M x 32
80MB
(2) 8M x 32
(2) 2M x 32
96MB
(2) 8M x 32
(2) 4M x 32
128MB
(2) 8M x 32
(2) 8M x 32
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 2
Bank 3
8MB
(1) 1M x 64
None
16MB
(1) 2M x 64
None
16MB
(1) 1M x 64
(1) 1M x 64
24MB
(1) 2M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
32MB
(1) 2M x 64
(1) 2M x 64
40MB
(1) 4M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
64MB
(1) 8M x 64
None
64MB
(1) 4M x 64
(1) 4M x 64
72MB
(1) 8M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
128MB
(1) 8M x 64
(1) 8M x 64

CACHE CONFIGURATION
Size
Bank 0
TAG
256KB
(2) 32K x 32
Unidentified
512KB
(2) 64K x 32
Unidentified

CPU SPEED SELECTION (CYRIX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
120MHz
50MHz
2x
On
On
On
Off
On
Off
133MHz
55MHz
2x
On
On
Off
Off
On
Off
150MHz
60MHz
2x
Off
On
On
Off
On
Off
166MHz
66MHz
2x
Off
Off
On
Off
On
Off

CPU SPEED SELECTION (AMD K5)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
On
Off
Off
Off
100MHz
66MHz
1.5x
On
Off
On
Off
Off
Off
120MHz
60MHz
1.5x
Off
On
On
Off
Off
Off
133MHz
66MHz
1.5x
On
Off
On
Off
Off
Off
150MHz
60MHz
1.75x
Off
On
On
Off
On
On
166MHz
66MHz
1.75x
On
Off
On
Off
On
On

CPU SPEED SELECTION (AMD K6)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
200MHz
66MHz
3x
On
Off
On
Off
Off
On

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
On
Off
Off
Off
100MHz
66MHz
1.5x
On
Off
On
Off
Off
Off
120MHz
60MHz
2x
Off
On
On
Off
On
Off
133MHz
66MHz
2x
On
Off
On
Off
On
Off
150MHz
60MHz
2.5x
Off
On
On
Off
On
On
166MHz
66MHz
2.5x
On
Off
On
Off
On
On
200MHz
66MHz
3x
On
Off
On
Off
Off
On
233MHz
66MHz
3.5x
On
Off
On
Off
Off
Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage
SW2/1
SW2/2
SW2/3
SW2/4
W1
W2
3.5v
On
On
On
On
Closed
Open

CPU VOLTAGE SELECTION (DUAL)
Voltage
V core
SW2/1
SW2/2
SW2/3
SW2/4
W1
W2
3.3v
2.5v
On
Off
On
Off
Open
Closed
3.3v
2.6v
Off
On
On
Off
Open
Closed
3.3v
2.7v
On
On
On
Off
Open
Closed
3.3v
2.8v
Off
Off
Off
On
Open
Closed
3.3v
2.9v
On
Off
Off
On
Open
Closed
3.3v
3.0v
Off
On
Off
On
Open
Closed
3.3v
3.1v
On
On
Off
On
Open
Closed
3.3v
3.2v
Off
Off
On
On
Open
Closed
3.3v
3.5v
On
On
On
On
Open
Closed
