PEAK 550 Motherboard Settings and Configuration
TECHNOLAND, INC.
PEAK 550
Device Type | Singel board computer |
Processor | CX M1/CX M2/AM K5/AM K6/Pentium |
Processor Speed | 75/90/100/120/133/150/166/180/200/233MHz |
Chip Set | SIS |
Video Chip Set | SIS |
Maximum Onboard Memory | 128MB (EDO supported) Unified Memory Architecture (UMA) |
Cache | 256/512KB |
BIOS | Award |
Dimensions | 185mm x 122mm |
I/O Options | Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connector |
NPU Options | None |

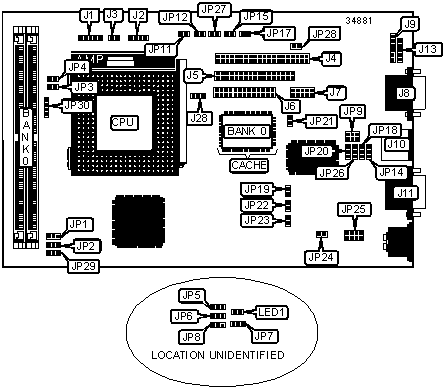

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Power LED & keylock | J1 | VGA port | J8 |
Speaker | J2 | USB connector | J9 |
Reset switch | J3 | PS/2 mouse port | J10 |
IDE interface | J4 | Serial port 1 | J11 |
Floppy drive interface | J5 | Auxiliary keyboard connector | J13 |
Parallel port | J6 | Chassis fan power | J28 |
Serial port 2 | J7 | IDE interface LED | LED1 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | On board I/O enabled | JP21 | Open |
On board I/O disabled | JP21 | Closed | |
» | CMOS memory normal operation | JP23 | Open |
CMOS memory clear | JP23 | Closed | |
» | BIOS programming disabled | JP27 | Open |
BIOS programming enabled | JP27 | Closed | |
» | Fan control disabled | JP28 | Open |
Fan control enabled | JP28 | Closed | |
SIMM CONFIGURATION | |
Size | Bank 0 |
8MB | (2) 1M x 36 |
16MB | (2) 2M x 36 |
32MB | (2) 4M x 36 |
64MB | (2) 8M x 36 |
128MB | (2) 16M x 36 |
Note: Board accepts EDO memory. | |
CACHE CONFIGURATION | |
Size | Bank 0 |
256KB | (1) 32K x 64 |
512KB | (1) 64K x 64 |
CACHE JUMPER CONFIGURATION | |
Size | JP17 |
256KB | Open |
512KB | Closed |
CACHE TYPE CONFIGURATION | ||
Type | JP11 | |
| » | Write back | Open |
Write through | Closed | |
CACHE PIPELINE CONFIGURATION | ||
Setting | JP12 | |
| » | Enabled | Closed |
Disabled | Open | |
CACHE/CPU TYPE CONFIGURATION | |
Type | JP15 |
Cyrix | Closed |
AMD | Open |
Intel | Open |
VIDEO MEMORY CONFIGURATION |
Note: The size and location of the video memory is unidentified. |
CPU SPEED SELECTION (CX M1) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
120MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Open | Closed |
150MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Open | Closed |
166MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU SPEED SELECTION (CX M2) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | Closed | Open |
233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 1 & 2 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU SPEED SELECTION (AM K5) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
75MHz | 50MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Closed |
90MHz | 60MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Open | Closed |
100MHz | 66MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Open |
120MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Open | Closed |
133MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Closed | Open |
150MHz | 60MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Open | Closed |
166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU SPEED SELECTION (AM K6) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Closed | Open |
200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | Closed | Open |
233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU SPEED SELECTION (INTEL) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
75MHz | 50MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Closed |
90MHz | 60MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Open | Closed |
100MHz | 66MHz | 1.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Open |
120MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Open | Closed |
133MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 2 & 3 | Closed | Open |
150MHz | 60MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Open | Closed |
166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Closed | Open |
180MHz | 60MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | Open | Closed |
200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU SPEED SELECTION (INTEL MMX) | |||||||
CPU speed | Clock speed | Multiplier | JP5 | JP6 | JP8 | JP19 | JP22 |
166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 2 & 3 | Closed | Open |
200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | Closed | Open |
233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 2 & 3 | Closed | Open |
Note: Pins designated should be in the closed position. | |||||||
CPU VOLTAGE SELECTION | |||
Voltage | JP3 | JP4 | JP30 |
2.8v | Closed | Closed | Open |
2.9v | Closed | Closed | Pins 1 & 2 closed |
3.2v | Closed | Closed | Pins 3 & 4 closed |
3.3v | Open | Open | Open |
SERIAL PORT SELECTION | |||||
Setting | JP9 | JP14 | JP18 | JP20 | JP26 |
RS-232 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
RS-422 | 3 & 4 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
RS-485 | 5 & 6 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
Note: Pins designated should be in the closed position. | |||||
ON BOARD VIDEO SELECTION | ||||
Setting | JP1 | JP2 | JP29 | |
| » | Enabled | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | |
M SYSTEM ADDRESS SELECTION | ||
Setting | JP25 | |
C0000 | Pins 1 & 2 closed | |
C8000 | Pins 3 & 4 closed | |
D0000 | Pins 5 & 6 closed | |
| » | D8000 | Pins 7 & 8 closed |
PS/2 MOUSE SELECTION | ||
Setting | JP7 | JP24 |
Enabled | Pins 1 & 2 closed | Open |
Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
