MB-486VI Motherboard Settings and Configuration

SPRINT MANUFACTURING CORPORATION

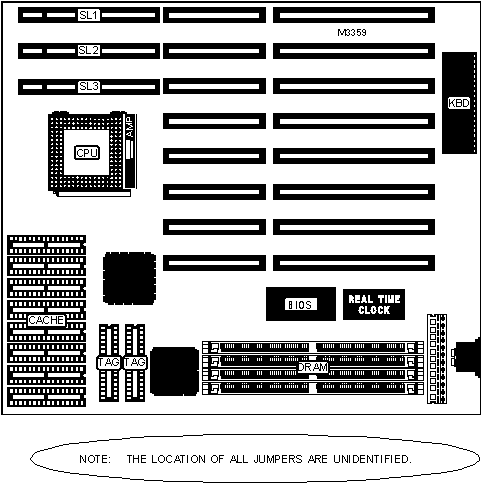

MB-486VI

Processor
80486SX/80486DX/80486DX2/80486DX4/P24D/P24T
Processor Speed
16/20/25/33/40/50(internal)/50/66(internal)/75(internal)/ 80(internal)/100(internal)MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
128MB
Maximum Video Memory
None
Cache
64/128/256/512/1024KB
BIOS
AMI
Dimensions
254mm x 218mm
I/O Options
32-bit VESA local bus slots (3)
NPU Options
None

CONNECTIONS
Purpose
Location
32-bit VESA local bus slots
SL1 - SL3

USER CONFIGURABLE SETTINGS
Function
Label
Position

Monitor type select color
JP17
Closed

Monitor type select monochrome
JP17
Open

BIOS type select EPROM
JP18
Pins 1 & 2 closed

BIOS type select flash
JP18
Pins 2 & 3 closed
»
Factory configured - do not alter
JP22
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
None
None
None
2MB
(1) 512K x 36
None
None
None
2MB
(1) 256K x 36
(1) 256K x 36
None
None
3MB
(1) 512K x 36
(1) 256K x 36
None
None
3MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
None
3MB
(1) 256K x 36
(1) 512K x 36
None
None
4MB
(1) 1M x 36
None
None
None
4MB
(1) 512K x 36
(1) 256K x 36
(1) 256K x 36
None
4MB
(1) 512K x 36
(1) 512K x 36
None
None
4MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
5MB
(1) 1M x 36
(1) 256K x 36
None
None
5MB
(1) 512K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
5MB
(1) 256K x 36
(1) 512K x 36
(1) 512K x 36
None
5MB
(1) 256K x 36
(1) 1M x 36
None
None
6MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
None
6MB
(1) 1M x 36
(1) 512K x 36
None
None
6MB
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
None
6MB
(1) 512K x 36
(1) 1M x 36
None
None
7MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
7MB
(1) 256K x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
8MB
(1) 2M x 36
None
None
None
8MB
(1) 1M x 36
(1) 512K x 36
(1) 512K x 36
None
8MB
(1) 1M x 36
(1) 1M x 36
None
None
8MB
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
9MB
(1) 2M x 36
(1) 256K x 36
None
None
9MB
(1) 256K x 36
(1) 1M x 36
(1) 1M x 36
None
9MB
(1) 256K x 36
(1) 2M x 36
None
None
10MB
(1) 2M x 36
(1) 256K x 36
(1) 256K x 36
None
10MB
(1) 2M x 36
(1) 512K x 36
None
None
10MB
(1) 1M x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
10MB
(1) 512K x 36
(1) 1M x 36
(1) 1M x 36
None
10MB
(1) 512K x 36
(1) 2M x 36
None
None
11MB
(1) 2M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
12MB
(1) 2M x 36
(1) 512K x 36
(1) 512K x 36
None

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
12MB
(1) 2M x 36
(1) 1M x 36
None
None
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
None
12MB
(1) 1M x 36
(1) 2M x 36
None
None
13MB
(1) 256K x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
14MB
(1) 2M x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
14MB
(1) 512K x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 4M x 36
None
None
None
16MB
(1) 2M x 36
(1) 1M x 36
(1) 1M x 36
None
16MB
(1) 2M x 36
(1) 2M x 36
None
None
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
17MB
(1) 4M x 36
(1) 256K x 36
None
None
17MB
(1) 256K x 36
(1) 2M x 36
(1) 2M x 36
None
17MB
(1) 256K x 36
(1) 4M x 36
None
None
18MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
None
18MB
(1) 4M x 36
(1) 512K x 36
None
None
18MB
(1) 512K x 36
(1) 2M x 36
(1) 2M x 36
None
18MB
(1) 512K x 36
(1) 4M x 36
None
None
19MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
20MB
(1) 4M x 36
(1) 512K x 36
(1) 512K x 36
None
20MB
(1) 4M x 36
(1) 1M x 36
None
None
20MB
(1) 2M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
20MB
(1) 1M x 36
(1) 2M x 36
(1) 2M x 36
None
20MB
(1) 1M x 36
(1) 4M x 36
None
None
22MB
(1) 4M x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
24MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
None
24MB
(1) 4M x 36
(1) 2M x 36
None
None
24MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
None
24MB
(1) 2M x 36
(1) 4M x 36
None
None
25MB
(1) 256K x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
26MB
(1) 512K x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
28MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
28MB
(1) 1M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
32MB
(1) 8M x 36
None
None
None
32MB
(1) 4M x 36
(1) 2M x 36
(1) 2M x 36
None
32MB
(1) 4M x 36
(1) 4M x 36
None
None
32MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
33MB
(1) 8M x 36
(1) 256K x 36
None
None
33MB
(1) 256K x 36
(1) 4M x 36
(1) 4M x 36
None
33MB
(1) 256K x 36
(1) 8M x 36
None
None
34MB
(1) 8M x 36
(1) 256K x 36
(1) 256K x 36
None
34MB
(1) 8M x 36
(1) 512K x 36
None
None
34MB
(1) 512K x 36
(1) 4M x 36
(1) 4M x 36
None

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
34MB
(1) 512K x 36
(1) 8M x 36
None
None
35MB
(1) 8M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
36MB
(1) 8M x 36
(1) 512K x 36
(1) 512K x 36
None
36MB
(1) 8M x 36
(1) 1M x 36
None
None
36MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
None
36MB
(1) 1M x 36
(1) 8M x 36
None
None
38MB
(1) 8M x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
40MB
(1) 8M x 36
(1) 1M x 36
(1) 1M x 36
None
40MB
(1) 8M x 36
(1) 2M x 36
None
None
40MB
(1) 4M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
40MB
(1) 2M x 36
(1) 4M x 36
(1) 4M x 36
None
40MB
(1) 2M x 36
(1) 8M x 36
None
None
44MB
(1) 8M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
48MB
(1) 8M x 36
(1) 2M x 36
(1) 2M x 36
None
48MB
(1) 8M x 36
(1) 4M x 36
None
None
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
None
48MB
(1) 4M x 36
(1) 8M x 36
None
None
49MB
(1) 256K x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
50MB
(1) 512K x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
52MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
56MB
(1) 8M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
56MB
(1) 2M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 8M x 36
(1) 4M x 36
(1) 4M x 36
None
64MB
(1) 8M x 36
(1) 8M x 36
None
None
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
65MB
(1) 256K x 36
(1) 8M x 36
(1) 8M x 36
None
66MB
(1) 512K x 36
(1) 8M x 36
(1) 8M x 36
None
68MB
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
None
72MB
(1) 2M x 36
(1) 8M x 36
(1) 8M x 36
None
80MB
(1) 8M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
80MB
(1) 4M x 36
(1) 8M x 36
(1) 8M x 36
None
96MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
None
97MB
(1) 256K x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
98MB
(1) 512K x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
100MB
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
104MB
(1) 2M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
112MB
(1) 4M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
128MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
Note: Board also accepts x 32 SIMMs.

DRAM JUMPER CONFIGURATION
Type
JP3
Normal SIMM
Open
4K fast refresh 4M x 16 SIMM
Closed

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
64KB
(4) 8K x 8
(4) 8K x 8
(2) 8K x 8
128KB
(4) 32K x 8
None
(2) 8K x 8
256KB
(4) 32K x 8
(4) 32K x 8
(2) 32K x 8
512KB
(4) 128K x 8
None
(2) 32K x 8
1MB
(4) 128K x 8
(4) 128K x 8
(2) 128K x 8
Note: The location of banks 0 & 1, data TAG & TAG are unidentified.

CACHE JUMPER CONFIGURATION
Size
JD1
JD2
JT1
JT2
JT3
64KB
2 & 3
2 & 3
1 & 2
1 & 2
1 & 2
128KB
1 & 2
1 & 2
2 & 3
1 & 2
1 & 2
256KB
2 & 3
2 & 3
2 & 3
2 & 3
1 & 2
512KB
1 & 2
1 & 2
2 & 3
2 & 3
2 & 3
1MB
2 & 3
2 & 3
2 & 3
2 & 3
2 & 3
Note: Pins designated should be in the closed position.

CACHE TAG CONFIGURATION
Setting
JP16
TAG combined
Pins 1 & 2 closed
TAG separated
Pins 2 & 3 closed

CPU CLOCK SPEED SELECTION
Speed
JP25
JP26
JP27
16MHz
Closed
Closed
Closed
20MHz
Open
Closed
Closed
25MHz
Closed
Open
Closed
33MHz
Open
Open
Closed
40MHz
Closed
Closed
Open
50MHz
Open
Closed
Open
66MHz
Closed
Open
Open

CPU TYPE SELECTION
Type
JP5
JP6
JP7
JP11
JP41
RN1
80486SX
2 & 3
Closed
N/A
N/A
N/A
Not installed
80486DX
1 & 2
Closed
N/A
1 & 2
N/A
Installed
80486DX2
1 & 2
Closed
N/A
1 & 2
N/A
Installed
80486DX4
1 & 2
Closed
N/A
1 & 2
N/A
Installed
P24D
1 & 2
Closed
2 & 3
1 & 2
1 & 2
Installed
P24T
1 & 2
N/A
N/A
2 & 3
N/A
Installed
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type
JP2
RN2
Non SL-enhanced
Open
Not installed
SL-enhanced
Closed
Installed

CPU TYPE SELECTION (P24D & P24T ONLY)
Type
JP1
JP4
Write back
Closed
Closed
Write through
Open
Open

CPU MULTIPLIER SELECTION
Multiplier
JP10
2x
Pins 1 & 2 closed
2.5x
Pins 2 & 3 closed
3x
Open

VL BUS WAIT STATE SELECTION
Setting
JP20
0
Pins 1 & 2 closed
1
Pins 2 & 3 closed

VL-BUS SPEED SELECTION
Setting
JP21
<= 33MHz
Pins 1 & 2 closed
>33 MHz
Pins 2 & 3 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

MB-486VI Motherboard Settings and Configuration

Search

My Books

Discover

Processor	80486SX/80486DX/80486DX2/80486DX4/P24D/P24T
Processor Speed	16/20/25/33/40/50(internal)/50/66(internal)/75(internal)/ 80(internal)/100(internal)MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	128MB
Maximum Video Memory	None
Cache	64/128/256/512/1024KB
BIOS	AMI
Dimensions	254mm x 218mm
I/O Options	32-bit VESA local bus slots (3)
NPU Options	None

CONNECTIONS
Purpose	Location
32-bit VESA local bus slots	SL1 - SL3

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Monitor type select color	JP17	Closed
	Monitor type select monochrome	JP17	Open
	BIOS type select EPROM	JP18	Pins 1 & 2 closed
	BIOS type select flash	JP18	Pins 2 & 3 closed
»	Factory configured - do not alter	JP22	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	None	None	None
2MB	(1) 512K x 36	None	None	None
2MB	(1) 256K x 36	(1) 256K x 36	None	None
3MB	(1) 512K x 36	(1) 256K x 36	None	None
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	None
3MB	(1) 256K x 36	(1) 512K x 36	None	None
4MB	(1) 1M x 36	None	None	None
4MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	None
4MB	(1) 512K x 36	(1) 512K x 36	None	None
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 1M x 36	(1) 256K x 36	None	None
5MB	(1) 512K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
5MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	None
5MB	(1) 256K x 36	(1) 1M x 36	None	None
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	None
6MB	(1) 1M x 36	(1) 512K x 36	None	None
6MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	None
6MB	(1) 512K x 36	(1) 1M x 36	None	None
7MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
7MB	(1) 256K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
8MB	(1) 2M x 36	None	None	None
8MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	None
8MB	(1) 1M x 36	(1) 1M x 36	None	None
8MB	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
9MB	(1) 2M x 36	(1) 256K x 36	None	None
9MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	None
9MB	(1) 256K x 36	(1) 2M x 36	None	None
10MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	None
10MB	(1) 2M x 36	(1) 512K x 36	None	None
10MB	(1) 1M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
10MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	None
10MB	(1) 512K x 36	(1) 2M x 36	None	None
11MB	(1) 2M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
12MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
12MB	(1) 2M x 36	(1) 1M x 36	None	None
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	None
12MB	(1) 1M x 36	(1) 2M x 36	None	None
13MB	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
14MB	(1) 2M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
14MB	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	None	None	None
16MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	None
16MB	(1) 2M x 36	(1) 2M x 36	None	None
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
17MB	(1) 4M x 36	(1) 256K x 36	None	None
17MB	(1) 256K x 36	(1) 2M x 36	(1) 2M x 36	None
17MB	(1) 256K x 36	(1) 4M x 36	None	None
18MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	None
18MB	(1) 4M x 36	(1) 512K x 36	None	None
18MB	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36	None
18MB	(1) 512K x 36	(1) 4M x 36	None	None
19MB	(1) 4M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
20MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	None
20MB	(1) 4M x 36	(1) 1M x 36	None	None
20MB	(1) 2M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
20MB	(1) 1M x 36	(1) 2M x 36	(1) 2M x 36	None
20MB	(1) 1M x 36	(1) 4M x 36	None	None
22MB	(1) 4M x 36	(1) 512K x 36	(1) 512K x 36	(1) 512K x 36
24MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	None
24MB	(1) 4M x 36	(1) 2M x 36	None	None
24MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	None
24MB	(1) 2M x 36	(1) 4M x 36	None	None
25MB	(1) 256K x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
26MB	(1) 512K x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
28MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
28MB	(1) 1M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 8M x 36	None	None	None
32MB	(1) 4M x 36	(1) 2M x 36	(1) 2M x 36	None
32MB	(1) 4M x 36	(1) 4M x 36	None	None
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
33MB	(1) 8M x 36	(1) 256K x 36	None	None
33MB	(1) 256K x 36	(1) 4M x 36	(1) 4M x 36	None
33MB	(1) 256K x 36	(1) 8M x 36	None	None
34MB	(1) 8M x 36	(1) 256K x 36	(1) 256K x 36	None
34MB	(1) 8M x 36	(1) 512K x 36	None	None
34MB	(1) 512K x 36	(1) 4M x 36	(1) 4M x 36	None

DRAM JUMPER CONFIGURATION
Type	JP3
Normal SIMM	Open
4K fast refresh 4M x 16 SIMM	Closed

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(2) 8K x 8
128KB	(4) 32K x 8	None	(2) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(2) 32K x 8
512KB	(4) 128K x 8	None	(2) 32K x 8
1MB	(4) 128K x 8	(4) 128K x 8	(2) 128K x 8
Note: The location of banks 0 & 1, data TAG & TAG are unidentified.

CACHE JUMPER CONFIGURATION
Size	JD1	JD2	JT1	JT2	JT3
64KB	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
128KB	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2
256KB	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
512KB	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3
1MB	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CACHE TAG CONFIGURATION
Setting	JP16
TAG combined	Pins 1 & 2 closed
TAG separated	Pins 2 & 3 closed

CPU CLOCK SPEED SELECTION
Speed	JP25	JP26	JP27
16MHz	Closed	Closed	Closed
20MHz	Open	Closed	Closed
25MHz	Closed	Open	Closed
33MHz	Open	Open	Closed
40MHz	Closed	Closed	Open
50MHz	Open	Closed	Open
66MHz	Closed	Open	Open

CPU TYPE SELECTION
Type	JP5	JP6	JP7	JP11	JP41	RN1
80486SX	2 & 3	Closed	N/A	N/A	N/A	Not installed
80486DX	1 & 2	Closed	N/A	1 & 2	N/A	Installed
80486DX2	1 & 2	Closed	N/A	1 & 2	N/A	Installed
80486DX4	1 & 2	Closed	N/A	1 & 2	N/A	Installed
P24D	1 & 2	Closed	2 & 3	1 & 2	1 & 2	Installed
P24T	1 & 2	N/A	N/A	2 & 3	N/A	Installed
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP2	RN2
Non SL-enhanced	Open	Not installed
SL-enhanced	Closed	Installed

CPU TYPE SELECTION (P24D & P24T ONLY)
Type	JP1	JP4
Write back	Closed	Closed
Write through	Open	Open

CPU MULTIPLIER SELECTION
Multiplier	JP10
2x	Pins 1 & 2 closed
2.5x	Pins 2 & 3 closed
3x	Open

VL BUS WAIT STATE SELECTION
Setting	JP20
0	Pins 1 & 2 closed
1	Pins 2 & 3 closed

VL-BUS SPEED SELECTION
Setting	JP21
<= 33MHz	Pins 1 & 2 closed
>33 MHz	Pins 2 & 3 closed
