S26361-D841 Motherboard Settings and Configuration

Processor	Pentium Overdrive/Pentium
Processor Speed	60MHz
Chip Set	Unidentified
Max. Onboard DRAM	128MB
Cache	256KB
BIOS	Unidentified
Dimensions	310mm x 254mm
I/O Options	PS/2 mouse port, parallel port, serial ports (2), VGA port, VGA feature connector, floppy drive interface, IDE interface
NPU Options	None

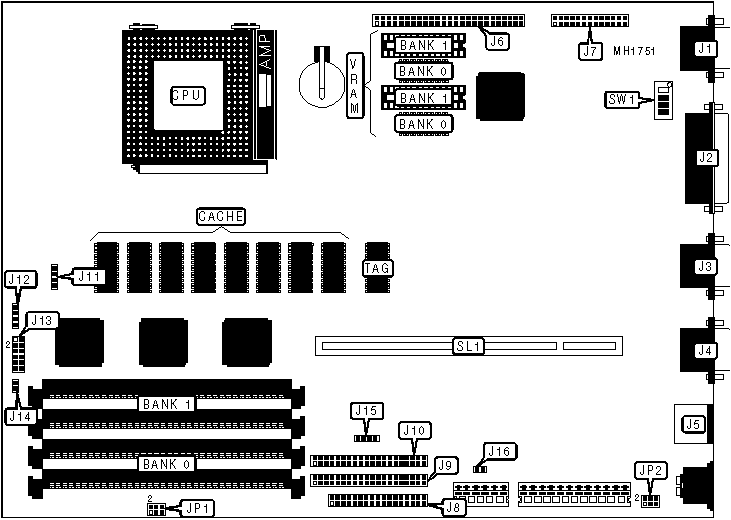

CONNECTIONS
Purpose	Location	Purpose	Location
VGA port	J1	CPU fan connector	J11
Parallel port	J2	Speaker	J12
Serial port	J3	Power LED	J13 pins 1 & 7
Serial port 1	J4	Reset switch	J13 pins 5 & 11
PS/2 mouse port	J5	IDE hard drive LED	J13 pins 12 & 11
Proprietary image connector	J6	Keylock	J14
VGA feature connector	J7	SCSI hard drive LED	J15
Floppy drive interface	J8	Remote power-on connector	J16
IDE interface (primary)	J9	Proprietary riser card slot	SL1
IDE interface (secondary)	J10

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Flash BIOS normal operation	SW1/1	Off
	Flash BIOS recovery mode	SW1/1	On
»	Password enabled	SW1/2	Off
	Password disabled	SW1/2	On
»	BIOS write protect enabled	SW1/3	Off
	BIOS write protect disabled	SW1/3	On
»	Floppy interface enabled	SW1/4	Off
	Floppy interface disabled	SW1/4	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1
128MB	(2) 8M x 36	(2) 8M x 36

VRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 441000	NONE
2MB	(2) 441000	(2) 441000
