SYSTEM BOARD D1060 Motherboard Settings and Configuration

Device Type	Mainboard
Processor	Pentium II
Processor Speed	233/266/300MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	1GB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	512KB (located on Pentium II CPU)
BIOS	Unidentified
Dimensions	355mm x 304mm
I/O Options	32-bit PCI slots (4), Ethernet 10BaseT connector, floppy drive interface, game/MIDI interface, green PC connector, IDE interfaces (2), SCSI interface, Ultra Wide SCSI interfaces (2), parallel port, PS/2 mouse port, serial ports (3), line ins (2), line out, microphone in, audio in – CD-ROMs (2), RAID slot
NPU Options	None

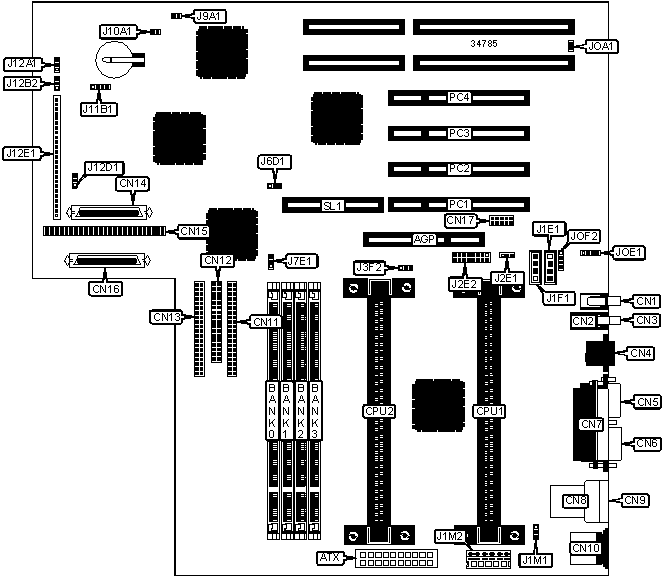

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Audio in – CD-ROM	J1F1
ATX power connector	ATX	Chassis fan power	J1M1
Microphone in	CN1	3.3v power	J1M2
Line in (external)	CN2	CPU1 fan power	J2E1
Line out	CN3	Game/MIDI interface	J2E2
Ethernet 10BaseT connector	CN4	CPU2 fan power	J3F2
Serial port 2 - external	CN5	Wake on LAN connector	J6D1
Serial port 1	CN6	Wake on modem connector	J9A1
Parallel port	CN7	IDE interface LED	J10A1
USB connector 1	CN8	IDE interface LED	J11B1
USB connector 2	CN9	Chassis fan power	J12A1
PS/2 mouse port	CN10	Chassis fan power	J12B2
IDE interface 2	CN11	Green PC connector	J12D1
Floppy drive interface	CN12	Soft off power supply	J12E1/pins 1 & 2
IDE interface 1	CN13	Green PC connector	J12E1/pins 3 & 4
Ultra Wide SCSI interface	CN14	IR connector	J12E1/pins 6 - 11
SCSI interface	CN15	IDE interface LED	J12E1/pins 13 - 16
Ultra Wide SCSI interface	CN16	Power LED	J12E1/pins 18 - 20
Serial port 2 - internal	CN17	Reset switch	J12E1/pins 22 & 23
Security connector	JOA1	Speaker	J12E1/pins 24 - 27
Telephony connector	JOE1	32-bit PCI slots	PC1 – PC4
Line in (internal)	JOF2	RAID slot	SL1
Audio in – CD-ROM	J1E1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	J7E1	Pins 1 & 2 closed
	CMOS memory clear	J7E1	Pins 2 & 3 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
16MB	(1) 2M x 64	None	None	None
32MB	(1) 4M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
48MB	(1) 4M x 64	(1) 2M x 64	None	None

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None	None
80MB	(1) 8M x 64	(1) 2M x 64	None	None
96MB	(1) 8M x 64	(1) 4M x 64	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None
128MB	(1) 16M x 64	None	None	None
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
144MB	(1) 16M x 64	(1) 2M x 64	None	None
160MB	(1) 16M x 64	(1) 4M x 64	None	None
176MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
224MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
256MB	(1) 32M x 64	None	None	None
256MB	(1) 16M x 64	(1) 16M x 64	None	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
288MB	(1) 16M x 64	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
304MB	(1) 32M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
320MB	(1) 16M x 64	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
320MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
352MB	(1) 32M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
448MB	(1) 32M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
512MB	(1) 32M x 64	(1) 32M x 64	None	None
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
640MB	(1) 32M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
768MB	(1) 32M x 64	(1) 32M x 64	(1) 32M x 64	None
1024MB	(1) 32M x 64	(1) 32M x 64	(1) 32M x 64	(1) 32M x 64
Note: Board accepts EDO & SDRAM memory. Maximum SDRAM is 512MB & maximum EDO is 1GB.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.
