S26361-D802-A Motherboard Settings and Configuration

SIEMENS NIXDORF INFORMATIONSSYSTEME AG

S26361-D802-A

Processor
80486SX/80486DX/ODP486SX/80486DX2/Pentium Overdrive
Processor Speed
25/33/50(internal)/66(internal)MHz
Chip Set
Unidentified
Max. Onboard DRAM
64MB
Cache
128KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slots (1), floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port
NPU Options
None

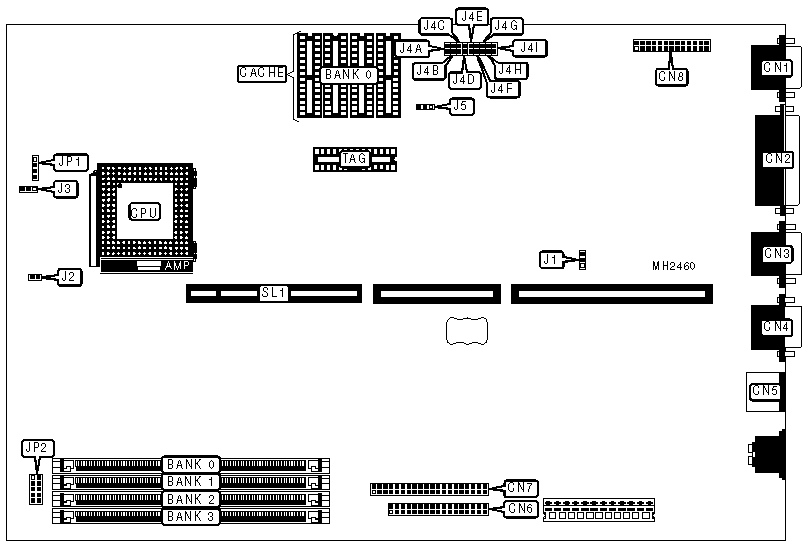

CONNECTIONS
Purpose
Location
Purpose
Location
VGA port
CN1
IDE interface
CN7
Parallel port
CN2
VGA feature connector
CN8
Serial port 2
CN3
Speaker
JP1
Serial port 1
CN4
LED connector
JP2
PS/2 mouse port
CN5
32-bit VESA local bus slots
SL1
Floppy drive interface
CN6

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
IRQ9 select VGA controller only
J1
pins 1 & 2 closed

IRQ9 select other uses
J1
pins 2 & 3 closed
»
VGA interface enabled
J4A
Closed

VGA interface disabled
J4A
Open
»
IDE interface enabled
J4B
Closed

IDE interface disabled
J4B
Open
»
Floppy drive interface enabled
J4C
Closed

Floppy drive interface disabled
J4C
Open
»
Factory configured - do not alter
J4D
Closed
»
Factory configured - do not alter
J4E
Open
»
Monitor type select color
J4F
Closed

Monitor type select monochrome
J4F
Open
»
Factory configured - do not alter
J4H
Closed
»
Password enabled
J4I
Open

Password disabled
J4I
Closed
»
VGA feature connector interface enabled
J5
pins 1 & 2 closed

VGA feature connector interface disabled
J5
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
4MB
(1) 1M x 36
NONE
NONE
NONE
8MB
(1) 1M x 36
(1) 1M x 36
NONE
NONE
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
8MB
(1) 2M x 36
NONE
NONE
NONE
16MB
(1) 2M x 36
(1) 2M x 36
NONE
NONE
16MB
(1) 4M x 36
NONE
NONE
NONE
24MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
NONE
32MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
32MB
(1) 4M x 36
(1) 4M x 36
NONE
NONE
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
NONE
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Size
Bank 0
TAG
128KB
(4) 32K x 8
(1) 8K x 8

CACHE JUMPER CONFIGURATION
Type
J2
Write through
Open
Write back
Closed

CPU TYPE CONFIGURATION
Type
J3
80486SX
pins 1 & 2 closed
80486DX
pins 2 & 3 closed
80486DX2
pins 2 & 3 closed
Pentium Overdrive
pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed
J4G
25MHz
Open
33MHz
Closed
50iMHz
Open
66iMHz
Closed
