486 MODEL 403EISA Motherboard Settings and Configuration

Processor	80486DX
Processor Speed	33MHz
Chip Set	Unidentified
Max. Onboard DRAM	64MB
Cache	8KB
BIOS	Phoenix
Dimensions	355mm x 304mm
I/O Options	Parallel ports (2), PS/2 mouse port, serial ports (2), floppy drive interface
NPU Options	4167

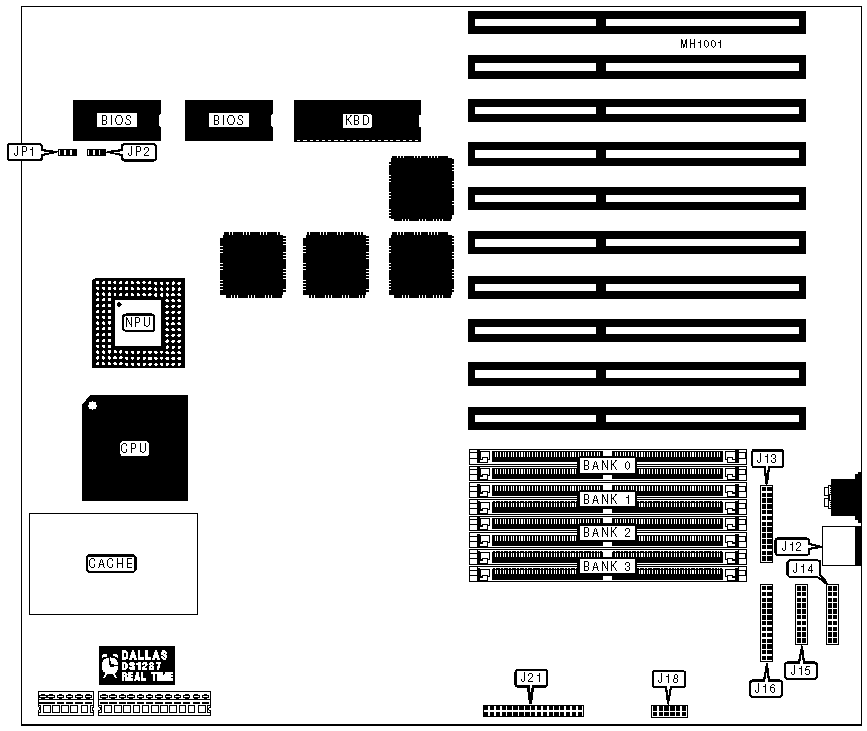

CONNECTIONS
Purpose	Location	Purpose	Location
Mouse port	J12	Parallel port	J16
Auxillary parallel port	J13	Front panal indicators	J18
Serial port 1	J14	Floppy drive interface	J21
Serial port 2	J15

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP1	pins 1 & 2 closed
	CMOS memory clear	JP1	pins 2 & 3 closed
»	Password enabled	JP2	pins 1 & 2 closed
	Password disabled	JP2	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
2MB	(2) 256K x 36	NONE	NONE	NONE
4MB	(2) 256K x 36	(2) 256K x 36	NONE	NONE
6MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	NONE
8MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36
8MB	(2) 1M x 36	NONE	NONE	NONE
10MB	(2) 256K x 36	(2) 1M x 36	NONE	NONE
12MB	(2) 256K x 36	(2) 256K x 36	(2) 1M x 36	NONE
14MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	(2) 1M x 36
16MB	(2) 1M x 36	(2) 1M x 36	NONE	NONE
18MB	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36	NONE
20MB	(2) 256K x 36	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	NONE
26MB	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 4M x 36	NONE	NONE	NONE
34MB	(2) 256K x 36	(2) 4M x 36	NONE	NONE
36MB	(2) 256K x 36	(2) 256K x 36	(2) 4M x 36	NONE
38MB	(2) 256K x 36	(2) 256K x 36	(2) 256K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36	NONE	NONE
42MB	(2) 256K x 36	(2) 1M x 36	(2) 4M x 36	NONE
44MB	(2) 256K x 36	(2) 256K x 36	(2) 1M x 36	(2) 4M x 36
48MB	(2) 1M x 36	(2) 1M x 36	(2) 4M x 36	NONE
50MB	(2) 256K x 36	(2) 1M x 36	(2) 1M x 36	(2) 4M x 36
56MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36	(2) 4M x 36
64MB	(2) 4M x 36	(2) 4M x 36	NONE	NONE
