HOT-591P Motherboard Settings and Configuration

SHUTTLE COMPUTER INTERNATIONAL, INC.

HOT-591P

Device Type
Mainboard
Processor
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/IDT C6/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX
Processor Speed
90/100/120/133/150/166/200/233/266/300MHz
Chip Set
VIA MVP3
Maximum Onboard Memory
256MB (EDO & SDRAM supported)
Cache
512KB
BIOS
Award
Dimensions
220mm x 220mm
I/O Options
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, wake on LAN connector

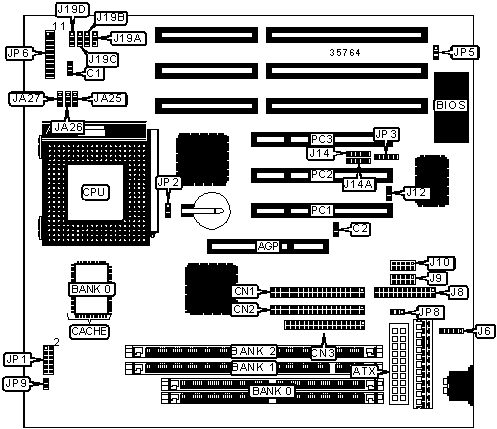

CONNECTIONS
Purpose
Location
Purpose
Location
AGP slot
AGP
USB connector 1
J14
ATX power connector
ATX
USB connector 2
J14A
CPU fan power
C1
IR connector
JP3
Chassis fan power
C2
Reset switch
JP6/pins 1 & 2
IDE interface 2
CN1
IDE interface LED
JP6/pins 3 & 4
IDE interface 1
CN2
Green PC LED
JP6/pins 5 & 6
Floppy drive interface
CN3
Green PC connector
JP6/pins 7 & 8
PS/2 mouse interface
J6
Soft off power supply
JP6/pins 9 & 10
Parallel port
J8
Speaker
JP6/pins 11 - 15
Serial port 2
J9
Power LED & keylock
JP6/pins 17 - 20
Serial port 1
J10
32-bit PCI slots
PC1 – PC3
Wake on LAN connector
J12

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP2
Pins 1 & 2 closed

CMOS memory clear
JP2
Pins 2 & 3 closed

Flash BIOS voltage select 12v
JP5
Pins 2 & 3 closed

Flash BIOS voltage select 5v
JP5
Pins 1 & 2 closed

Power supply select AT
JP8
Pins 2 & 3 closed

Power supply select ATX
JP8
Pins 1 & 2 closed

SIMM CONFIGURATION
Size
Bank 0
8MB
(2) 1M x 36
16MB
(2) 2M x 36
32MB
(2) 4M x 36
64MB
(2) 8M x 36
128MB
(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(1) 1M x 64
None
16MB
(1) 2M x 64
None
16MB
(1) 1M x 64
(1) 1M x 64
24MB
(1) 2M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
32MB
(1) 2M x 64
(1) 2M x 64
40MB
(1) 4M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
64MB
(1) 8M x 64
None
64MB
(1) 4M x 64
(1) 4M x 64
72MB
(1) 8M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
128MB
(1) 16M x 64
None
128MB
(1) 8M x 64
(1) 8M x 64
136MB
(1) 16M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 16M x 64
Note: Board accepts SDRAM memory.

DIMM FREQUENCY SELECTION
Setting
JA25
JP9
Synchronous with system clock
Pins 2 & 3 closed
Open
Synchronous with AGP clock
Pins 1 & 2 closed
Closed

CACHE CONFIGURATION
Size
Bank 0
512KB
(1) 64K x 64

CPU SPEED SELECTION (CX 6X86)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
150MHz
60MHz
2x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz
66MHz
2x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
150MHz
60MHz
2x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz
66MHz
2x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
150MHz
60MHz
2x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz
66MHz
2x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
150MHz
60MHz
2x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz
66MHz
2x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
200MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
233MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
233MHz
75MHz
2.5x
2 & 3
2 & 3
5 & 6, 7 & 8, 9 & 10
266MHz
66MHz
3.5x
2 & 3
2 & 3
3 & 4, 5 & 6
266MHz
75MHz
3x
2 & 3
2 & 3
5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
200MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz
75MHz
2x
2 & 3
2 & 3
5 & 6, 7 & 8
233MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
233MHz
75MHz
2.5x
2 & 3
2 & 3
5 & 6, 7 & 8, 9 & 10
266MHz
66MHz
3.5x
2 & 3
2 & 3
3 & 4, 5 & 6
266MHz
75MHz
3x
2 & 3
2 & 3
5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IDT C6)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
150MHz
60MHz
2.5x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10
180MHz
60MHz
3x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 9 & 10
200MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
90MHz
60MHz
1.5x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6
100MHz
66MHz
1.5x
2 & 3
2 & 3
3 & 4, 5 & 6
120MHz
60MHz
1.5x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6
133MHz
66MHz
1.5x
2 & 3
2 & 3
3 & 4, 5 & 6
166MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
166MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
233MHz
66MHz
3.5x
2 & 3
2 & 3
3 & 4, 5 & 6
266MHz
66MHz
4x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 11 & 12
300MHz
66MHz
4.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6-2)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
266MHz
100MHz
2.5x
1 & 2
2 & 3
7 & 8, 9 & 10
300MHz
100MHz
3x
1 & 2
2 & 3
9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
90MHz
60MHz
1.5x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6
100MHz
66MHz
1.5x
2 & 3
2 & 3
3 & 4, 5 & 6
120MHz
60MHz
2x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8
133MHz
66MHz
2x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8
150MHz
60MHz
2.5x
2 & 3
2 & 3
1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10
166MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed
Clock speed
Multiplier
JA26
JA27
JP1
166MHz
66MHz
2.5x
2 & 3
2 & 3
3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz
66MHz
3x
2 & 3
2 & 3
3 & 4, 5 & 6, 9 & 10
233MHz
66MHz
3.5x
2 & 3
2 & 3
3 & 4, 5 & 6
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage
J19A
J19B
J19C
J19D
Auto
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 2 & 3 closed
Pins 2 & 3 closed
2.0v
Open
Open
Open
Open
2.1v
Pins 1 & 2 closed
Open
Open
Open
2.2v
Open
Pins 1 & 2 closed
Open
Open
2.3v
Pins 1 & 2 closed
Pins 1 & 2 closed
Open
Open
2.4v
Open
Open
Pins 1 & 2 closed
Open
2.5v
Pins 1 & 2 closed
Open
Pins 1 & 2 closed
Open
2.6v
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
Open
2.7v
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed
Open
2.8v
Open
Open
Open
Pins 1 & 2 closed
2.9v
Pins 1 & 2 closed
Open
Open
Pins 1 & 2 closed
3.0v
Open
Pins 1 & 2 closed
Open
Pins 1 & 2 closed
3.1v
Pins 1 & 2 closed
Pins 1 & 2 closed
Open
Pins 1 & 2 closed
3.2v
Open
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
3.3v
Pins 1 & 2 closed
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
3.4v
Open
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed
3.52v
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed
Pins 1 & 2 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

HOT-591P Motherboard Settings and Configuration

Search

My Books

Discover

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/IDT C6/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX
Processor Speed	90/100/120/133/150/166/200/233/266/300MHz
Chip Set	VIA MVP3
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Cache	512KB
BIOS	Award
Dimensions	220mm x 220mm
I/O Options	32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, wake on LAN connector

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	USB connector 1	J14
ATX power connector	ATX	USB connector 2	J14A
CPU fan power	C1	IR connector	JP3
Chassis fan power	C2	Reset switch	JP6/pins 1 & 2
IDE interface 2	CN1	IDE interface LED	JP6/pins 3 & 4
IDE interface 1	CN2	Green PC LED	JP6/pins 5 & 6
Floppy drive interface	CN3	Green PC connector	JP6/pins 7 & 8
PS/2 mouse interface	J6	Soft off power supply	JP6/pins 9 & 10
Parallel port	J8	Speaker	JP6/pins 11 - 15
Serial port 2	J9	Power LED & keylock	JP6/pins 17 - 20
Serial port 1	J10	32-bit PCI slots	PC1 – PC3
Wake on LAN connector	J12

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP2	Pins 1 & 2 closed
	CMOS memory clear	JP2	Pins 2 & 3 closed
	Flash BIOS voltage select 12v	JP5	Pins 2 & 3 closed
	Flash BIOS voltage select 5v	JP5	Pins 1 & 2 closed
	Power supply select AT	JP8	Pins 2 & 3 closed
	Power supply select ATX	JP8	Pins 1 & 2 closed

SIMM CONFIGURATION
Size	Bank 0
8MB	(2) 1M x 36
16MB	(2) 2M x 36
32MB	(2) 4M x 36
64MB	(2) 8M x 36
128MB	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
Note: Board accepts SDRAM memory.

DIMM FREQUENCY SELECTION
Setting	JA25	JP9
Synchronous with system clock	Pins 2 & 3 closed	Open
Synchronous with AGP clock	Pins 1 & 2 closed	Closed

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz	66MHz	2x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz	66MHz	2x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz	66MHz	2x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8
166MHz	66MHz	2x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
200MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
233MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
233MHz	75MHz	2.5x	2 & 3	2 & 3	5 & 6, 7 & 8, 9 & 10
266MHz	66MHz	3.5x	2 & 3	2 & 3	3 & 4, 5 & 6
266MHz	75MHz	3x	2 & 3	2 & 3	5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
200MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz	75MHz	2x	2 & 3	2 & 3	5 & 6, 7 & 8
233MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
233MHz	75MHz	2.5x	2 & 3	2 & 3	5 & 6, 7 & 8, 9 & 10
266MHz	66MHz	3.5x	2 & 3	2 & 3	3 & 4, 5 & 6
266MHz	75MHz	3x	2 & 3	2 & 3	5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IDT C6)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10
180MHz	60MHz	3x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 9 & 10
200MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6
100MHz	66MHz	1.5x	2 & 3	2 & 3	3 & 4, 5 & 6
120MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6
133MHz	66MHz	1.5x	2 & 3	2 & 3	3 & 4, 5 & 6
166MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
166MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
233MHz	66MHz	3.5x	2 & 3	2 & 3	3 & 4, 5 & 6
266MHz	66MHz	4x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 11 & 12
300MHz	66MHz	4.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6-2)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
266MHz	100MHz	2.5x	1 & 2	2 & 3	7 & 8, 9 & 10
300MHz	100MHz	3x	1 & 2	2 & 3	9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6
100MHz	66MHz	1.5x	2 & 3	2 & 3	3 & 4, 5 & 6
120MHz	60MHz	2x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8
133MHz	66MHz	2x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10
166MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JA26	JA27	JP1
166MHz	66MHz	2.5x	2 & 3	2 & 3	3 & 4, 5 & 6, 7 & 8, 9 & 10
200MHz	66MHz	3x	2 & 3	2 & 3	3 & 4, 5 & 6, 9 & 10
233MHz	66MHz	3.5x	2 & 3	2 & 3	3 & 4, 5 & 6
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage	J19A	J19B	J19C	J19D
Auto	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
2.0v	Open	Open	Open	Open
2.1v	Pins 1 & 2 closed	Open	Open	Open
2.2v	Open	Pins 1 & 2 closed	Open	Open
2.3v	Pins 1 & 2 closed	Pins 1 & 2 closed	Open	Open
2.4v	Open	Open	Pins 1 & 2 closed	Open
2.5v	Pins 1 & 2 closed	Open	Pins 1 & 2 closed	Open
2.6v	Open	Pins 1 & 2 closed	Pins 1 & 2 closed	Open
2.7v	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Open
2.8v	Open	Open	Open	Pins 1 & 2 closed
2.9v	Pins 1 & 2 closed	Open	Open	Pins 1 & 2 closed
3.0v	Open	Pins 1 & 2 closed	Open	Pins 1 & 2 closed
3.1v	Pins 1 & 2 closed	Pins 1 & 2 closed	Open	Pins 1 & 2 closed
3.2v	Open	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
3.3v	Pins 1 & 2 closed	Open	Pins 1 & 2 closed	Pins 1 & 2 closed
3.4v	Open	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
3.52v	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
