CELEBRIS GL Motherboard Settings and Configuration

DIGITAL EQUIPMENT CORPORATION

CELEBRIS GL

Processor
Pentium
Processor Speed
90/100/120/133MHz
Chip Set
Intel
Video Chip Set
Matrox
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
8MB
Cache
256/512KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
Ethernet 10Base5 connector, Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, VGA feature connector, VGA port, riser slot, cache slot, VRM connector, line in connector, speaker out connector, microphone connector, CD-ROM audio out
NPU Options
None

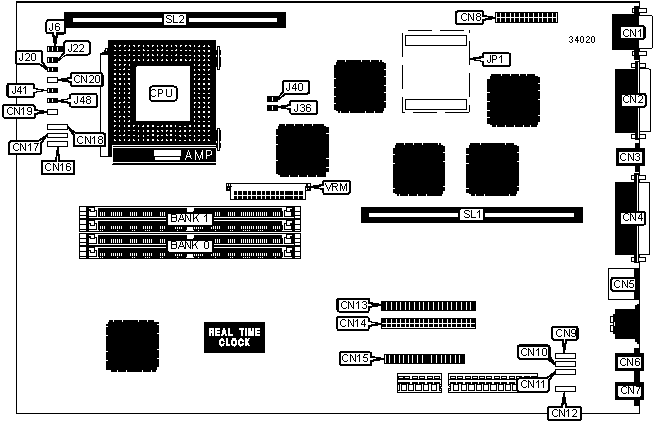

CONNECTIONS
Purpose
Location
Purpose
Location
VGA port
CN1
IDE interface 2
CN13
Ethernet 10Base2 connector
CN2
IDE interface 1
CN14
Ethernet 10BaseT connector
CN3
Floppy drive interface
CN15
Parallel port
CN4
Speaker
CN16
PS/2 mouse port
CN5
IDE active display
CN17
Line in connector
CN6
DC on switch
CN18
Speaker out connector
CN7
IDE interface LED
CN19
VGA feature connector
CN8
Chassis fan power
CN20
CD-ROM audio out
CN9
Riser slot
SL1
CD-ROM audio out
CN10
Cache slot
SL2
CD-ROM audio out
CN11
VRM connector
VRM
Microphone connector
CN12

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Flash BIOS boot block disabled
J6
Pins 1 & 2 closed

Flash BIOS boot block enabled
J6
Pins 2 & 3 closed
»
Password normal operation
J20
Open

Password clear
J20
Closed
»
Flash BIOS normal operation
J22
Open

Flash BIOS recovery mode
J22
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 32
None
16MB
(2) 2M x 32
None
16MB
(2) 1M x 32
(2) 1M x 32
24MB
(2) 1M x 32
(2) 2M x 32
32MB
(2) 4M x 32
None
32MB
(2) 2M x 32
(2) 2M x 32
40MB
(2) 1M x 32
(2) 4M x 32
48MB
(2) 2M x 32
(2) 4M x 32
64MB
(2) 8M x 32
None
64MB
(2) 4M x 32
(2) 4M x 32
72MB
(2) 1M x 32
(2) 8M x 32
80MB
(2) 2M x 32
(2) 8M x 32
96MB
(2) 4M x 32
(2) 8M x 32
128MB
(2) 8M x 32
(2) 8M x 32
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Size
SL1
256KB
256KB module installed
512KB
512KB module installed

VIDEO MEMORY CONFIGURATION
Size
Bank 0
JP1
2MB
2MB
None
8MB
2MB
Module installed
Note: Bank 0 is factory installed and is not configurable. The location of Bank 0 is unidentified.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
J36
J40
J41
J48
90MHz
60MHz
1.5x
Closed
Open
Open
Open
100MHz
66MHz
1.5x
Closed
Closed
Open
Open
120MHz
60MHz
2x
Closed
Open
Closed
Open
133MHz
66MHz
2x
Closed
Closed
Closed
Open
