FM519 Motherboard Settings and Configuration

Device Type	Mainboard
Processor	CX GX86
Processor Speed	120/133/150MHz
Chip Set	Cyrix
Video Chip Set	Unidentified
Maximum Onboard Memory	128MB (EDO supported) Unified Memory Architecture (UMA)
Cache	None
BIOS	Phoenix
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, game interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, S-VGA port, riser slot, line in, line out, audio in – CD-ROM, modem connector,IR connector, RCA jack
NPU Options	None

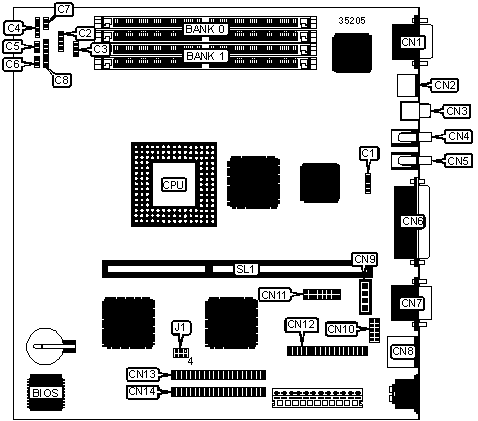

CONNECTIONS
Purpose	Location	Purpose	Location
Modem connector	C1	Line in	CN5
External battery	C2	Parallel port	CN6
Chassis fan power	C3	Serial port 1	CN7
Speaker	C4	PS/2 mouse port	CN8
Reset switch	C5	Audio in – CD-ROM	CN9
P/S LED	C6	Serial port 2	CN10
IDE interface LED	C7	Game interface	CN11
IR connector	C8	Floppy drive interface	CN12
VGA port	CN1	IDE interface 1	CN13
S-VGA port	CN2	IDE interface 2	CN14
RCA jack	CN3	Riser slot	SL1
Line out	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Password normal operation	J1/pins 1 & 4	Open
	Password clear	J1/pins 1 & 4	Closed
»	Factory configured - do not alter	J1/pins 2 & 5	Unidentified
	NTSB enabled	J1/pins 3 & 6	Open
	PAL enabled	J1/pins 3 & 6	Closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
