POWERCACHE 4 REV. A Motherboard Settings and Configuration

Processor	80486DX
Processor Speed	25MHz
Chip Set	Unidentified
Max. Onboard DRAM	32MB (on external memory card)
Cache	128KB
BIOS	Phoenix
Dimensions	355mm x 304mm
I/O Options	32-bit external memory card, floppy drive interface, parallel port, PS/2 mouse port, serial port, hard drive controller slot, VGA slot
NPU Options	None

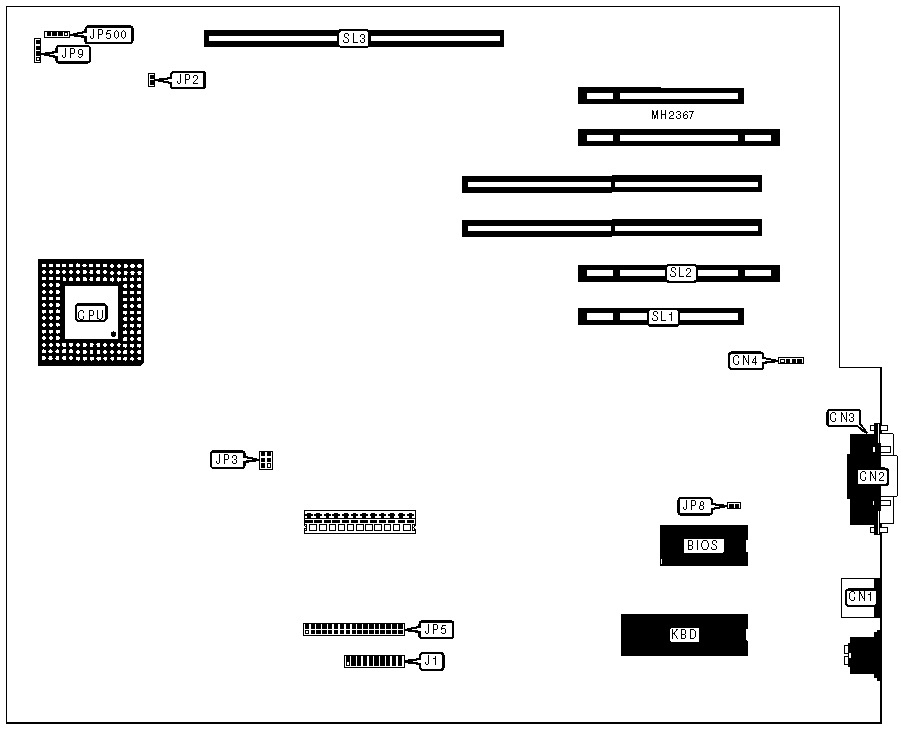

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	Speaker	JP9
Serial port	CN2	Front panel connector	JP500
Parallel port	CN3	Hard drive controller slot	SL1
Chassis fan power	CN4	VGA slot	SL2
Reset switch	JP2	32-bit external memory card	SL3
Floppy drive interface	JP5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	J1	Open
»	Factory configured - do not alter	JP3	Open
»	Factory configured - do not alter	JP8	Open

DRAM CONFIGURATION (MEMORY CARD)
Size	Bank 0	Bank 1
2MB	(8) 256K x 9	NONE
4MB	(8) 256K x 9	(8) 256K x 9
8MB	(8) 1M x 9	NONE
10MB	(8) 256K x 9	(8) 1M x 9
10MB	(8) 1M x 9	(8) 256K x 9
16MB	(8) 1M x 9	(8) 1M x 9
32MB	(8) 4M x 9	NONE

CACHE CONFIGURATION
Size	Bank 0
128KB	(4) 32K x 8
Note: The chip configuration and location of cache is unidentified.
