COMMWAVE 56K PNP (REV.1.0) modem/telephone/ISDN Settings and Configuration

Card Type	Modem (synchronous/asynchronous), Voice
Chipset	PCtel
Maximum Modem Rate	56.0Kbps
Maximum Fax Rate	14.4Kbps
Fax Class	Class I & II
Modem Modulation Protocol	Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34
Fax Modulation Protocol	ITU-T V.17, V.21 CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Data Bus	16-bit ISA

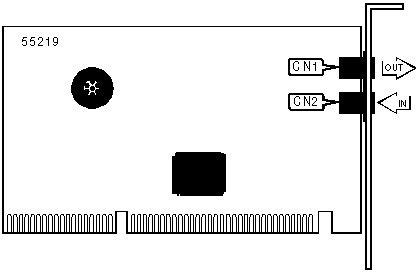

CONNECTIONS
Function	Label		Function		Label
Line out		CN1		Line in		CN2

SUPPORTED COMMAND SET

Basic AT Commands

AT, A/

A, E, H, M, O, P, Q, T, V, W, X, Y, Z

&C, &F, &G, &P, &W, &Z

Extended AT Commands

\A, \B, \G, \K, \L, \N

%C, %L, %Q

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S18, S25, S30, S32, S33, S38, S91

Special Commands

#CID

Voice Commands

#BDR, #MDL?, #MFR?, #REV?, #SPK, #TL, #VBQ?, #VBT, #VCI?, #VLS, #VRA, #VRN, #VRX

#VSD, #VSK, #VSP, #VSS, #VTD, #VTS, #VTX

Note: See MHI Help File for full command documentation.

AUTO-MODE DETECTION
Type:	Configuration
Format:	AT [cmds] Nn [cmds]
Description:	Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed.
Command	Function
N0	Auto-mode detection disabled. Handshake begins at line speed designated by the S37 register
N1	Auto-mode detection enabled. Handshake conducted according to highest available line speed

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols. Originate mode will transmit at 75bps and receive at 1200bps; answer mode will transmit at 1200bps and receive at 75bps
Command	Protocol
B0	ITU-T V.22
í B1	Bell 212A
B2	ITU-T V.23

CONFIGURATION PROFILES
Type:	Immediate
Format:	AT [cmds] &V [cmds]
Description:	Displays active and stored configuration profiles
Command	Function
&V0	Display active profile
&V1	Display stored profiles
&V2	Display stored telephone numbers

DATA SET READY (DSR)
Type:	Configuration
Format:	AT [cmds] &Sn [cmds]
Description:	Selects DSR options
Command	Function
í &S0	DSR forced high
&S1	DSR high only while modem is handshaking or connected

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
í &D0	DTR forced high
&D1	DTR drop causes online command mode
&D2	DTR drop causes hang-up
&D3	DTR drop causes reset. &Y determines power-up profile

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Command	Function
DL	Re-dial last number
DSn	Dial stored telephone number n
DW	Dialing resumed following dial tone detection
D,	Dialing paused for amount of time specified in S8 register
D@	Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by 5 seconds of silence
D!	Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.
D;	Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Enables flow control options
Command	Function
&K0	Flow control disabled
&K3	RTS/CTS flow control enabled
&K4	XON/XOFF flow control enabled
&K5	Transparent XON/XOFF flow control enabled
&K6	RTS/CTS & XON/XOFF flow control enabled

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I0	Reports product code
I1	Reports hardware variation
I2	Reports internal code
I3	Reports software revision number
I4	Reports product feature listing

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume. Hardware currently limits speaker settings to on/off
Command	Function
L0	Speaker disabled
í L1	Low volume setting
L2	Low volume setting
L3	Low volume setting

TEST MODES
Type:	Immediate
Format:	AT [cmds] &Tn
Description:	Selects test options
Command	Function
&T0	End current test
&T1	Begin local analog loopback test

TRELLIS CODING
Type:	Configuration
Format:	AT [cmds] &Un [cmds]
Description:	Enables/disables trellis coding
Command	Function
í&U0	V.32 trellis coding enabled
&U1	V.32 trellis coding disabled

AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD
Type:	Configuration
Format:	AT [cmds] %En [cmds]
Description:	Controls auto-retrain mode and fallback/fall-forward
Command	Function
%E0	Auto-retrain disabled
%E1	Auto-retrain enabled
í %E2	Auto-retrain & fallback enabled
%E3	Auto-retrain & fast hang-up enabled

COUNTRY SELECT
Type:	Configuration
Format:	AT [cmds] %In [cmds]
Description:	Selects country parameters. %I queries settings
Command	Function
%I0	United States
%I2	France
%I3	Germany
%I4	Italy
%I5	Swedan
%I6	United Kingdom
%I7	Japan
%I8	Australia
%I9	Spain
%I10	Taiwan
%I11	Singapore
%I12	Korea
%I13	Switzerland
%I14	Norway
%I15	Netherlands
%I16	Belgium
%I17	Canada
%I18	Ireland
%I19	Portugal
%I20	Poland
%I21	Hungary
%I22	Finland
%I23	Denmark

DYNAMIC CPU LOADING
Type:	Configuration
Format:	AT [cmds] %Nn [cmds]
Description:	Selects maximaum allowable percentage for CPU loading
Command		Function
%N0		Dynamic CPU loading disabled
%N1		Dynamic CPU loading not to exceed 10%
%N2		Dynamic CPU loading not to exceed 20%
%N3		Dynamic CPU loading not to exceed 30%
%N4		Dynamic CPU loading not to exceed 40%
%N5		Dynamic CPU loading not to exceed 50%
%N6		Dynamic CPU loading not to exceed 60%
í %N7		Dynamic CPU loading not to exceed 70%
%N8		Dynamic CPU loading not to exceed 80%
%N9		Dynamic CPU loading not to exceed 90%

ENCODING
Type:	Configuration
Format:	AT [cmds] %An [cmds]
Description:	Selects encoding
Command	Function
%A0	m - law encoding
%A1	A - law encoding

INVALID TIES RESULT CODE
Type:	Configuration
Format:	AT [cmds] *Qn [cmds]
Description:	Controls the result code sent when an invalid TIES escape sequence is detected after OK response has been sent
Command	Function
í *Q0	CONNECT xxxx result code sent when an invalid TIES escape sequence is detected after OK response has been sent
*Q1	xxxx result code sent when an invalid TIES escape sequence is detected after OK response has been sent

BIT RATE
Type:	Register
Format	AT [cmds] S34=n [cmds]
Range:	0-32
Unit:	32000 + S34 * 2000bps
Description:	Sets maximum bit rate for 56Kbps

V.34 BAUD RATE
Type:	Register
Format	AT [cmds] S35=n [cmds]
Description:	Sets the maximum allowable baud rate for V.34 negotiation.
Command	Function
S35=0	2400bps
S35=1	2743bps
S35=2	2800bps
S35=3	3000bps
S35=4	3200bps
S35=5	3429bps

DCE LINE SPEED
Type:	Register
Format	AT [cmds] S37=n [cmds]
Description:	Sets the maximum allowable data exchange rate attempted during handshake process.
Command	Function
S37=0	Attempt to connect at highest possible speed
S37=3	300bps
S37=4	1200bps
S37=6	2400bps
S37=7	4800bps
S37=8	7200bps
S37=9	9600bps
S37=10	12.0Kbps
S37=11	14.4Kbps
S37=12	V.34
S37=13	56.0Kbps

CONNECTION FAILURE CODES
Type:	Register
Format	AT [cmds] S86? [cmds]
Description:	Reports codes which correspond to the possible causes of a connection failure
Value	Meaning
0	Normal hang up
4	Carrier signal lost
5	No error-control detected for remote modem during feature negotiation
6	Remote modem failed to respond to feature negotiation
9	No common protocol found
12	No failure - remote modem disconnected normally
13	Remote modem failed to respond after 10 re-transmissions same message
14	Violation of negotiated protocol caused failure
15	Loss of data compression caused failure
20	Long Space Disconnect (Y1) time limit reached

MODE SELECTION
Type:	Immediate
Format:	AT [cmds] #CLS=n [cmds]
Description:	Selects which mode the modem will operate in.
Command	Function
#CLS=0	Modem will operate in data mode.
#CLS=1	Modem will operate in fax class I mode.
#CLS=8	Modem will operate in voice mode.

RECORD GAIN
Type:	Configuration
Format:	AT [cmds] #RG=hhhh [cmds]
Default:	7FFF
Range:	0000 - 7FFF
Unit:	Unidentified (hexadecimal)
Description:	Sets the record gain. #RG? queries value

VOICE SAMPLE QUALITY
Type:	Configuration
Format:	AT [cmds] #VBS=n [cmds]
Description:	Selects the number of bits per sample that the modem records.
Note:	Only 4 bits per sample compression ratio is supported, The #VBS? command will return 4.
Command	Function
í #VBS=4	Modem records 4 bits per sample in ADPCM encoding.

VOICE SAMPLING RATE
Type:	Configuration
Format:	AT [cmds] #VSR=n [cmds]
Description:	Sets the sampling rate used when recording voice signals.
Command	Function
#VSR=8000	Selects a sampling rate of 8000Hz
