COURIER 5 IO card Settings and Configuration

Card Type	Multi I/O card
Chipset/Controller	Unknown
I/O Options	Game port, parallel port, serial ports (2)
Maximum DRAM	N/A

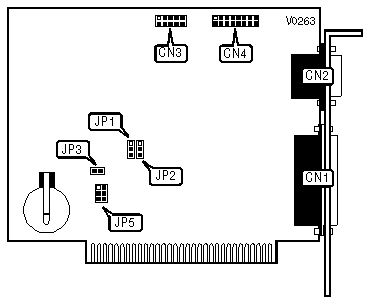

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Serial port 2	CN3
Serial port 1	CN2	Game port	CN4

SERIAL PORT CONFIGURATION
Port 1		Port 2	System Port	JP1	JP2	JP5
»	COM1	COM2	N/A	Pins 2 & 3	Pins 1 & 2	Pins 1, 2, 5 & 6
	COM2	COM1	N/A	Pins 1 & 2	Pins 2 & 3	Pins 2, 3, 4 & 5
	COM1	N/A	COM2	Pins 2 & 3	N/A	Pins 1 & 2
	COM2	N/A	COM1	Pins 1 & 2	N/A	Pins 2 & 3
Note: Pins designated should be in the closed position.

PARALLEL PORT CONFIGURATION
LPT		JP3
»	1	Open
	2	Closed
