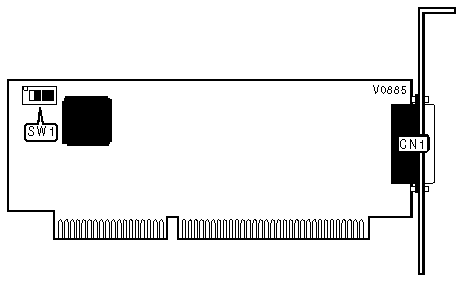

SST ISA MULTIPORT BOARD IO card Settings and Configuration

EQUINOX SYSTEMS, INC.

SST ISA MULTIPORT BOARD

Category
Serial controller
Chipset Controller
Equinox Systems, Inc.
I /O Options Supported
Up to 8 serial ports
Maximum Onboard Memory
N/A

CONNECTIONS
Purpose
Location
RS-232 interface - DB-25
CN1

I/O ADDRESS
Address
SW1/1
SW1/2
SW1/3
SW1/4
»
200h
Off
Off
Off
Off

220h
On
Off
Off
Off

240h
Off
On
Off
Off

260h
On
On
Off
Off

280h
Off
Off
On
Off

2A0h
On
Off
On
Off

2C0h
Off
On
On
Off

2E0h
On
On
On
Off

300h
Off
Off
Off
On

320h
On
Off
Off
On

340h
Off
On
Off
On

360h
On
On
Off
On

380h
Off
Off
On
On

3A0h
On
Off
On
On

3C0h
Off
On
On
On

3E0h
On
On
On
On
