G-8 SIX PAK PLUS IO card Settings and Configuration

AST RESEARCH, INC.

G-8 SIX PAK PLUS

Card Type
Memory Expansion/Multi-I/O
Chipset Controller
Unidentified
I/O Options
Parallel port, Serial port (2)
Maximum Dram
384KB

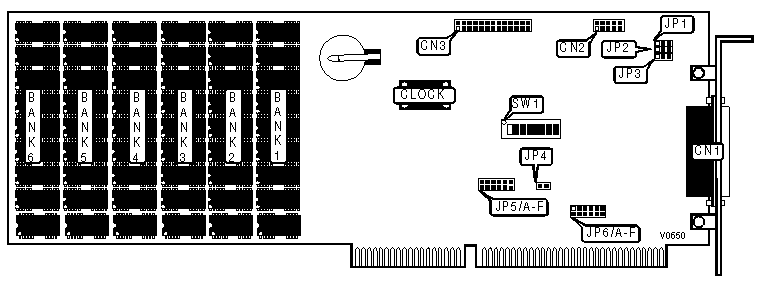

CONNECTIONS
Purpose
Location
Purpose
Location
25-pin serial port external
CN1
25-pin parallel port
CN3
9-pin serial port Internal
CN2

PARALLEL PORT INTERRUPT SELECT
Setting
JP4
LPT1 IRQ7 enabled
Closed
LPT1 IRQ7 disabled
Open

COM1 SELECT
COM
JP5/A
JP5/B
COM1
Closed
Open
COM2
Open
Closed
Note: COM settings refer only to CN1.

PARALLEL PORT SELECT
Setting
JP5/C
JP5/D
LPT1
Closed
Open
LPT2
Open
Closed

GAME PORT SELECT
Setting
JP5/E
Enabled
Closed
Disabled
Open

CLOCK SELECT
Setting
JP5/F
Enabled
Closed
Disabled
Open

FACTORY CONFIGURED SETTING
Switch
Setting
SW1/7
N/A

PARITY SELECT
Setting
SW1/8
Enabled
On
Disabled
Off

DRAM CONFIGURATION
Starting Address
Board RAM
SW1/1
SW1/2
SW1/3
64KB
384KB
Off
Off
Off
128KB
384KB
Off
Off
On
192KB
384KB
Off
On
Off
256KB
384KB
Off
On
On
320KB
320KB
On
Off
Off
384KB
256KB
On
Off
On
448KB
192KB
On
On
Off
512KB
128KB
On
On
On

BANK CONFIGURATION
Banks Installed
Board RAM
SW1/4
SW1/5
SW1/6
None
0KB
Off
Off
Off
1
64KB
Off
Off
On
1 & 2
128KB
Off
On
Off
1 & 2 & 3
192KB
Off
On
On
1 & 2 & 3 & 4
256KB
On
Off
Off
1 & 2 & 3 & 4 & 5
320KB
On
Off
On
All Banks
384KB
On
On
Off

DRAM CONFIGURATION
Size
Bank 1
Bank 2
Bank 3
Bank 4
Bank 5
Bank 6
64KB
(9) 64K x 1
NONE
NONE
NONE
NONE
NONE
128KB
(9) 64K x 1
(9) 64K x 1
NONE
NONE
NONE
NONE
192KB
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
NONE
NONE
NONE
256KB
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
NONE
NONE
320KB
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
NONE
384KB
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1
(9) 64K x 1

INTERRUPT CONFIGURATION
IRQ
JP6/C
JP6/D
JP6/E
JP6/F
IRQ4
Closed
Open
Open
Open
IRQ5
Open
Closed
Open
Open
IRQ7
Open
Open
Closed
Open
IRQ2
Open
Open
Open
Closed

SERIAL PORT 1 CONFIGURATION
Function
JP1
Force CTS true
Pins 2 & 3 closed
CTS normal
Pins 1 & 2 closed

SERIAL PORT 1 CONFIGURATION
Function
JP2
Force DSR true
Pins 2 & 3 closed
DSR normal
Pins 1 & 2 closed

SERIAL PORT 1 CONFIGURATION
Function
JP3
Force DCD true
Pins 2 & 3 closed
DCD normal
Pins 1 & 2 closed

SERIAL PORT 1 IRQ4 SELECT
IRQ4
JP6/A
Enabled
Closed
Disabled
Open

SERIAL PORT 2 IRQ3 SELECT
IRQ3
JP6/B
Enabled
Closed
Disabled
Open
