5516DMA IO card Settings and Configuration
AMERICAN DATA AQUISITION CORPORATION
5516DMA
Card Type | Data Acquisition |
Chip Set | None |
Maximum Onboard Memory | Unidentified |
I/O Options | Analog input, digital input |
Data Bus | 8-bit ISA |
Card Size | Three-quarter length |

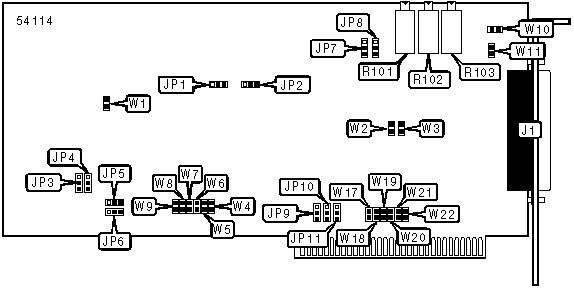

CONNECTIONS | |||
Function | Label | Function | Label |
37-pin analog/digital signals connector | J1 | A/D converter range selector | R102 |
Unipolar offset selector | R101 | Bipolar offset selector | R103 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | A/D data coding - sign extend | JP1 | Pins 1 & 2 closed |
| A/D data coding - zero extend | JP1 | Pins 2 & 3 closed |
» | A/D data coding - two's compliment | JP2 | Pins 1 & 2 closed |
| A/D data coding - straight binary | JP2 | Pins 2 & 3 closed |
» | Hardware trigger counter 0 | JP3 | Pins 1 & 2 closed |
| Hardware trigger exterior | JP3 | Pins 2 & 3 closed |
» | Port 0 (DIO0-DIO3) input | W2 | Closed |
| Port 0 (DIO0-DIO3) output | W2 | Open |
» | Port 1 (DIO4-DIO7) output | W3 | Open |
| Port 1 (DIO4-DIO7) input | W3 | Closed |
DMA CHANNEL SELECTION | |||||||
Channel | W17 | W18 | W19 | W20 | W21 | W22 | |
» | None | Open | Open | Open | Open | Open | Open |
| 1 | Closed | Open | Open | Closed | Open | Open |
| 2 | Open | Closed | Open | Open | Closed | Open |
| 3 | Open | Open | Closed | Open | Open | Closed |
ANALOG INPUT CONFIGURATION | ||||
Setting | W1 | W10 | W11 | |
» | Pseudo differential (PD) | Open | Open | Open |
| Single ended (SE) | Open | Closed | Closed |
| Fully differential (DI) | Closed | Closed | Closed |
COUNTER SOURCE SETTINGS | ||||
Counter | Setting | Label | Position | |
» | Counter 0 gate source | External (gate 0) | JP4 | Pins 2 & 3 closed |
| Counter 0 gate source | Counter 1 out INV | JP4 | Pins 1 & 2 closed |
» | Counter 2 clock source | External (clock 2) | JP5 | Pins 2 & 3 closed |
| Counter 2 clock source | 1.00 MHz oscillator | JP5 | Pins 1 & 2 closed |
» | Counter 1 clock source | External (clock 1) | JP6 | Pins 2 & 3 closed |
| Counter 1 clock source | 1.00 MHz oscillator | JP6 | Pins 1 & 2 closed |
A/D RANGE SELECTION | ||||
Polarity | Voltage | JP7 | JP8 | |
» | Bipolar | + 10V | Pins 1 & 2 closed | Pins 1 & 2 closed |
| Unipolar | +0 - 10V | Pins 2 & 3 closed | Pins 2 & 3 closed |
| Bipolar | + 5V | Pins 2 & 3 closed | Pins 1 & 2 closed |
BASE I/O ADDRESS SELECTION | |||||||
Setting | W9 | W8 | W7 | W6 | W5 | W4 | |
| 000h | Open | Open | Open | Open | Open | Open |
| 010h | Open | Open | Open | Open | Open | Closed |
| 020h | Open | Open | Open | Open | Closed | Open |
| 030h | Open | Open | Open | Open | Closed | Closed |
| 040h | Open | Open | Open | Closed | Open | Open |
» | 110h | Open | Closed | Open | Open | Open | Closed |
| 3B0h | Closed | Closed | Closed | Open | Closed | Closed |
| 3C0h | Closed | Closed | Closed | Closed | Open | Open |
| 3D0h | Closed | Closed | Closed | Closed | Open | Closed |
| 3E0h | Closed | Closed | Closed | Closed | Closed | Open |
| 3F0h | Closed | Closed | Closed | Closed | Closed | Closed |
Note: A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W9 is the Most Significant Bit and switch W4 is the Least Significant Bit. The switches have the following decimal values: W9=512, W8=256, W7=128, W6=64, W5=32, W4=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (Close=1, Open=0) | |||||||
IRQ INTERRUPT SELECTION | ||||
IRQ | JP9 | JP10 | JP11 | |
| IRQ2 | Pins 2 & 3 closed | Open | Open |
| IRQ3 | Open | Pins 2 & 3 closed | Open |
| IRQ4 | Open | Open | Pins 2 & 3 closed |
| IRQ5 | Pins 1 & 2 closed | Open | Open |
| IRQ6 | Open | Pins 1 & 2 closed | Open |
| IRQ7 | Open | Open | Pins 1 & 2 closed |
» | Disabled | Open | Open | Open |
