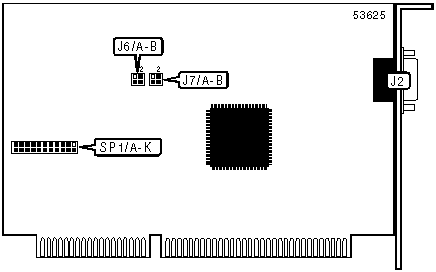

SUPER I/O 10 (NP) IO card Settings and Configuration

Card Type	Multi-I/O card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Serial port
Data Bus	16-bit ISA

CONNECTIONS
Function	Label
Serial port 1	J2

SERIAL PORT ADDRESS SELECTION
Setting		J6/A	J6/B	J7/A	J7/B
	COM1 (3F8h)	Open	Open	Closed	Open
»	COM2 (2F8h)	Open	Closed	Open	Open
	COM3 (3E8h)	Open	Open	Open	Closed
	COM4 (2E8h)	Closed	Open	Open	Open
	Disabled	Open	Open	Open	Open

SERIAL PORT INTERRUPT SELECTION
IRQ		SP1/A	SP1/B	SP1/C	SP1/D	SP1/E	SP1/F
	2	Closed	Open	Open	Open	Open	Open
	3	Open	Closed	Open	Open	Open	Open
»	4	Open	Open	Closed	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open
	6	Open	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Open	Closed
	10	Open	Open	Open	Open	Open	Open
	11	Open	Open	Open	Open	Open	Open
	12	Open	Open	Open	Open	Open	Open
	15	Open	Open	Open	Open	Open	Open
	14	Open	Open	Open	Open	Open	Open

SERIAL PORT INTERRUPT SELECTION (CONTINUED)
IRQ		SP1/G	SP1/H	SP1/I	SP1/J	SP1/K
	2	Open	Open	Open	Open	Open
	3	Open	Open	Open	Open	Open
»	4	Open	Open	Open	Open	Open
	5	Open	Open	Open	Open	Open
	6	Open	Open	Open	Open	Open
	7	Open	Open	Open	Open	Open
	10	Closed	Open	Open	Open	Open
	11	Open	Closed	Open	Open	Open
	12	Open	Open	Closed	Open	Open
	15	Open	Open	Open	Closed	Open
	14	Open	Open	Open	Open	Closed
