VESA IDE CARD Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit VL-bus
Size:	Three-quarter length, half-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

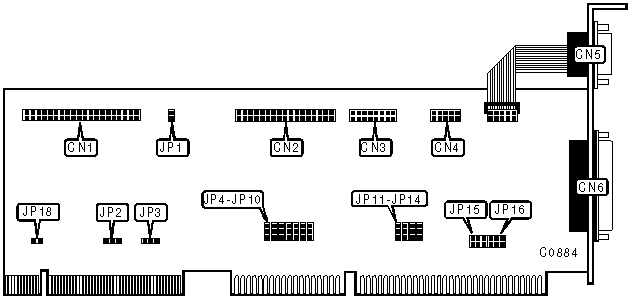

CONNECTIONS
Function	Location
40-pin primary IDE(AT) connector	CN1
34-pin cable connector - floppy drive	CN2
16-pin game port	CN3
10-pin serial port 2 - internal	CN4
9-pin serial port 1 - external, 10-pin serial port 1 internal	CN5
25-pin parallel port - external	CN6
2-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Support 2 Floppy Disks	JP4	pins 1 & 2 closed
	Reserved for factory use - do not alter	JP4	pins 2 & 3 closed
»	Floppy drive interface enabled	JP5	pins 1 & 2 closed
	Floppy drive interface disabled	JP5	pins 2 & 3 closed
»	ROM type is 2764	JP11	pins 1 & 2 closed
	ROM type is 27128	JP11	pins 2 & 3 closed
»	Parallel port IRQ 7 select	JP14	pins 2 & 3 closed
	Parallel port IRQ 5 select	JP14	pins 1 & 2 closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Serial Port 1 IRQ 4 select	JP15	pins 3 & 4 closed
	Serial Port 1 IRQ 3 select	JP15	pins 1 & 2 closed
	Serial Port 1 IRQ 5 select	JP15	pins 5 & 6 closed
»	Serial Port 2 IRQ 3 select	JP16	pins 1 & 2 closed
	Serial Port 2 IRQ 4 select	JP16	pins 3 & 4 closed
	Serial Port 2 IRQ 5 select	JP16	pins 5 & 6 closed
Note: JP18 is unidentified. Location of pin I in all jumper blocks is unidentified.

SERIAL PORTS CONFIGURATION
COM1		COM2	JP6	JP7	JP8
»	Enable	Enable	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
	Enable	Disable	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed
	COM2	COM1	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed
	Disable	COM1	pins 2 & 3 closed	pins 1 & 2 closed	pins 2 & 3 closed
	Disable	COM2	pins 1 & 2 closed	pins 1 & 2 closed	pins 2 & 3 closed
	COM2	Disable	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed
	Disable	Disable	N/A	pins 2 & 3 closed	pins 2 & 3 closed

SERIAL PORT ADDRESS SELECTION
COM1		COM2	JP12	JP13
»	COM1(3F8h)	COM2(3E8h)	pins 1 & 2 closed	pins 2 & 3 closed
	COM1(3F8h)	COM4(2E8h)	pins 1 & 2 closed	pins 2 & 3 closed
	COM3(2F8h)	COM4(2E8h)	pins 2 & 3 closed	pins 2 & 3 closed
	COM2(3E8h)	COM3(2F8h)	pins 2 & 3 closed	pins 1 & 2 closed

PARALLEL PORT ADDRESS SELECTION
LPT		JP9	JP10
	LPT1	pins 2 & 3 closed	pins 1 & 2 closed
»	LPT2	pins 1 & 2 closed	pins 1 & 2 closed
	LPT3	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	pins 2 & 3 closed

HARD DRIVE SPEED CONFIGURATION
Speed		JP2	JP3
»	Standard 0(600 ns)	pins 2 & 3 closed	pins 2 & 3 closed
	1(380 ns)	pins 1 & 2 closed	pins 2 & 3 closed
	2(200 ns)	pins 1 & 2 closed	pins 1 & 2 closed
