HAF-M Hard Disk/Floppy Controller Settings and Configuration

Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

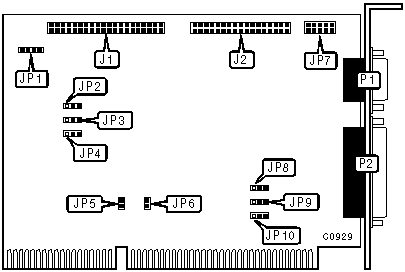

CONNECTIONS
Function	Location
40-pin primary IDE(AT) connector	J1
34-pin cable connector - floppy drive	J2
9-pin serial port 1 - external	P1
25-pin parallel port - external	P2
4-pin connector - drive active LED	JP1
10-pin serial port 2 - internal	JP7

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Parallel port is LPT1	JP2	pins 1 & 2 closed
	Parallel port is LPT2	JP2	pins 2 & 3 closed
»	Serial Port 2 is COM2	JP3	pins 2 & 3 closed
	Serial Port 2 is COM4	JP3	pins 1 & 2 closed
»	Serial Port 1 is COM1	JP4	pins 2 & 3 closed
	Serial Port 1 is COM3	JP4	pins 1 & 2 closed
»	IOCHRDY signal disabled	JP5	open
	IOCHRDY signal enabled	JP5	closed
»	Floppy drive interface enabled	JP6	closed
	Floppy drive interface disabled	JP6	open

USER CONFIGURABLE SETTINGS CONTINUED
Function		Location	Setting
»	Parallel port IRQ 7 select	JP8	pins 1 & 2 closed
	Parallel port IRQ 5 select	JP8	pins 2 & 3 closed
»	Serial Port 1 IRQ4 select	JP9	pins 1 & 2 closed
	Serial Port 1 IRQ5 select	JP9	pins 2 & 3 closed
»	Serial Port 2 IRQ3 select	JP10	pins 1 & 2 closed
	Serial Port 2 IRQ5 select	JP10	pins 2 & 3 closed
