8303-011 HFI Hard Disk/Floppy Controller Settings and Configuration
UNIDENTIFIED
8303-011 HFI
Data bus: | 16-bit, ISA |
Size: | Half-lenght, full-height card |
Hard drive supported: | Two IDE (AT) Interface drives |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Maximum heads/cyl.: | 8 heads and 1024 cylinders |
CONNECTIONS | |
Function | Location |
34-pin control cable connector-hard drive | CN1 |
40-pin IDE (AT) Interface control cable connector-internal | CN2 |
4-pin connector-drive active LED | CN3 |

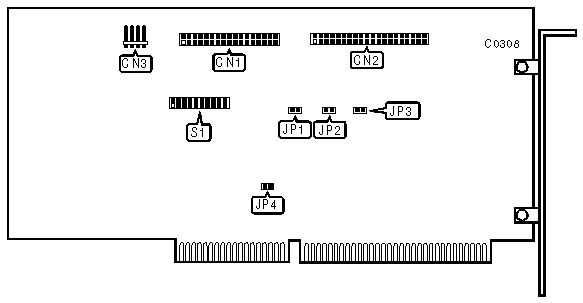

USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Factory configured - do not alter | JP1 | pins 2 & 3 closed |
| » | Factory configured - do not alter | JP2 | pins 1 & 2 closed |
| » | Supports systems greater than 12mhz | JP3 | pins 1 & 2 closed |
Supports 12mhz systems | JP3 | pins 2 & 3 closed | |
| » | Hard drive port address is 1F0-1F7h & 3F6-3F7h | JP4 | pins 1 & 2 closed |
Hard drive port address is 170-177h & 3760-377h | JP4 | pins 2 & 3 closed | |
Not used | S1/1-7 | closed | |
| » | Floppy drive enabled | S1/jumper 8 | closed |
Floppy drive disabled | S1/jumper 8 | open | |
| » | Hard drive enabled | S1/jumper 9 | closed |
Hard drive disabled | S1/jumper 9 | open | |
| » | Factory configured - do not alter | S1/jumper 10 | all |
