VL-COMBO SUPER REV.1.2 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit, VL-bus
Size:	Three/quarter-length, full-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives

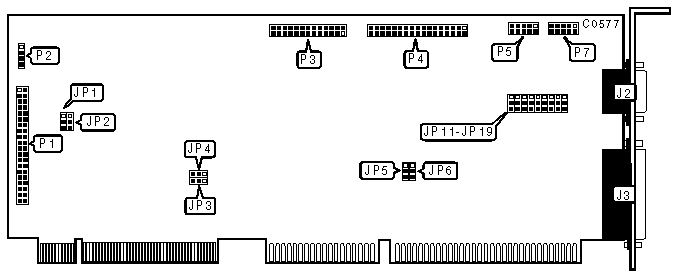

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector	P1
4-pin connector - drive active LED	P2
VGA feature connector	P3
34-pin control cable connector - floppy drive	P4
10-pin serial port 2	P5
10-pin serial port 1	P7
15-pin analog video connector	J2
25-pin parallel port	J3

IDE DRIVE SELECT
Function		JP1	JP2
»	IDE drive enabled	pins 1 & 2 closed	pins 1 & 2 closed
	IDE drive disabled	pins 2 & 3 closed	pins 2 & 3 closed

IDE DRIVE SPEED SELECT
Function		JP3	JP4
»	IDE speed = normal	pins 1 & 2 closed	pins 1 & 2 closed
	IDE speed = medium	pins 2 & 3 closed	pins 1 & 2 closed
	IDE speed = high	pins 2 & 3 closed	pins 2 & 3 closed
	Factory configuration - do not use	pins 1 & 2 closed	pins 2 & 3 closed
Note: Do not use the last setting, could cause damage.

VIDEO PORT
Function		JP5	JP6
»	VGA port enabled	pins 1 & 2 closed	pins 1 & 2 closed
	VGA port disabled	pins 2 & 3 closed	pins 2 & 3 closed

VIDEO PORT
Function		JP22	JP23
»	Parallel port uses DMA channel 1	pins 1 & 2 closed	pins 1 & 2 closed
	Parallel port uses DMA channel 3	pins 2 & 3 closed	pins 2 & 3 closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP12	pins 2 & 3 closed
»	Floppy drive enabled	JP19	pins 1 & 2 closed
	Floppy drive disabled	JP19	pins 2 & 3 closed
»	ECP/EPP printer modes enabled	JP24	pins 1 & 2 closed
	ECP/EPP printer modes disabled	JP24	pins 2 & 3 closed

PARALLEL PORT INTERRUPT SELECT
IRQ		JP11
»	IRQ7	pins 2 & 3 closed
	IRQ5	pins 1 & 2 closed
	Disabled	all pins open

PARALLEL PORT CONFIGURATION
LPT/Address		JP13	JP14
»	LPT1/378h	pins 2 & 3 closed	pins 1 & 2 closed
	LPT2/278h	pins 1 & 2 closed	pins 1 & 2 closed
	LPT3/3BCh	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	pins 2 & 3 closed

SERIAL PORT 1 CONFIGURATION
COM/Address		JP15	JP16
»	COM1/3F8h	pins 1 & 2 closed	pins 1 & 2 closed
	COM2/2F8h	pins 2 & 3 closed	pins 1 & 2 closed
	COM3/338h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	pins 2 & 3 closed

SERIAL PORT 2 CONFIGURATION
COM/Address		JP17	JP18
»	COM2/2F8h	pins 1 & 2 closed	pins 1 & 2 closed
	COM1/3F8h	pins 2 & 3 closed	pins 1 & 2 closed
	COM4/238h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	pins 2 & 3 closed
