FD 1610MNEC (CD-AT160) Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller
Hard Drives supported	Up to 7 SCSI devices
Floppy drives supported	None
Data Bus	16-bit ISA
Card Size	Half-length, half-height

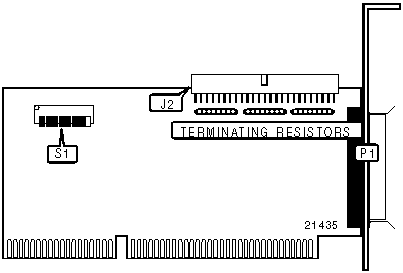

CONNECTIONS
Function	Label	Function	Label
50-pin SCSI connector - internal	J2	25-pin SCSI connector - external	P1

MEMORY ADDRESS SELECTION
Setting		S1/6	S1/7
	C8000h	Off	Off
»	CA000h	Off	On
	CE000h	On	Off
	DE000h	On	On

I/O ADDRESS SELECTION
Setting		S1/1	S1/2
»	140h	Off	Off
	150h	Off	On
	160h	On	Off
	170h	On	On

INTERRUPT SELECTION
Setting	S1/3	S1/4	S1/5
IRQ3	Off	Off	Off
IRQ5	Off	Off	On
IRQ10	Off	On	Off
IRQ11	Off	On	On
IRQ14	On	Off	On
IRQ15	On	On	Off
Disabled	On	Off	Off
Disabled	On	On	On
