NCL 539C Hard Disk/Floppy Controller Settings and Configuration

NCL AMERICA

NCL 539C

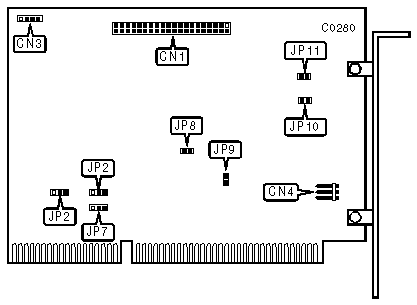

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector-internal	CN2
4-pin connector-drive active LED	CN3
5-pin connector-DC Power	CN4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	BIOS address is DC00h	JP2	pins 1-2 closed
	BIOS address is CC00h	JP2	pins 2-3 closed
»	IRQ connected directly to host	JP5	pins 1-2 closed
	IRQ Buffer mode enabled	JP5	pins 2-3 closed
»	Interrupt request is IRQ15	JP7	pins 2-3 closed
	Interrupt request is IRQ14	JP7	pins 1-2 closed
»	I/O Channel Ready disabled	JP8	open
	I/O Channel Ready enabled	JP8	closed
»	BIOS enabled	JP9	closed
	BIOS disabled	JP9	open
»	Hard drive port address is 170-177h	JP10	closed
	Hard drive port address is 1F0-1F7h	JP10	open
»	Normal Operation	JP11	open
	Diagnostic Mode	JP11	closed
