DAC960E Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit EISA
Size:	Three-quarter length, full-height card
Hard drive supported:	Up to twenty-one Fast SCSI-2 devices
Floppy drives supported:	None

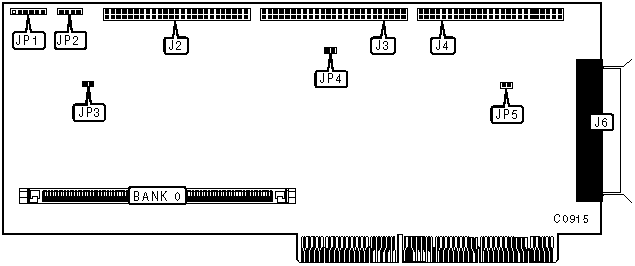

CONNECTIONS
Function	Location
50-pin SCSI channel 2 connector - internal	J2
50-pin SCSI channel 1 connector - internal	J3
50-pin SCSI channel 0 connector - internal	J4
50-pin SCSI channel 0 connector - external	J6
2-pin connector - SCSI active LED	JP1/pins 1 & 2
2-pin connector - EISA active LED	JP1/pins 3 & 4
2-pin connector - write pending LED	JP1/pins 5 & 6

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP2	N/A
»	Termination power enabled for SCSI channel 2	JP3	Closed
	Termination power disabled for SCSI channel 2	JP3	Open
»	Termination power enabled for SCSI channel 1	JP4	Closed
	Termination power disabled for SCSI channel 1	JP4	Open
»	Termination power enabled for SCSI channel 0	JP5	Closed
	Termination power disabled for SCSI channel 0	JP5	Open
Note: Enable termination power when the controller is installed at one end of a channel and disable termination power when a channel is not at the end of SCSI cable. When both connectors J4 and J6 use channel 0, disable termination to that channel.

DRAM CONFIGURATION
Size	Bank 0
2MB	(1) 512 x 36
4MB	(1) 1M x 36
8MB	(1) 2M x 36
16MB	(1) 4M x 36
32MB	(1) 8M x 36
