DAC960SX (DBX960S-3-UDR) Hard Disk/Floppy Controller Settings and Configuration
MYLEX CORPORATION

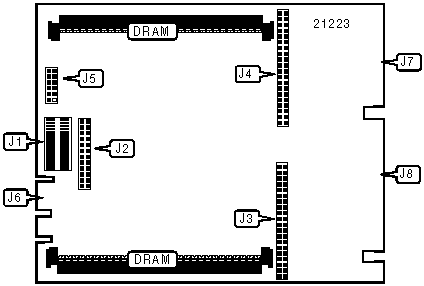

DAC960SX (DBX960S-3-UDR)
DAC960SX (DBX960S-6-UDR)
DAC960SX (DBX960S-6-FWR)
Card Type | Hard drive controller card |
Processor | RISC |
Maximum Onboard Memory | 128MB DRAM (EDO supported) |
Hard Drives supported | Up to 30 Ultra SCSI devices |
Floppy drives supported | None |
Data Bus | Up to two host Single-ended/Differential Wide Ultra-SCSI channels |
Form Factor Size | 5.25 inch |
RAID levels supported | 0, 1, 0+1, 3, 5, JBOD |
CONNECTIONS | |||
Function | Location | Function | Location |
LCD panel interface | J1 | Diagnostic port | J6 |
Battery back-up | J2 | Edge connector | J7 |
Daughterboard connector 1 | J3 | Edge connector | J8 |
Daughterboard connector 2 | J4 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Channel 0 termination enabled | J5/pins 1 & 2 | Closed |
| Channel 0 termination disabled | J5/pins 1 & 2 | Open | |
| » | Channel 1 termination enabled | J5/pins 3 & 4 | Closed |
| Channel 1 termination disabled | J5/pins 3 & 4 | Open | |
| » | Host channel 0 termination enabled | J5/pins 5 & 6 | Closed |
| Host channel 0 termination disabled | J5/pins 5 & 6 | Open | |
| » | Factory configured - do not alter | J5/pins 7 & 8 | Open |
| » | Factory configured - do not alter | J5/pins 9 & 10 | Open |
DRAM CONFIGURATION | |
Size | Bank 0 |
8MB | (2) 1M x 36 |
16MB | (2) 2M x 36 |
32MB | (2) 4M x 36 |
64MB | (2) 8M x 36 |
128MB | (2) 16M x 36 |
TERMINATION CONFIGURATION |
Notes: When using differential SCSI, external termination must be used and termination on the controller and daughterboard must be disabled. I.e., all termination jumpers (JP1/1-JP1/5) should be opened. (See User Configurable Settings.) If Narrow SCSI (8-bit) is connected to any channel, the controller must be at one end of the bus with termination enabled (J5) on that channel. If dual mode system, terminate SCSI bus externally. |
MISCELLANEOUS TECHNICAL NOTES |
The DAC960SX controller (which can reside within a DAC9060SXI enclosure) interfaces between the host system and a disk array. The controller is installed with one of several distribution boards: DBX960X-3-UDR, DBX960S-6-FWR and DBX960S-6-UDR. A DBI960SX daughterboard can be installed with the latter two, providing a 3 channel upgrade. A battery backup unit can be installed with all. |

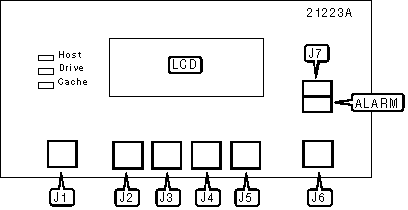

DBX960SXI (ENCLOSURE)
DBX960SXI Front Panel
CONNECTIONS | |||
Function | Location | Function | Location |
ESC key/return to previous screen | J1 | Alarm key/reset audible alarm | ALARM |
Keys defined by Instruction Line (last line of the LCD display menu | J2-J5 | Unidentified | J7 |
Enter key/execute selected functions | J6 | ||
Card Type | Distribution board |
Hard Drives supported | Up to 12 UltraSCSI Wide/Narrow devices |
Floppy drives supported | None |
Data Bus | One host Differential Wide Ultra-SCSI channel |

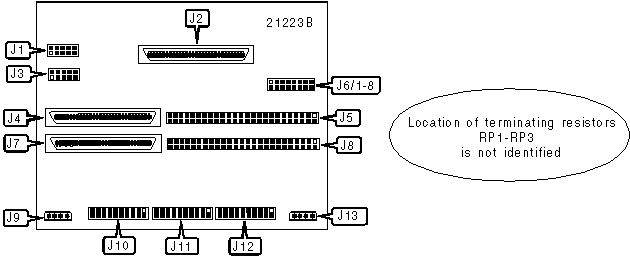

Distribution Board DBX960S-3-UDR
CONNECTIONS | |||
Function | Location | Function | Location |
10-pin serial port - internal | J1 | 50-pin SCSI channel 1 connector - internal | J8 |
68-pin SCSI connector - host channel 0 | J2 | Power connector | J9 |
10-pin connector - dual controller communications port | J3 | 18-pin connector - channel 1 fault indicator | J10 |
68-pin SCSI channel 0 connector - internal | J4 | 18-pin connector - channel 0 fault indicator | J11 |
50-pin SCSI channel 0 connector - internal | J5 | 20-pin connector - AEMI (Array Enclosure Management Interface) | J12 |
68-pin SCSI channel 1 connector - internal | J7 | Power connector | J13 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Factory configured - do not alter | J6/5 | N/A |
| » | Serial port protocol is SLP1 | J6/6 | Open |
Serial port protocol is VT100 | J6/6 | Closed | |
| » | Factory configured - (serial port baud rate is 19.2) | J6/7 | Closed |
| » | Controller is only controller in system or
Controller is primary in two controller system | J6/8 | Closed |
| Controller is secondary in two controller system | J6/8 | Open | |
HOST CHANNEL SCSI ID SELECTION | ||||
SCSI ID | JP6/1 | JP6/2 | JP6/3 | JP6/4 |
0 | Open | Open | Open | Open |
1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open |
3 | Closed | Closed | Open | Open |
4 | Open | Open | Closed | Open |
5 | Closed | Open | Closed | Open |
6 | Open | Closed | Closed | Open |
7 | Closed | Closed | Closed | Open |
8 | Open | Open | Open | Closed |
9 | Closed | Open | Open | Closed |
10 | Open | Closed | Open | Closed |
11 | Closed | Closed | Open | Closed |
12 | Open | Open | Closed | Closed |
13 | Closed | Open | Closed | Closed |
14 | Open | Closed | Closed | Closed |
15 | Closed | Closed | Closed | Closed |
TERMINATION CONFIGURATION |
Note: Differential resistor packs RP1, RP2 and RP3 must be installed to enable Host Channel 0 termination and removed to disable termination. |
Card Type | Distribution board |
Hard Drives supported | Up to 30 UltraSCSI Wide/Narrow devices |
Floppy drives supported | None |
Data Bus | Up to two host Ultra-SCSI Wide channels |

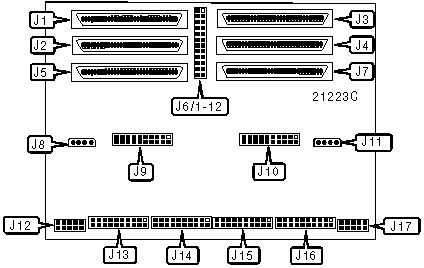

Distribution Board DBX960S-6-FWR
CONNECTIONS | |||
Function | Location | Function | Location |
68-pin SCSI drive channel 2 connector - internal | J1 | 20-pin connector - AEMI (Array Enclosure Management Interface) | J10 |
68-pin SCSI drive channel 0 connector - internal | J2 | Power connector | J11 |
68-pin SCSI drive channel 3 connector - internal | J3 | 10-pin serial port connector | J12 |
68-pin SCSI drive channel 1 connector - internal | J4 | 18-pin connector - drive channel 1 fault indicator | J13 |
68-pin SCSI host channel 1/drive channel 4 - internal | J5 | 18-pin connector - drive channel 0 fault indicator | J14 |
68-pin SCSI host channel 0 connector - internal | J7 | 18-pin connector - drive channel 2 fault indicator | J15 |
Power connector | J8 | 18-pin connector - drive channel 3 fault indicator | J16 |
18-pin connector - drive channel 4 fault indicator | J9 | 10-pin connector - dual controller communications port | J17 |
Note: Host channel 1 and drive channels 2 and 3 are only available if daughterboard DBI960SX is installed. | |||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Factory configured - do not alter | J6/5 | N/A |
| » | Serial port protocol is SLP1 | J6/6 | Open |
Serial port protocol is VT100 | J6/6 | Closed | |
| » | Factory configured - (serial port baud rate is 19.2) | J6/7 | Closed |
| » | Controller is only controller in system or
Controller is primary in two controller system | J6/8 | Closed |
| Controller is secondary in two controller system | J6/8 | Open | |
HOST CHANNEL 0 SCSI ID SELECTION | ||||
SCSI ID | JP6/1 | JP6/2 | JP6/3 | JP6/4 |
0 | Open | Open | Open | Open |
1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open |
3 | Closed | Closed | Open | Open |
4 | Open | Open | Closed | Open |
5 | Closed | Open | Closed | Open |
6 | Open | Closed | Closed | Open |
7 | Closed | Closed | Closed | Open |
8 | Open | Open | Open | Closed |
9 | Closed | Open | Open | Closed |
10 | Open | Closed | Open | Closed |
11 | Closed | Closed | Open | Closed |
12 | Open | Open | Closed | Closed |
13 | Closed | Open | Closed | Closed |
14 | Open | Closed | Closed | Closed |
15 | Closed | Closed | Closed | Closed |
HOST CHANNEL 1 SCSI ID SELECTION | ||||
SCSI ID | J6/9 | J6/10 | J6/11 | J6/12 |
0 | Open | Open | Open | Open |
1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open |
3 | Closed | Closed | Open | Open |
4 | Open | Open | Closed | Open |
5 | Closed | Open | Closed | Open |
6 | Open | Closed | Closed | Open |
7 | Closed | Closed | Closed | Open |
8 | Open | Open | Open | Closed |
9 | Closed | Open | Open | Closed |
10 | Open | Closed | Open | Closed |
11 | Closed | Closed | Open | Closed |
12 | Open | Open | Closed | Closed |
13 | Closed | Open | Closed | Closed |
14 | Open | Closed | Closed | Closed |
15 | Closed | Closed | Closed | Closed |
Card Type | Distribution board |
Hard Drives supported | Up to 24 UltraSCSI Wide/Narrow devices |
Floppy drives supported | None |
Data Bus | Up to two Differential Wide Ultra-SCSI channels |

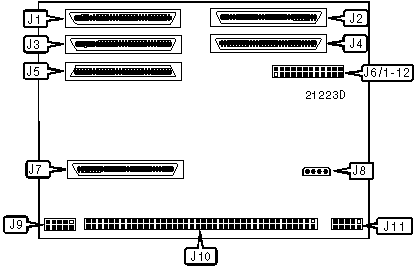

Distribution Board DBX960S-6-UDR
CONNECTIONS | |||
Function | Location | Function | Location |
68-pin SCSI drive channel 2 connector - internal | J1 | 68-pin SCSI host channel 0 connector - internal | J7 |
68-pin SCSI drive channel 3 connector - internal | J2 | Power connector | J8 |
68-pin SCSI drive channel 0 connector - internal | J3 | 10-pin serial port connector | J9 |
68-pin SCSI drive channel 1 connector - internal | J4 | 80-pin connector - fault and status port | J10 |
68-pin SCSI host channel 1 connector - internal | J5 | 10-pin connector - reserved for testing | J11 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Factory configured - do not alter | J6/5 | N/A |
| » | Serial port protocol is SLP1 | J6/6 | Open |
Serial port protocol is VT100 | J6/6 | Closed | |
| » | Factory configured - (serial port baud rate is 19.2) | J6/7 | Closed |
| » | Controller is only controller in system or
Controller is primary in two controller system | J6/8 | Closed |
| Controller is secondary in two controller system | J6/8 | Open | |
HOST CHANNEL 0 SCSI ID SELECTION | ||||
SCSI ID | JP6/1 | JP6/2 | JP6/3 | JP6/4 |
0 | Open | Open | Open | Open |
1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open |
3 | Closed | Closed | Open | Open |
4 | Open | Open | Closed | Open |
5 | Closed | Open | Closed | Open |
6 | Open | Closed | Closed | Open |
7 | Closed | Closed | Closed | Open |
8 | Open | Open | Open | Closed |
9 | Closed | Open | Open | Closed |
10 | Open | Closed | Open | Closed |
11 | Closed | Closed | Open | Closed |
12 | Open | Open | Closed | Closed |
13 | Closed | Open | Closed | Closed |
14 | Open | Closed | Closed | Closed |
15 | Closed | Closed | Closed | Closed |
HOST CHANNEL 1 SCSI ID SELECTION | ||||
SCSI ID | J6/9 | J6/10 | J6/11 | J6/12 |
0 | Open | Open | Open | Open |
1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open |
3 | Closed | Closed | Open | Open |
4 | Open | Open | Closed | Open |
5 | Closed | Open | Closed | Open |
6 | Open | Closed | Closed | Open |
7 | Closed | Closed | Closed | Open |
8 | Open | Open | Open | Closed |
9 | Closed | Open | Open | Closed |
10 | Open | Closed | Open | Closed |
11 | Closed | Closed | Open | Closed |
12 | Open | Open | Closed | Closed |
13 | Closed | Open | Closed | Closed |
14 | Open | Closed | Closed | Closed |
15 | Closed | Closed | Closed | Closed |
Card Type | Daughterboard |
Hard Drives supported | Up to 18 UltraSCSI Wide/Narrow devices |
Floppy drives supported | None |
Data Bus | One Single-ended/Differential Wide Ultra-SCSI channel |

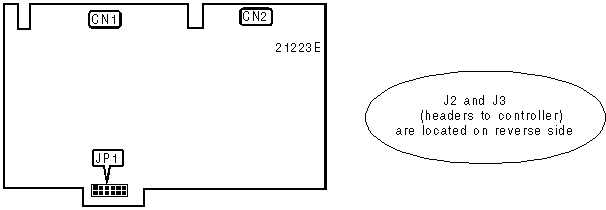

DBI960SX Daughterboard
CONNECTIONS | |||
Function | Location | Function | Location |
Edge connector (drive) | CN1 | DAC960SX controller connector | J2 |
Edge connector (drive) | CN2 | DAC960SX controller connector | J3 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Channel 2 termination enabled | JP1/1 | Closed |
| Channel 2 termination disabled | JP1/1 | Open | |
| » | Channel 3 termination enabled | JP1/2 | Closed |
| Channel 3 termination disabled | JP1/2 | Open | |
| » | Channel 4 termination enabled | JP1/3 | Closed |
| Channel 4 termination disabled | JP1/3 | Open | |
| » | Factory configured - do not alter | JP1/4 | Open |
| » | Factory configured - do not alter | JP1/5 | Open |
TERMINATION CONFIGURATION |
Notes: All termination jumpers (JP1/1-JP1/5) should remain closed on the daughterboard unless operating in dual host mode or using a differential SCSI distribution board. When using differential SCSI, external termination must be used and termination on the controller and daughterboard must be disabled. All termination jumpers (JP1/1-JP1/5 should be opened.) If dual host mode is not used, all JP1 termination jumpers should be closed. |
MISCELLANEOUS TECHNICAL NOTES |
The DBI960SX supports three SCSI channels. Two are drive channels and the third can be configured as either a second host channel or a third drive channel. |

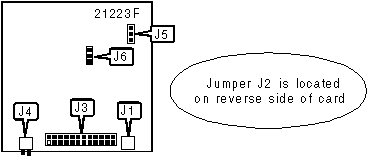

Battery Backup Unit
CONNECTIONS | |||
Function | Location | Function | Location |
3-pin connector - external battery source | J1 | 2-pin connector - VCC source for external LED | J4 |
12-pin connector to controller board | J3 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Backup power source is internal (on-board batteries) | J2 | INT |
Backup power source is external (off-board batteries) | J2 | EXT | |
Note: J2 is located on the reverse side of the Battery Backup card. | |||
REFRESH TIMING SELECTION | ||
Timing | J5 | J6 |
Self-refresh | N/A | SELF |
Normal refresh | NORM | C/R |
Extended refresh (for low power memory | LPWR | C/R |
