BT-958 Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller card
Hard Drives supported	Up to 15 SCSI devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Half-length, full-height card

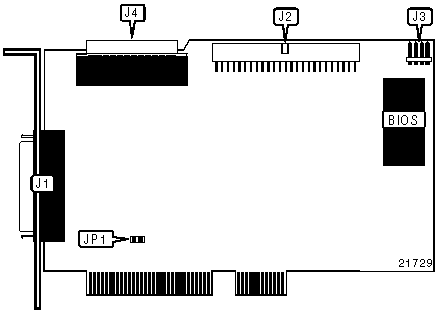

CONNECTIONS
Function	Location	Function	Location
68-pin SCSI connector - external	J1	4-pin connector - drive active LED	J3
50-pin SCSI connector - internal	J2	68-pin SCSI connector - internal	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
