BT-757CD Hard Disk/Floppy Controller Settings and Configuration
MYLEX CORPORATION
BT-757CD
Card Type | Hard drive controller card |
Hard Drives supported | Up to 15 SCSI devices |
Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Data Bus | 32-bit EISA |
Card Size | Half-length, full-height card |

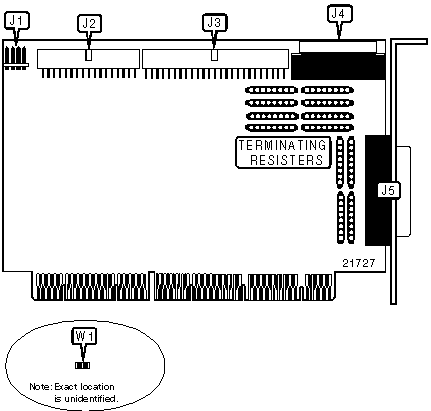

CONNECTIONS | |||
Function | Location | Function | Location |
4-pin connector - drive active LED | J1 | 68-pin SCSI connector - internal | J4 |
34-pin cable connector - floppy drive | J2 | 68-pin SCSI connector - external | J5 |
50-pin SCSI connector - internal | J3 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Floppy drive interface enabled | W1 | Closed |
| Floppy drive interface disabled | W1 | Open | |
TEMINATION SELECTION | |
Terminate function | Terminators installed |
Low byte (bits 0-7) | Lower two pairs of terminators |
High byte (bits 8-15) | Top four pairs of terminators |
Terminate all signals | All terminators installed |
