MCT-SIDEFH Hard Disk/Floppy Controller Settings and Configuration

Data bus:

16-bit ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88 MB drives

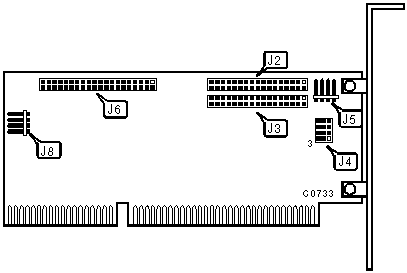

CONNECTIONS

Function

Location

34-pin connector-floppy drive interface (2.88MB)

J2

34-pin connector-floppy drive interface

J3

4-pin connector-floppy drive interface power (3.5 in.)

J5

40-pin connector-IDE(AT) interface

J6

4-pin connector-drive active LED

J8

USER CONFIGURABLE SETTINGS

Function

Location

Setting

» MCT-SIDEFH is primary adapter in system

J4

Pins 5 & 6 closed

MCT-SIDEFH is secondary adapter in system

J4

Pins 4 & 5 closed

BASE MEMORY ADDRESS SELECTION

Address

J4

» CC00-CDFFh

Pins 7 & 8, 10 & 11 closed

D400-D5FFh

Pins 7 & 8, 11 & 12 closed

DC00-DDFFh

Pins 8 & 9, 10 & 11 closed

E000-E1FFh

Pins 8 & 9, 11 & 12 closed
