MCT-IMS+ Hard Disk/Floppy Controller Settings and Configuration
MODULAR CIRCUIT TECHNOLOGY
MCT-IMS+
Data bus: | 16-bit ISA |
Size: | Full-length, full-height card |
Hard drive supported: | Two IDE (AT) Interface drives |
Floppy drives supported: | Four 360KB, 720KB, 1.2MB, or 1.44MB drives |

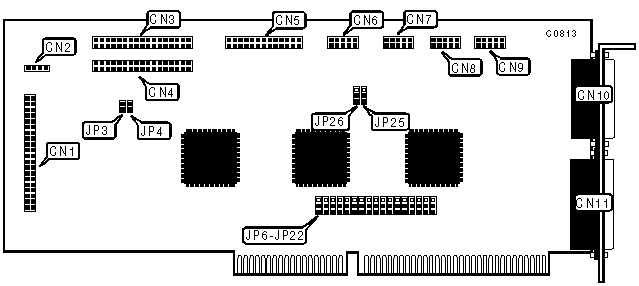

CONNECTIONS | |
Function | Location |
40 pin connector-IDE(AT) interface | CN1 |
4 pin connector-drive active LED | CN2 |
34 pin connector-floppy drive interface | CN3 |
34 pin connector-floppy drive interface | CN4 |
26 pin connector-parallel port(internal) | CN5 |
10 pin connector-serial port 1 | CN6 |
10 pin connector-serial port 2 | CN7 |
10 pin connector-serial port 3 | CN8 |
10 pin connector-serial port 4 | CN9 |
15 pin connector-game port(external) | CN10 |
25 pin connector-parallel port(external) | CN11 |
USER CONFIGURABLE SETTINGS | ||
Function | Location | Setting |
» Floppy drive interface enabled | JP3 | Closed |
Floppy drive interface disabled | JP3 | Open |
» On-card floppy drive interface is primary | JP4 | Open |
On-card floppy drive interface is secondary | JP4 | Closed |
» Serial port 1 address COM1 select | JP6 | Pins 2 & 3 closed |
Serial port 1 address COM2 select | JP6 | Pins 1 & 2 closed |
Serial port 1 disabled | JP6 | All open |
» Serial port 2 address COM2 select | JP7 | Pins 1 & 2 closed |
Serial port 2 address COM1 select | JP7 | Pins 2 & 3 closed |
Serial port 2 disabled | JP7 | All open |
» Serial port 3 address COM3 select | JP8 | Pins 2 & 3 closed |
Serial port 3 address COM4 select | JP8 | Pins 1 & 2 closed |
Serial port 3 disabled | JP8 | All open |
» Serial port 4 address COM4 select | JP9 | Pins 1 & 2 closed |
Serial port 4 address COM3 select | JP9 | Pins 2 & 3 closed |
Serial port 4 disabled | JP9 | All open |
» Parallel port 1 address select LPT1 | JP10 | Pins 2 & 3 closed |
Parallel port 1 address select LPT2 | JP10 | Pins 1 & 2 closed |
Parallel port 1 disabled | JP10 | All open |
» Parallel port 2 address select LPT2 | JP11 | Pins 1 & 2 closed |
Parallel port 2 address select LPT1 | JP11 | Pins 2 & 3 closed |
Parallel port 2 disabled | JP11 | All open |
» Serial port 1 interrupt IRQ4 enabled | JP12 | Pins 2 & 3 closed |
Serial port 1 interrupt IRQ3 enabled | JP12 | Pins 1 & 2 closed |
Serial port 1 disabled | JP12 | All open |
» Serial port 2 interrupt IRQ3 enabled | JP13 | Pins 1 & 2 closed |
Serial port 2 interrupt IRQ4 enabled | JP13 | Pins 2 & 3 closed |
Serial port 2 disabled | JP13 | All open |
» Serial port 3 interrupt IRQ4 enabled | JP14 | Pins 2 & 3 closed |
Serial port 3 interrupt IRQ3 enabled | JP14 | Pins 1 & 2 closed |
Serial port 3 interrupts IRQ3 & IRQ4 disabled | JP14 | All open |
» Serial port 4 interrupt IRQ3 enabled | JP15 | Pins 1 & 2 closed |
Serial port 4 interrupt IRQ4 enabled | JP15 | Pins 2 & 3 closed |
» Serial port 3 interrupts IRQ5 & IRQ9 disabled | JP16 | All open |
Serial port 3 interrupt IRQ5 enabled | JP16 | Pins 2 & 3 closed |
Serial port 3 interrupt IRQ9 enabled | JP16 | Pins 1 & 2 closed |
» Serial port 4 interrupts IRQ5 & IRQ9 disabled | JP17 | All open |
Serial port 4 interrupt IRQ9 enabled | JP17 | Pins 1 & 2 closed |
Serial port 4 interrupt IRQ5 enabled | JP17 | Pins 2 & 3 closed |
» Parallel port 1 interrupt IRQ7 enabled | JP18 | Pins 1 & 2 closed |
Parallel port 1 interrupt IRQ5 enabled | JP18 | Pins 2 & 3 closed |
Parallel port 1 interrupts disabled | JP18 | All open |
» Parallel port 2 interrupt IRQ5 enabled | JP19 | Pins 2 & 3 closed |
Parallel port 2 interrupt IRQ7 enabled | JP19 | Pins 1 & 2 closed |
Parallel port 2 interrupts disabled | JP19 | All open |
» IDE(AT) interface enabled | JP20 | Closed |
IDE(AT) interface disabled | JP20 | Open |
» Serial port 3 interrupts IRQ10 & IRQ11 disabled | JP21 | All open |
Serial port 3 interrupt IRQ11 enabled | JP21 | Pins 1 & 2 closed |
Serial port 3 interrupt IRQ10 enabled | JP21 | Pins 2 & 3 closed |
» Serial port 4 interrupts IRQ12 & IRQ15 disabled | JP22 | All open |
Serial port 4 interrupt IRQ15 enabled | JP22 | Pins 1 & 2 closed |
Serial port 4 interrupt IRQ12 enabled | JP22 | Pins 2 & 3 closed |
» Parallel port 1 bi-directional mode enabled | JP25 | Pins 2 & 3 closed |
Parallel port 1 bi-directional mode disabled | JP25 | Pins 1 & 2 closed |
» Parallel port 2 bi-directional mode enabled | JP26 | Pins 2 & 3 closed |
Parallel port 2 bi-directional mode disabled | JP26 | Pins 1 & 2 closed |
» IDE interface enabled | JP20 | Closed |
IDE interface disabled | JP20 | Open |
» Serial port 3 interrupt IRQ10 & IRQ11 disabled | JP21 | All open |
Serial port 3 interrupt IRQ11 enabled | JP21 | Pins 1 & 2 closed |
Serial port 3 interrupt IRQ10 enabled | JP21 | Pins 2 & 3 closed |
