UN-1081 VL Hard Disk/Floppy Controller Settings and Configuration

MICRO EQUIPMENT CORPORATION

UN-1081 VL

Data bus:
32-bit VL-Bus
Size:
Three/quarter, full-height card
Hard drive supported:
Two IDE (AT) interface drives
Floppy drives supported:
Two 360KB, 720KB, 1.2MB, or 1.44MB drives

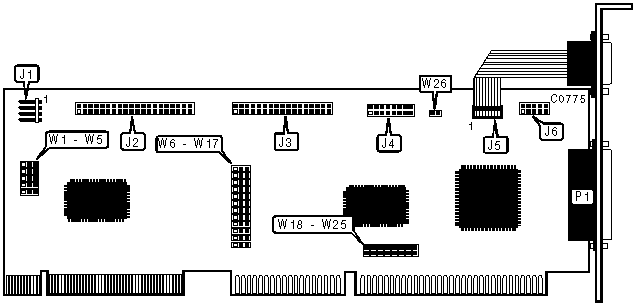

CONNECTIONS
Function
Location
4-pin connector - drive active LED
J1
40-pin IDE (AT) interface connector
J2
34-pin control cable connector - floppy drive
J3
16-pin game port - internal
J4
10-pin serial port - external (via ribbon cable)
J5
10-pin serial port - internal
J6
25-pin parallel port - external
P1

USER CONFIGURABLE SETTINGS
Function
Location
Setting
»
HDD IRQ14 select
W6/pins 1 & 2
closed

HDD IRQ15 select
W6/pins 2 & 3
closed
»
Floppy drive primary address is 3F0h - 3F7h
W7/pins 2 & 3
closed

Floppy drive secondary address is 370h - 377h
W7/pins 1 & 2
closed
»
IDE (AT) primary address is 1F0h - 1F7h, & 3F6h - 3F7h
W8/pins 2 & 3
closed

IDE (AT) secondary address is 170h - 177h, & 376h - 377h
W8/pins 1 & 2
closed
»
IDE (AT) interface enabled
W9/pins 1 & 2
closed

IDE (AT) interface disabled
W9/pins 2 & 3
closed
»
Floppy controller enabled
W10/pins 1 & 2
closed

Floppy controller disabled
W10/pins 2 & 3
closed
»
Printer port unidirectional select
W17/pins 1 & 2
closed

Printer port bidirectional select
W17/pins 2 & 3
open
»
Game port enabled
W26
closed

Game port disabled
W26
open

IDE (AT) TRANSFER RATE CONFIGURATION
Trans. Rate
VL Speed
W1
W2
W3
W4
W5
»
3.9MB/sec
£ 33MHz
1 & 2
2 & 3
2 & 3
2 & 3
1 & 2

3.3MB/sec
£ 33MHz
2 & 3
2 & 3
1 & 2
2 & 3
1 & 2

3.3MB/sec
<33MHz
1 & 2
2 & 3
1 & 2
2 & 3
2 & 3

3.5MB/sec
£ 33MHz
2 & 3
1 & 2
2 & 3
2 & 3
1 & 2

3.6MB/sec
>33MHz
1 & 2
1 & 2
2 & 3
2 & 3
2 & 3

3.7MB/sec
£ 33MHz
2 & 3
1 & 2
1 & 2
2 & 3
1 & 2

3.8MB/sec
>33MHz
1 & 2
1 & 2
1 & 2
2 & 3
2 & 3

4.2MB/sec
£ 33MHz
1 & 2
2 & 3
1 & 2
2 & 3
1 & 2

4.2MB/sec
>33MHz
2 & 3
2 & 3
2 & 3
1 & 2
2 & 3

4.4MB/sec
£ 33MHz
1 & 2
1 & 2
2 & 3
2 & 3
1 & 2

4.5MB/sec
>33MHz
2 & 3
2 & 3
1 & 2
1 & 2
2 & 3

4.8MB/sec
£ 33MHz
1 & 2
1 & 2
1 & 2
2 & 3
1 & 2

5.0MB/sec
>33MHz
2 & 3
1 & 2
2 & 3
1 & 2
2 & 3

5.1MB/sec
£ 33MHz
2 & 3
2 & 3
2 & 3
1 & 2
1 & 2

5.6MB/sec
£ 33MHz
2 & 3
2 & 3
1 & 2
1 & 2
1 & 2

5.6MB/sec
>33MHz
2 & 3
1 & 2
1 & 2
1 & 2
2 & 3

IDE (AT) TRANSFER RATE CONFIGURATION (CON’T)
Trans. Rate
VL Speed
W1
W2
W3
W4
W5
6.1MB/sec
£ 33MHz
2 & 3
1 & 2
2 & 3
1 & 2
1 & 2
6.3MB/sec
>33MHz
1 & 2
2 & 3
2 & 3
1 & 2
2 & 3
6.7MB/sec
£ 33MHz
2 & 3
1 & 2
1 & 2
1 & 2
1 & 2
7.2MB/sec
>33MHz
1 & 2
1 & 2
1 & 2
1 & 2
2 & 3
7.4MB/sec
£ 33MHz
1 & 2
2 & 3
2 & 3
1 & 2
1 & 2
8.3MB/sec
£ 33MHz
1 & 2
1 & 2
1 & 2
1 & 2
1 & 2
Note: Pins designated are in the closed position.

SERIAL PORT 1 CONFIGURATION
COM
W11
W12
»
COM1 (3F8h)
pins 1 & 2 closed
pins 2 & 3 closed

COM3 (3E8h)
pins 2 & 3 closed
pins 1 & 2 closed

COM4 (2E8h)
pins 1 & 2 closed
pins 1 & 2 closed

Disabled
pins 2 & 3 closed
pins 2 & 3 closed

SERIAL PORT 2 CONFIGURATION
COM
W13
W14
»
COM2 (2F8h)
pins 1 & 2 closed
pins 2 & 3 closed

COM3 (3E8h)
pins 1 & 2 closed
pins 1 & 2 closed

COM4 (2E8h)
pins 2 & 3 closed
pins 1 & 2 closed

Disabled
pins 2 & 3 closed
pins 2 & 3 closed

PARALLEL PORT CONFIGURATION
LPT
W15
W16
»
LPT1 (378h)
pins 2 & 3 closed
pins 1 & 2 closed

LPT2 (278h)
pins 1 & 2 closed
pins 2 & 3 closed

LPT3 (3BCh)
pins 1 & 2 closed
pins 1 & 2 closed

Disabled
pins 2 & 3 closed
pins 2 & 3 closed

SERIAL PORT 1 INTERRUPT SELECTION
IRQ
W18
W19
W20
»
4
closed
open
open

3
open
closed
open

5
open
open
closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ
W21
W22
W23
»
3
closed
open
open

4
open
closed
open

5
open
open
closed

PARALLEL PORT INTERRUPT SELECTION
IRQ
W24
W25
»
7
closed
open

5
open
closed
