UN-1063 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

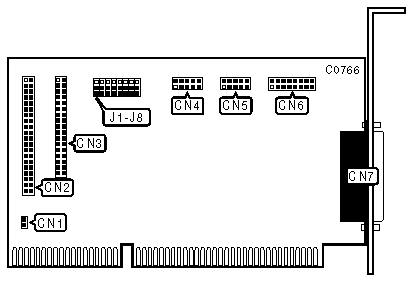

CONNECTIONS
Function	Location
2-pin connector - drive active LED	CN1
40-pin IDE (AT) interface connector	CN2
34-pin control cable connector - floppy drive	CN3
10-pin serial port 1	CN4
10-pin serial port 2	CN5
Game port	CN6
25-pin parallel port	CN7

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Hard drive enabled	J1	pins 1 & 2 closed
	Hard drive disabled	J1	pins 2 & 3 closed
»	Floppy drive enabled	J2	pins 1 & 2 closed
	Floppy drive disabled	J2	pins 2 & 3 closed

SERIAL PORT 1 CONFIGURATION
COM/Address		J5	J6
»	COM1/3F8h	pins 1 & 2 closed	pins 1 & 2 closed
	COM3/3E8h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	n/a

SERIAL PORT 2 CONFIGURATION
COM/Address		J3	J4
»	COM2/2F8h	pins 1 & 2 closed	pins 1 & 2 closed
	COM4/2E8h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	n/a

PARALLEL PORT CONFIGURATION
LPT/Address		J7	J8
»	LPT1/378h	pins 1 & 2 closed	pins 1 & 2 closed
	LPT2/278h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	n/a
