SANDSTAR SERIES Hard Disk/Floppy Controller Settings and Configuration
MAYNARD ELECTRONICS, INC.
SANDSTAR SERIES
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two MFM ST506/412 drives
Floppy drives supported: None
Maximum heads/cyl.: 16 heads and 1024 cylinders

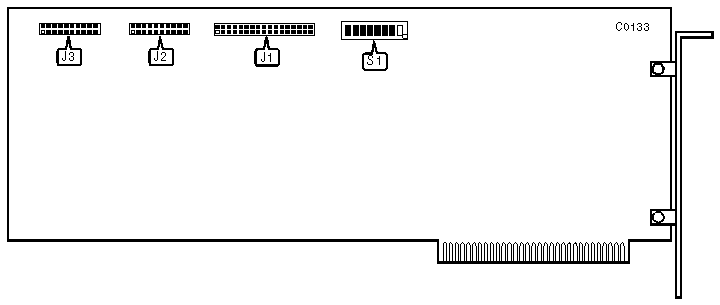

CONNECTIONS | |
Function | Location |
20-pin data cable connector-drive 1 | J1 |
20-pin data cable connector-drive 0 | J2 |
34-pin control cable connector-hard drive | J3 |
DRIVE TYPE - S1 | ||||||
# | Hds. | Cyl. | Switch 1-Drv 0 Switch 5-Drv 1 | Switch 2-Drv 0 Switch 6-Drv 1 | Switch 3-Drv 0 Switch 7-Drv 1 | Switch 4-Drv 0 Switch 8-Drv 1 |
A | 2 | 306 | closed | closed | closed | closed |
B | 4 | 306 | open | closed | closed | closed |
C | 4 | 306 | closed | open | closed | closed |
D | 4 | 320 | open | open | closed | closed |
E | 2 | 612 | closed | closed | open | closed |
F | 6 | 306 | open | closed | open | closed |
G | 4 | 512 | closed | open | open | closed |
H | 3 | 697 | open | open | open | closed |
I | 8 | 306 | closed | closed | closed | open |
J | 4 | 612 | open | closed | closed | open |
K | 4 | 640 | closed | open | closed | open |
L | 6 | 512 | open | open | closed | open |
M | 5 | 697 | closed | closed | open | open |
N | 6 | 612 | open | closed | open | open |
O | 6 | 640 | closed | open | open | open |
P | 8 | 480 | open | open | open | open |
