PM2001B/90, PM2001B/95 Hard Disk/Floppy Controller Settings and Configuration
DISTRIBUTED PROCESSING TECHNOLOGY
PM2001B/90, PM2001B/95
Data bus: 16-bit, ISA
Size: Full-lenght, full-height card
Hard drives supported: Up to seven SCSI devices (Enhanced Mode)
Floppy drives supported: PM2001B/90: None
PM2001B/95: Two 360KB, 720KB, 1.2MB, or 1.44MB
Sector interleave: 1:1

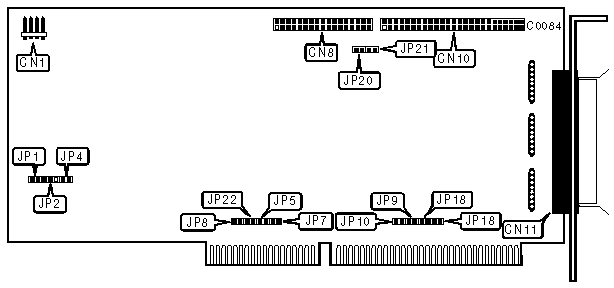

CONNECTIONS | |
Function | Location |
4-pin connector-drive active LED | CN1 |
34-pin data cable connector-floppy drive (PM2001/95 only) | CN8 |
50-pin SCSI connector-internal | CN10 |
50-pin SCSI connector-external | CN11 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive port address 3F0-3F7h | JP5 | open |
Floppy drive port address 370-377h | JP5 | closed | |
| » | BIOS disabled | JP7 | open |
BIOS enabled | JP7 | closed | |
| » | Hard drive port address is 1F0-1F7h | JP17 | open |
Hard drive port address is 170-177h | JP17 | closed | |
| » | BIOS address is C800h | JP18 | open |
BIOS address is D800h | JP18 | closed | |
| » | Floppy drive enabled | JP20 | open |
Floppy drive disabled | JP20 | closed | |
| » | Floppy drive head load disabled | JP21 | open |
Floppy drive head load enabled | JP21 | closed | |
INTERRUPT REQUEST | |||||
IRQ | JP8 | JP9 | JP10 | JP22 | |
Disabled | open | open | open | open | |
| » | 14 | closed | open | open | open |
7 | open | closed | open | open | |
15 | open | open | closed | open | |
12 | open | open | open | closed | |
SCSI ADDRESS | ||||
SCSI I.D. | JP1 | JP2 | JP4 | |
0 | open | open | pins 1 & 2 open | |
1 | closed | open | pins 1 & 2 open | |
2 | open | closed | pins 1 & 2 open | |
3 | closed | closed | pins 1 & 2 open | |
4 | open | open | pins 1 & 2 closed | |
5 | closed | open | pins 1 & 2 closed | |
6 | open | closed | pins 1 & 2 closed | |
| » | 7 | closed | closed | pins 1 & 2 closed |
