SHA-1500P Hard Disk/Floppy Controller Settings and Configuration
DIAMOND FLOWER, INC.
SHA-1500P
Card Type | Hard drive controller card |
Hard Drives supported | Up to 7 SCSI devices |
Floppy drives supported | None |
Data Bus | 32-bit PCI |
Card Size | Half-length, full-height card |

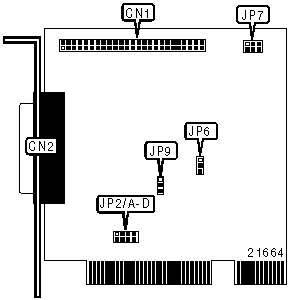

CONNECTIONS | |||
Function | Location | Function | Location |
50-pin SCSI connector - internal | CN1 | 50-pin SCSI connector - external | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Factory configured - do not alter | JP7 | Unidentified |
| » | Auto termination enabled | JP6 | Pins 1 & 2 closed |
| Auto termination disabled | JP6 | Pins 2 & 3 closed | |
| » | BIOS enabled | JP9 | Pins 1 & 2 closed |
| BIOS disabled | JP9 | Pins 2 & 3 closed | |
PCI INTERRUPT SELECTION | ||||
Setting | JP2/A | JP2/B | JP2/C | JP2/D |
INTA | Closed | Open | Open | Open |
INTB | Open | Closed | Open | Open |
INTC | Open | Open | Closed | Open |
INTD | Open | Open | Open | Closed |
