MIO-500VL Hard Disk/Floppy Controller Settings and Configuration

Data bus:	VESA Local bus
Size:	Full-length, full-height card
Hard drive supported:	IDE (AT)
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

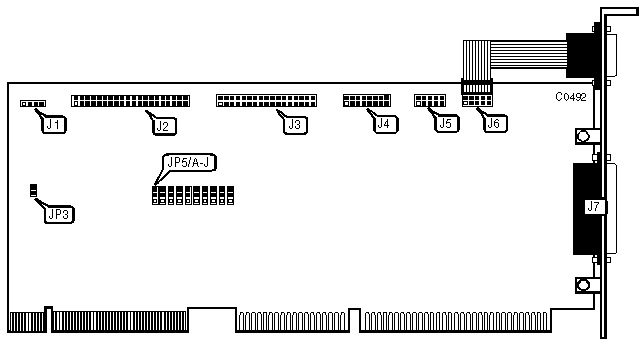

CONNECTIONS
Function	Location	Function	Location
IDE interface LED	J1	Serial port 2	J5
IDE interface	J2	Serial port 1	J6
Floppy drive interface	J3	Parallel port	J7
Game port	J4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE interface enabled	JP3	closed
	IDE interface disabled	JP3	open
»	Serial port 1 enabled	JP5/A	pins 2 & 3 closed
	Serial port 1 disabled	JP5/A	pins 1 & 2 closed
»	Serial port 1 address 3F8h - 3FFh	JP5/B	pins 2 & 3 closed
	Serial port 1 address 3E8h - 3EFh	JP5/B	pins 1 & 2 closed
»	Serial port 2 enabled	JP5/C	pins 2 & 3 closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
	Serial port 2 disabled	JP5/C	pins 1 & 2 closed
»	Serial port 2 address 2F8h - 2FFh	JP5/D	pins 2 & 3 closed
	Serial port 2 address 2E8h - 2EFh	JP5/D	pins 1 & 2 closed
»	Parallel port enabled	JP5/E	pins 2 & 3 closed
	Parallel port disabled	JP5/E	pins 1 & 2 closed
»	Parallel port address 378h - 37Fh	JP5/F	pins 2 & 3 closed
	Parallel port address 278h - 27Fh	JP5/F	pins 1 & 2 closed
»	Parallel port interrupt IRQ7	JP5/G	pins 2 & 3 closed
	Parallel port interrupt IRQ5	JP5/G	pins 1 & 2 closed
»	Floppy drive interface enabled	JP5/H	pins 2 & 3 closed
	Floppy drive interface disabled	JP5/H	pins 1 & 2 closed
»	Game port enabled	JP5/I	pins 2 & 3 closed
	Game port disabled	JP5/I	pins 1 & 2 closed
»	Factory configured - do not alter	JP5/J	pins 2 & 3 closed
