SCSI ARRAY (DSA) VER.1.3 Hard Disk/Floppy Controller Settings and Configuration

Card type	Hard drive controller
Processor	Intel 960CA RISC
Hard Drives supported	Up to 14 SCSI devices
Floppy drives supported	None
Data Bus	32-bit EISA
Card Size	Three-quarter length, full-height card
RAID Levels Supported	0, 1, 4, and 5

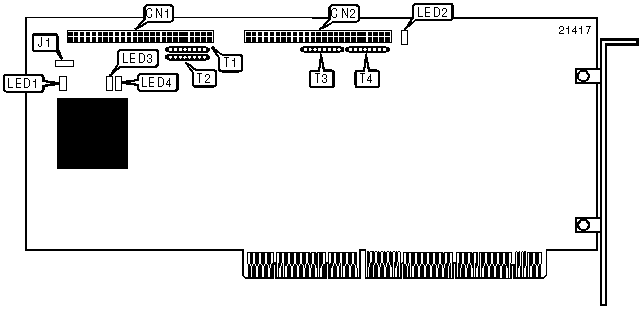

CONNECTIONS
Function	Location	Function	Location
50-pin SCSI connector channel 0 - internal	CN1	Drive active LED	J1
50-pin SCSI connector channel 1- internal	CN2	Terminating resistors	T1-T4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	On-board microprocessor or flash memory chip need to be replaced
LED1	Unidentified	Off	On-board microprocessor and flash memory chip functioning normally
LED2	Unidentified	On	At least one SCSI bus fuse has burned out
LED2	Unidentified	Off	SCSI bus fuses functioning normally
LED3	Unidentified	On	Channel 0 is active
LED3	Unidentified	Off	Channel 0 is not active
LED4	Unidentified	On	Channel 1 is active
LED4	Unidentified	Off	Channel 1 is not active
