DTC3130 (400502-89XX) Hard Disk/Floppy Controller Settings and Configuration

Data Bus	32-bit PCI
Card Size	Half height, half length
Hard Drives Supported	Unidentified
Floppy Drives Supported	None

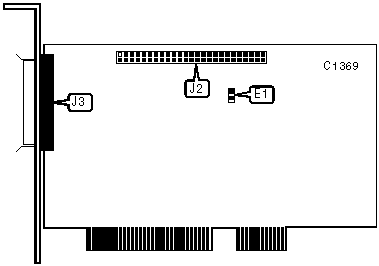

CONNECTIONS
Function	Label	Function	Label
50-pin SCSI connector - internal	J2	50-pin SCSI connector - external	J3

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	SCSI bus termination auto-detected	E1	Closed
	SCSI bus not terminated	E1	Open
