DTC5180C REV. G Hard Disk/Floppy Controller Settings and Configuration
DATA TECHNOLOGY CORPORATION
DTC5180C REV. G
Data bus: | 16-bit, ISA |
Size: | Half-length, full-height card |
Hard drive supported: | Two MFM ST506/412 drives |
Floppy drives supported: | None |

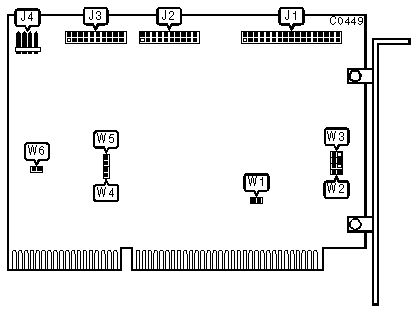

CONNECTIONS | |
Function | Location |
34-pin control cable connector - hard drive | J1 |
20-pin data cable connector-drive 0 | J2 |
20-pin data cable connector-drive 1 | J3 |
4-pin connector-Drive active LED | J4 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive change not driven | W1 | open |
Floppy drive change signal driven low | W1 | closed | |
| » | Hard drive port address is 3F6, 3F7, 1F0-1F7h | W4 & W5 | open |
Hard drive port address is 376, 377, 170-177h | W4 & W5 | closed | |
HARDWARE/FIRMWARE DRIVE SELECT MODE ENABLE | |||
Function | W2 & W3/jumper 1 | W2 & W3/jumper 2 | W6 |
Hardware mode | closed | open | closed |
Firmware mode | open | closed | open |
